Product Details:
Place of Origin: Made In China
Brand Name: Xianfeng
Certification: CE, ISO
Model Number: E60
Payment & Shipping Terms:
Minimum Order Quantity: 3-5pcs
Packaging Details: Carton
Delivery Time: 2-5 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set Per Day

Xianfeng Portable Doppler Ultrasound Machine CFM PDI

Description
Product Name: Doppler Ultrasound Scanner Dynamic Rang: 0~120dB
Display: 15 Inch LED E-zoom: Magnify 2 Times Of Real Time Image
Image Mode: Digital Beam Forming, Tissue Harmonic Imaging Optional Battery: 10Ah,14.4V
Package Size: 470mm(L)* 335mm(W)* 560mm(H) Weight: 12 KG
Focus Position: Dynamic Electron Focusing Type: Color Doppler
Package: Carton Instrument Classification: Class 2
High Light:

CFM Doppler Ultrasound Machine

,

PDI portable doppler ultrasound machine

,

Xianfeng portable doppler ultrasound machine

Full Digital Color Doppler System Instruments Portable Doppler Ultrasound Machine


Xianfeng Portable Doppler Ultrasound Machine CFM PDI 0



Details:


*B/2B/4B/M/CFM/PDI/PW
*THI(Tissue Harmonic Imaging)
*Real-time 2D and Color Dual Mode.
*Real-time 2D and Doppler Double Synchronization.
*Real-time 2D ,Doppler and Color triple synchronization.
*Free hand 3D imaging(Optional)
*Four-dimensional Imaging (4D Optional)
*Automatic measurement and analysis vascular intima
*Extended imaging
*Compound Imaging

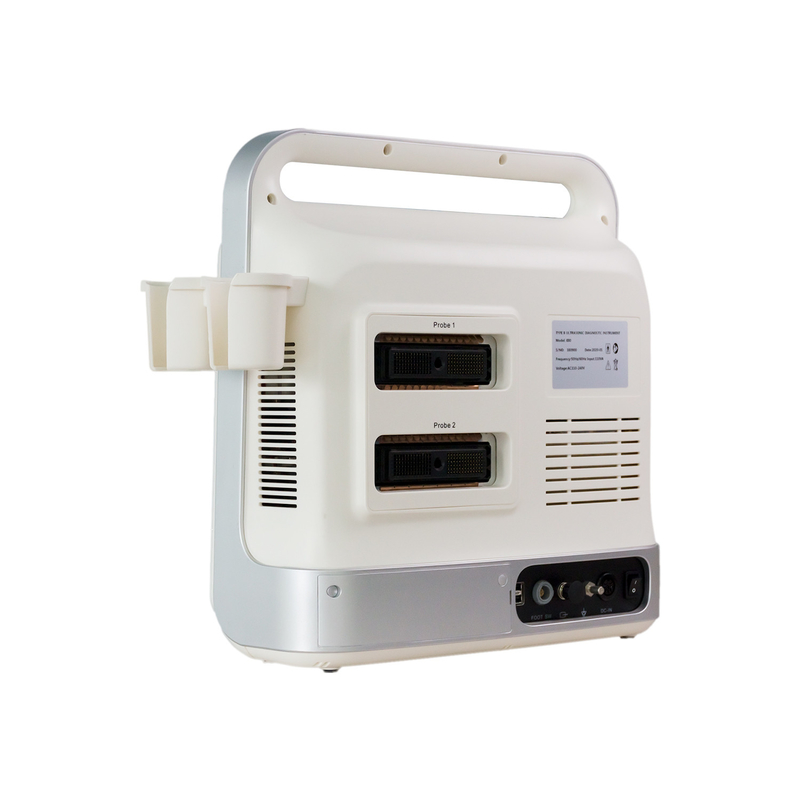

*Probe Interface:Two Active Probe Interface
*Multimedia and peripheral devices:Compact Disc-Recordable,USB portable storage device.
*Digital Printer / Video Printer / Laser Printer / Ink-Jet Printer
*Memory Function:Image Storage,Video Storage,Cineloop(≥300 Fram),Solid disk storage space≥120G.
*Puncture guide line:All kinds of probes can register puncture guide line function.
*The puncture guide line Angle adjustable and can be pre-defined.
*Language:Chinese, English, Russian, Spanish, Portuguese, French.



Ultra Portable,Ultra flexible,Ultra affordable,Ultra durable,Ultra stable


XF3600(E60) is an economical all-digital portable color doppler ultrasound diagnostic system launched by XianFeng company in 2016.

Xianfeng Portable Doppler Ultrasound Machine CFM PDI 1


Xianfeng Portable Doppler Ultrasound Machine CFM PDI 2








Xianfeng Portable Doppler Ultrasound Machine CFM PDI 3




Measurement / Calculation
--General Measurement
--B mode: distance, area (track method, rectangle method, ellipse method), perimeter (track method, rectangle method, ellipse method), volume (double plane method, area length method, ellipsoid method), angle, ratio, stenosis rate.
--M Mode:Slope, ratio, stenosis rate, heart rate, time.
--D Mode:Doppler blood flow measurement, velocity, acceleration, pressure gradient, time, velocity integral, pulsatility index,resistance index.
--Gynecological measurement and analysis
--Uterus, endometrium, ovary, cervix, follicle measurement.
Obstetric measurement and analysis
GS gestational sac, CRL head and hip diameter, LV spine length, BPD biparietal diameter, OFD Occipital bone frontal bone diameter,HC head circumference, TAD transverse abdominal diameter, LVW lateral ventricular posterior angle width, HW cerebral hemisphere width, TCD cerebellar lateral diameter , IOD intraocular diameter, OOD external eye distance, BD binocular distance, APTD DBH, TTD transverse DBH, AC abdominal circumference, APD antecedent abdominal diameter, FTA trunk cross-sectional area, HL humerus length,ULNA ulna length, RAD radial length, FL Length of femur, length of tibia, length of fibula of FIB, multiple calculation of APTDxTTD, length of clavicle of clavicle, dysplastic hip (measured hip angle), etc. The gestational age, fetal weight and expected date of birth can be calculated.
Urology measurement and analysis
Prostate volume, bladder volume, residual urine volume, volume of prostate transitional area, hip angle measurement and assessment (neonatal hip dislocation diagnosis), cross-sectional measurement (V-Slice method).
Small organs and Peripheral Blood Vessel Measurement and Analysis
The main measurement and analysis of vascular cross-sectional area, heart rate, per volume, flow per unit time, ejection time,stenosis rate, average velocity of blood flow, RI resistance index, PI pulsatile index.
Measurement report
Obstetric measurement report, gynecological measurement report, cardiac measurement report, urinalysis and other measurement reports. Automatically store measurement results and generate reports symbol
≥95 kinds of symbol position markers with probe position.Through the intuitive body mark detail interface quickly select the body mar.Text markup, presettable text content.Arrow mark, support multiple arrow marks and adjustable direction

General Specifications
Package Size and weight: 470mm(L)* 335mm(W)* 560mm(H)/ 11 KG
power source: 19V,10A DC IN, Support battery power
Optional battery:10Ah,14.4V.
Battery Operating Time:≥2 hours Standby time: ≥3.5 Hous
Displayer: 15 inch high brightness and high contrast LCD


Xianfeng Portable Doppler Ultrasound Machine CFM PDI 4

Configuration probe
The configuration probe of the instrument showed as below:


Type Scan model Frequency range   radius of curvature Scan width Scan angle
TC60A Convex 2.0MHz~5.0MHz   R60mm _ 60°
TL40A Linear 5.0MHz~12.0MHz   _ L40mm _
TC10A Cavity 5.0MHz~8.0MHz   R10mm _ 150°
TC20A Micro-convex 2.0MHz~4.0MHz   _ _ 90°





Xianfeng Portable Doppler Ultrasound Machine CFM PDI 5



Xianfeng Portable Doppler Ultrasound Machine CFM PDI 6



Xianfeng Portable Doppler Ultrasound Machine CFM PDI 7



Xianfeng Portable Doppler Ultrasound Machine CFM PDI 8



Xianfeng Portable Doppler Ultrasound Machine CFM PDI 9

Xianfeng Portable Doppler Ultrasound Machine CFM PDI 10



We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.
