BPW Mobile Digital Color Doppler Ultrasound System 15in LED Display

BPW Mobile Digital Color Doppler Ultrasound System 15in LED Display

Xianfeng Color doppler system 15in

Mobile digital color doppler ultrasound system

Xianfeng digital ultrasound system BPW

Place of Origin:

Made In China

Brand Name:

Xianfeng

Certification:

CE, ISO

Model Number:

XF7800

Contact Us
Request A Quote
Product Details
Product Name:
Doppler Ultrasound Machine
Gray Scale:
256 Scales
Display Mode:
B,B/B,M,B/M,CFM,CMF/B,PDI,B/PW, Total Eight Mode
Application Mode:
Abdomen, Gynecology, Obstetrics, Superficial Organ, Urologist, Heart And User Defined Model 1-4, Total Ten Models
Depth Display:
≥250mm
B/D Dual-purpose:
Linear Array: B/PWD; Convex Array: B/PWD
Scanning Mode:
Convex Array, Lumen, High-frequency Linear Array, Phased Array
Displayer:
15 Inch LED Color Display
Running Hours:
≥8h
Host Weight:
About 75 Kg
Payment & Shipping Terms
Minimum Order Quantity
3-5pcs
Delivery Time
5-8days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description



Full Digital Color Doppler System Doppler Ultrasound Machine Color Mobile Device



Full Digital Color Doppler System Doppler Ultrasound Machine Color Mobile Device

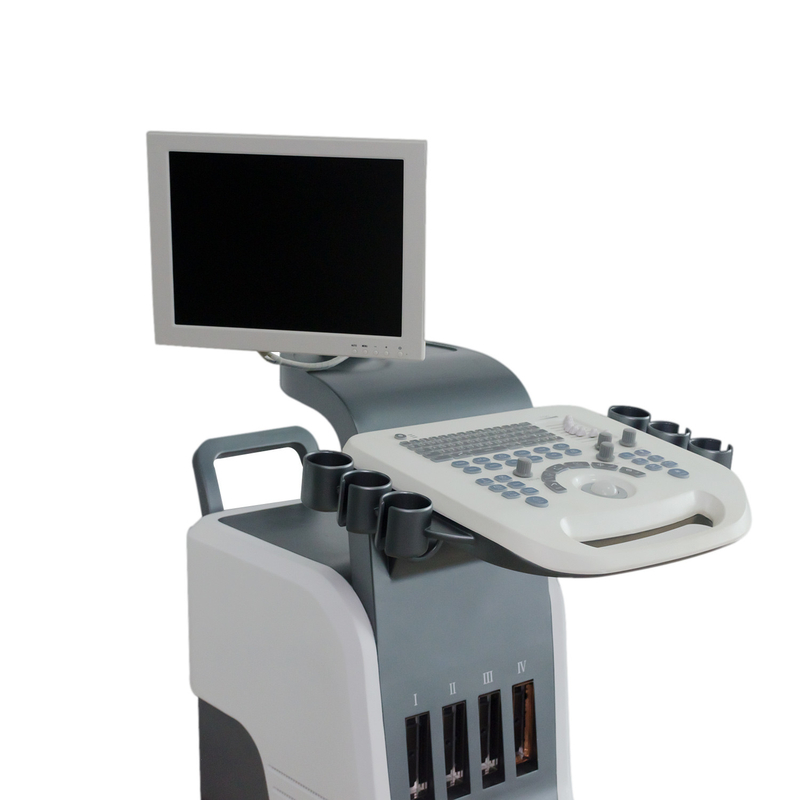

BPW Mobile Digital Color Doppler Ultrasound System 15in LED Display 0



Color Doppler Ultrasound Diagnosis System Series



Xianfeng 7 Series Color Doppler system has a unique shape of elegant atmosphere and the latest generation of application digital color Doppler diagnostic system which can be widely applicable to diagnose abdomen,obstetrics,gynecology,cardiac,mammary gland,musculoskeletal and peripheral vessel.

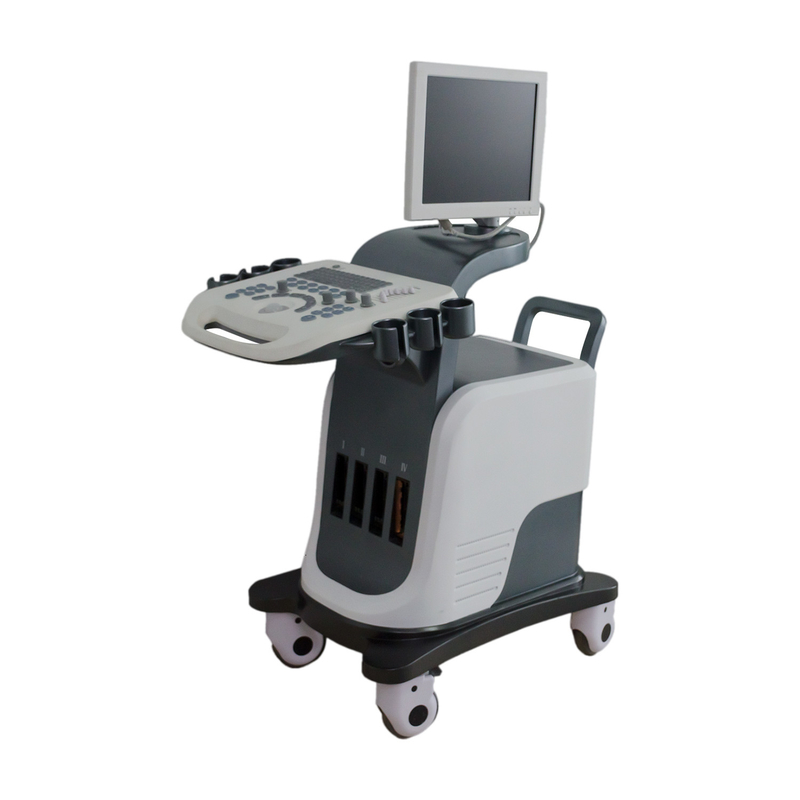

BPW Mobile Digital Color Doppler Ultrasound System 15in LED Display 1



I Functional Features



*B/2B/4B/M/CFM/PDI/PW
*THI(Tissue Harmonic Imaging)
*Real-time 2D and Doppler Double Synchronization.
*Real-time 2D ,Doppler and Color triple synchronization.
*Free hand 3D imaging(Optional)
*Four-dimensional Imaging (4D Optional)
*Automatic measurement and analysis vascular intima
*Compound Imaging
*Probe Interface:Two Active Probe Interface
*Multimedia and peripheral devices:Compact Disc-Recordable,USB portable storage device.



Main Functions


Having a full digital beam forming technology
--Scanning mode: Convex array, lumen, high-frequency linear array, phased array;
--Dynamic range: 0~120dB adjustable;
--Display mode: B,B/B,M,B/M,CFM,CMF/B,PDI,B/PW, total eight mode;
--Application mode: abdomen, gynecology, obstetrics, superficial organ, urologist, heart and user defined model 1-4, total ten models;
--Image mode: digital beam forming, tissue harmonic imaging;
--Acoustic output: Mechanical index and thermal index real-time display;
--Acoustic power:Step is adjustable, real-time display;
--Gray scale: 256 scales;
--Depth display: ≥250mm;
--B/D dual-purpose: linear array: B/PWD; convex array: B/PWD;
--Pseudo color processing: 16 kinds of pseudo color encoding can optional;
--Gain adjusts: 8 segments TGC, B/M/D/C is independently adjustable; TGC curve can show and hide automatically;
--Image magnification: picture in picture zoom in and zoom part function;
--Image processing:Edge enhancement: Multilevel adjustable
--Frame average: Multilevel adjustable
--Line average: Multilevel adjustable
--Focus Optimization: Multilevel adjustable
--Gray Restrain: Multilevel adjustable
--Gamma correction: Multilevel adjustable
--Contrast: Adjustable
--Brightness: Adjustable

--Self-motion optimize function: Built-in multiple check type, according to different inspection organs, preset best image check condition, reduce the adjusting operation keys;
--One-click optimization function: preset several parameters adjusting focus on a button, a key to realize image fast optimization;
--Measurement and calculation: B mode routine measurement:

--Distance, circumference, area, volume, angle, ratio, and stenos rate.
--M mode routine measurement: Heart rate, time, distance, speed, ratio, etc.
--Gynecology measurement: Uterus, cervix, endometrial, ovary, follicular.
--Obstetrics measurement:EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables).
--Cardiology measurement: LV measurement.
--Urology measurement:Prostate volume, displacement volume, bladder capacity, and residual urine output.
--PW measurements: Time, speed, Heart Rate, RI, PI, etc.
--Other measurement: Slice volume measurement, hip joint angle measurement.

--Image storage: Image storage, video storage, cine loop, disk storage capacity≥160G;

--Patient data: Medical record management, report inquiry and printing, image video output( HDD ,USB,Optional DVD-RW),built-in ultrasound workstation;
--Reporting system: automatic report generation system, and can be full screen characters in both Chinese and English editor;
--Output interface: SR323,USB,DICOM interface;



1.3D imaging technology
2. Sound velocity imaging technology optimization
3.Color Doppler Energy(CDE)
4.Pulse Wave Doppler imaging(PW)
5.Color Doppler resolution enhancement
6.Panoramic imaging,space compound imaging
7.Adaptive speckle noise suppression techniques
8.Ergonomic design,All-round display angle adjustment
9.Imaging optimization technology;Compound enhance technology
10.Imaging processing technology
11.Multi-beam parallel processing technology
12.Tissue harmonic imaging
13.Three activated ports,15/17'HR medical monitor
14.One Touch Optimize under different modes



II Others


Displayer: 15 inch LED color display
Running hours: ≥8h;
Input power: ≤320V A;
Host weight: about 75 kg;
Host appearance size:1090x700x1130(lengthx widthx height) (mm3);



III Standard Configuration


1.One host machine
2.15 inch High-resolution display
3.3.5MHZ convex array probe
4.USB port
5.Trolley

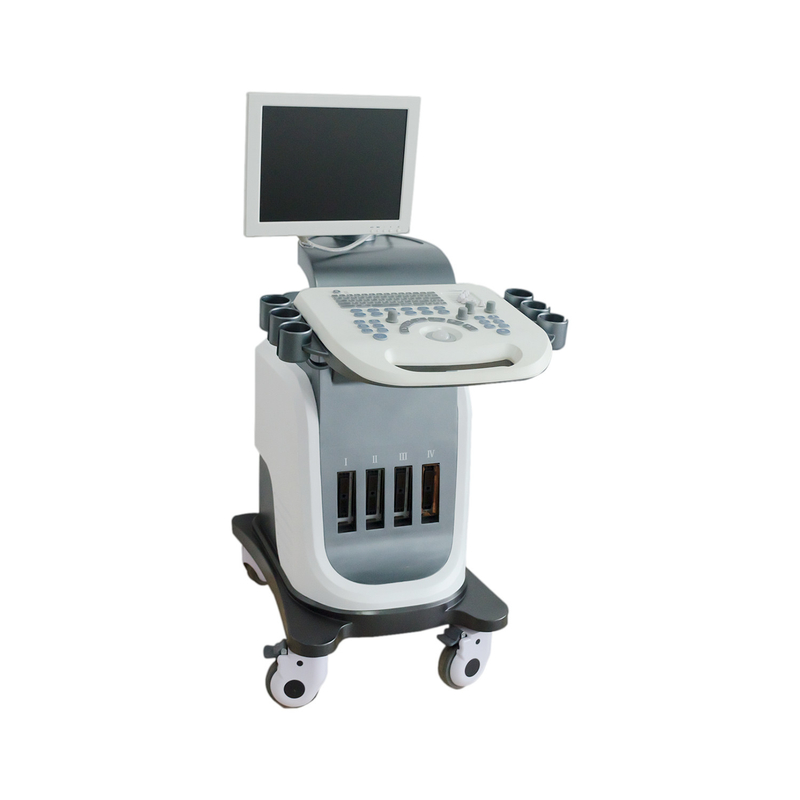

BPW Mobile Digital Color Doppler Ultrasound System 15in LED Display 2

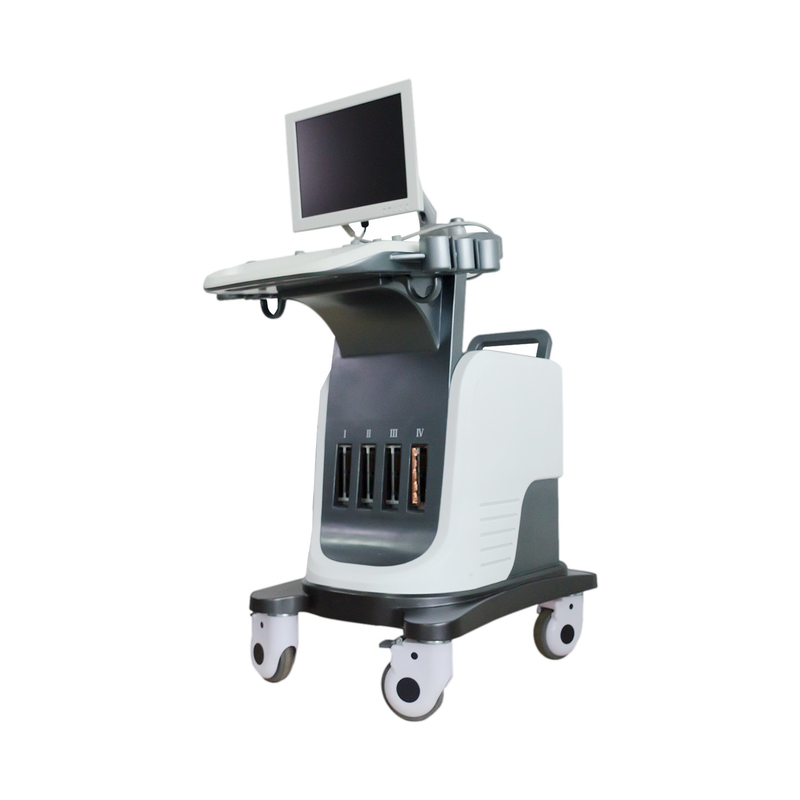

BPW Mobile Digital Color Doppler Ultrasound System 15in LED Display 3

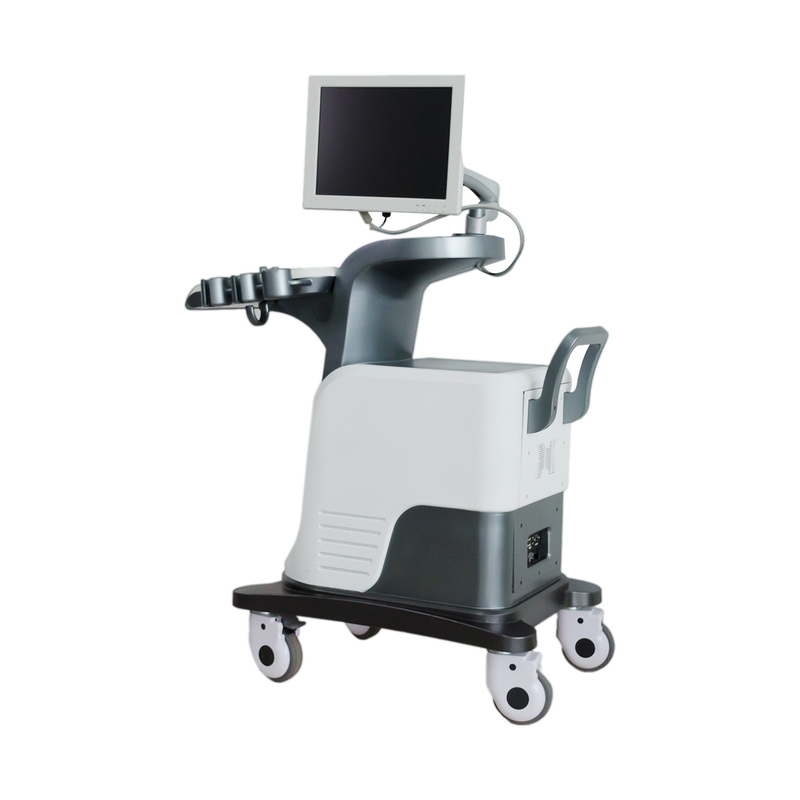

BPW Mobile Digital Color Doppler Ultrasound System 15in LED Display 4



XF7800 Plus Full Digital Color Doppler System



Main Parameter

15〞LED displayer (Optional 1719〞LED).

Scanning mode: Convex, Trans-vaginal, high-frequency linear array,

Micro-convex;4D array;.

Modes: B,B/B,B/M,CFM,CFM/B,PDI,PDI/B,PW.
Big capacity lithium battery.
B/D dual-purpose: linear array: B/PWD; convex array: B/PWD;
Support the six languages.
Four activation connector
Gray scale: 256 levels.
Depth display: ≥250mm;
Dynamic range: 60~280dB adjustable.
Real-time images are shared within the LAN.
Self-motion optimize function.
IMT and PW automatic measurement function.
Image mode: digital beam forming, tissue harmonic imaging.
picture in picture zoom in and zoom part function.
Image storage, video storage, cine loop, disk storage capacity≥240G;
Frequency conversion: 2MHz-12MHz(Depending on the probe)
16 kinds of pseudo color encoding can optional.
E-zoom: magnify 2 times of real time image.
Focus position: dynamic electron focusing.

Application Mode

Abdomen, gynecology, obstetrics, superficial organ, urologist, heart and user defined model 1-4, total ten models;

Output Interface

USB..DICOME. Video port.
USB used to connect USB devices; Video output, connecting video printer or monitor; LAN to connect the network cable;



BPW Mobile Digital Color Doppler Ultrasound System 15in LED Display 5



BPW Mobile Digital Color Doppler Ultrasound System 15in LED Display 6



BPW Mobile Digital Color Doppler Ultrasound System 15in LED Display 7



BPW Mobile Digital Color Doppler Ultrasound System 15in LED Display 8



We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.
