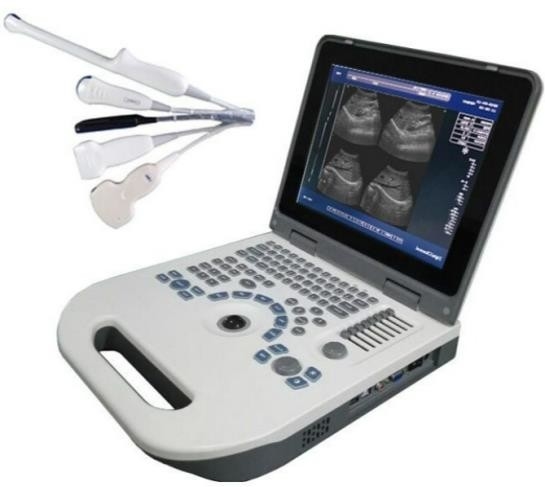

Portable Pregnancy Obstetric Ultrasound Equipment With Linear Probe FDA

Notebook Ultrasonic Diagnostic System Doppler Ultrasound Machine Manufacturer New Launch

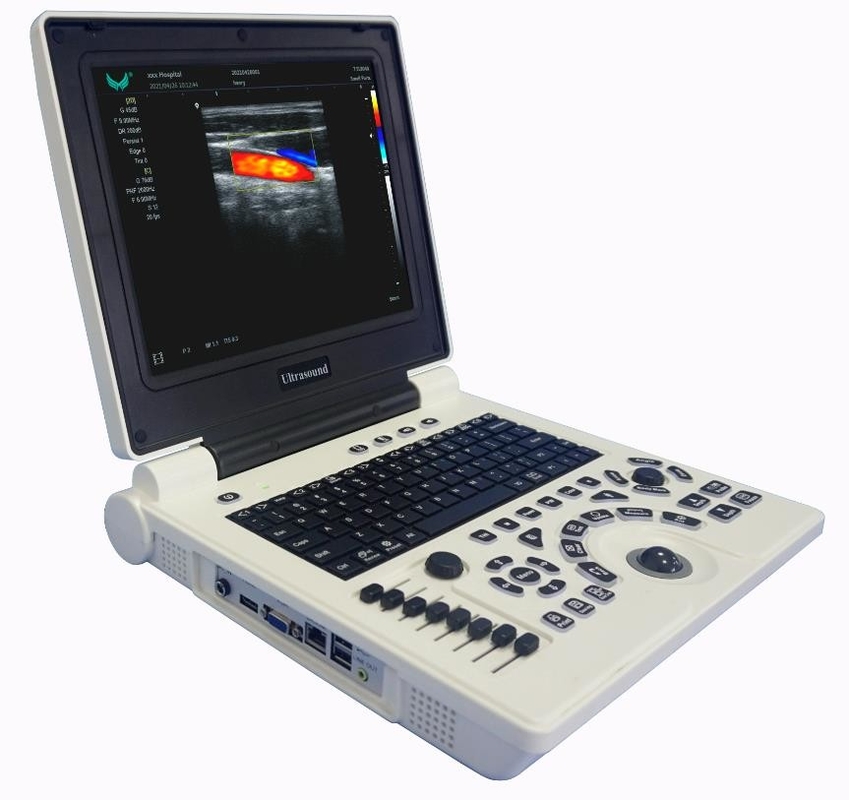

Doppler Imaging Ultrasound Doppler Ultrasound Machine Manufacturer latest new arrival

Ergonomics
Ultra-compact & Ultra-light·Easy to carry
·Keyboard: For easy and quick access
Economic
·The latest platform &more advanced chip-set:brings you
better image quality and features at less cost in a more compact box
·Support PC printer reduce investment & day to day paper cost

Scanning mode: electron scanning
Probe configuration: T35R60GZ convex array probe (standard); T65R13GZ type cavity probe (user selected)
Display modes:
3T35R60GZ convex array probe: B, B/B, 4B, B+M, M;
T65R13GZ type cavity probe: B;
Image multiplying factor:
T35R60GZ convex array probe, Type B, real-time state:×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0;×0.8, ×2.0 (display penetration depth);
T65R13GZ type cavity probe: ×0.8, ×1.0, ×1.2, ×1.5.
M type speed: M type scanning has eight kinds of speed can be selected.
Chinese and English translation: Transformation in both English and Chinese in interface.
Zoom: Local x 2.0 magnification rate
Dynamic range: 0~120dB adjustable.
Frequency:
T35R60GZ convex array probe real-time scan:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion;
T65R13GZ type cavity probe real-time scan: 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz five periods of frequency conversion.
Focus position:
Send: 1, 2, 3 and 4-segments dynamic electron focusing; when 1,2-segments focus,the focus can be moved.
Receive: receive real-time dynamic focus by focus
Measuring function: Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, HC,AC), expected date of confinement and fetus weight, etc.
Annotation function: hospital name, patient’s name, age and gender;64 body marks (with probe’s position); Full-screen character annotation; Real-time clock display;
Puncture guide: 3.5MHz convex array probe can display puncture guide line in B mode.
Gain control: 8 segments TGC and overall gain can be adjusted respectively.
Image polarity: left and right flip, black and white flip, up and down flip.
Permanent storage: ≧128 images.
Image playback: series playback or check one by one.
Image processing: γ correction, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
USB interface: store image only for U disk.
