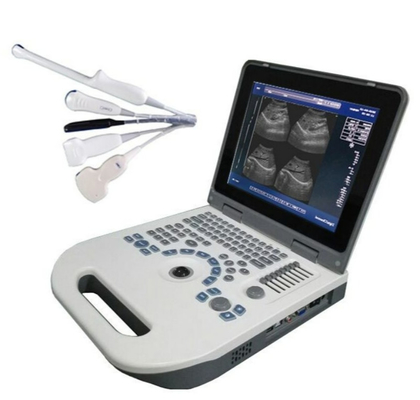

ISO Electron Scan Notebook USG Scan Machine For Obstetrics And Gynecology

ISO Electron Scan Notebook USG Scan Machine For Obstetrics And Gynecology

Notebook USG Scan Machine

Obstetrics USG Scan Machine

ISO Electron Scan Ultrasound Machine

Contact Us
Request A Quote
Product Details
Product Name:
Laptop Ultrasound USG Scanner
Application:
Hospital、clinic
Display Mode:
B、B/B、4B、B/M、M
Key Board:
Standard Key Board And Backlight Key
Probe Socket:
Dual Probe Sockets
Display:
LED Screen
Battery:
Li-ion Rechargeable
Measuring Function:
Distance,, Volume, Heart Rate,etc.
Payment & Shipping Terms
Minimum Order Quantity
5pcs
Product Description

ISO Electron Scan Notebook USG Scan Machine For Obstetrics And Gynecology

Main Functions
Scanning mode electron scanning
Probe configuration T35R60GZ convex array probe (standard); T65R13GZ type cavity probe (user selected)
Display modes
3T35R60GZ convex array probe B, B/B, 4B, B+M, M;
T65R13GZ type cavity probe B;
Image multiplying factor
T35R60GZ convex array probe, Type B, real-time state ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0;×0.8, ×2.0 (display penetration depth);
T65R13GZ type cavity probe ×0.8, ×1.0, ×1.2, ×1.5.
M type speed M type scanning has eight kinds of speed can be selected.
Chinese and English translation Transformation in both English and Chinese in interface.
Zoom Local x 2.0 magnification rate
Dynamic range 0~120dB adjustable.
Frequency
T35R60GZ convex array probe real-time scan 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion;
T65R13GZ type cavity probe real-time scan 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz five periods of frequency conversion.
Focus position
Send 1, 2, 3 and 4-segments dynamic electron focusing; when 1,2-segments focus,the focus can be moved.
Receive receive real-time dynamic focus by focus
Measuring function Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, HC,AC), expected date of confinement and fetus weight, etc.
Annotation function hospital name, patient’s name, age and gender;64 body marks (with probe’s position); Full-screen character annotation; Real-time clock display;
Puncture guide 3.5MHz convex array probe can display puncture guide line in B mode.
Gain control 8 segments TGC and overall gain can be adjusted respectively.
Image polarity left and right flip, black and white flip, up and down flip.
Permanent storage ≧128 images.
Image playback series playback or check one by one.
Image processing γ correction, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
USB interface store image only for U disk.



ISO Electron Scan Notebook USG Scan Machine For Obstetrics And Gynecology 2

  Laptop thin and light design;
12.1〞LCD Displayer;
Windows 7 operation system;
Standard key board and backlight key;
3200mAh recharge lithium battery.
Main Parameter Display modes: B, B/B, 4B, B+M, PW;
Gray scale: 256 levels,
5 levels image optimization;
THI imaging technology;
Rich image processing technology, for instance frames average, view angle, edge
enhance, Gamma ,etc
CN,EN,RUS,POR,ESP,FR,DE 7 kinds languages;
Display penetration depth 1~400mm;
Dynamic range: 80~280dB adjustable;
Application mode OB,GYN, Superficial organ, Urology, Pediatric, Cardiac etc;
Preset the parameter depend on scanning organ;
IMT automatic measurement and display results;
15 kinds of pseudo color;
Support guide line of biopsy puncture;
Built-in 60G soild state drive ,make the storage safer and more reliable;
Support frequency conversion range: 2MHz~10MHz (depend on probe type);
Built-in editable report page ;
Gain control: 8 segments TGC and overall gain can be adjusted respectively;
Focus position: dynamic electron focusing.
Interface ports 2 activated probe connector
Interface Port: HDMI, VGA, DICOM, USB, Line Out.
