TGC Control Notebook Ultrasound Scanner For Pregnancy Home Use

TGC Control Notebook Ultrasound Scanner For Pregnancy Home Use

Xianfeng TGC notebook ultrasound scanner

XF50A TGC ultrasound pregnancy home use

XF50A TGC ultrasound machine for pregnancy home use

Place of Origin:

Made In China

Brand Name:

Xianfeng

Certification:

CE, ISO

Model Number:

XF50A

Contact Us
Request A Quote
Product Details
Product Name:
Laptop Ultrasound Machine
Type:
B/W Ultrasound
Application:
OB And GYN
Display:
LED Screen
Display Mode:
B、B/B、4B、B/M、M
Battery:
Li-Battery
Key Board:
Standard Key Board With Backlight Key
Item:
Easy Operation Design
Probe Socket:
Two Probe Sockets
Output Interface:
PAL,SVGA Video Output,USB
Model:
Portable Ultrasound Machine
Payment & Shipping Terms
Minimum Order Quantity
3-5pcs
Price
1000USD
Packaging Details
Carton
Delivery Time
5-8days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Set Per Day
Product Description

Portable Ultrasound Equipment For Human Use





TGC Control Notebook Ultrasound Scanner For Pregnancy Home Use 0

Standard Parameters:


1.  Big memory , cine loop real time and 128 pcs permanent storage.
2.  Radium Caved buttons and Silicon backlit buttons to be chosen;
3.  Intelligent fluorescence trackball.
4.  8-segment TGC control. Overall Gain control
5.  2 USB ports on machine , Upgraded and expandable printer function;
6.  2probe connectors. Probe automatic identfication;
7.  2SVGA video outputs and 21 PAL video outputs offer connection to video image recorder and image workstation. etc.
8.  Report page is generated automatically.





Standerd Package List :
1. host machine
2. convex array probe:F=3.5MHZ
3. One power adapter
4. 11.1 V 3000MAH Li battery
5. USB port








TGC Control Notebook Ultrasound Scanner For Pregnancy Home Use 1

TGC Control Notebook Ultrasound Scanner For Pregnancy Home Use 2

TGC Control Notebook Ultrasound Scanner For Pregnancy Home Use 3

TGC Control Notebook Ultrasound Scanner For Pregnancy Home Use 4

TGC Control Notebook Ultrasound Scanner For Pregnancy Home Use 5



TGC Control Notebook Ultrasound Scanner For Pregnancy Home Use 6



Model Portable Ultrasound Equipment For Human Use
Display Modes 3.5MHz/R60 convex array probe: B,B/B,4B,B+M,M
6.5MHz/R13 Dimpling array probe: B
7.5 MHz/L40 Line array probe: B
Image Mutiplying Factor

3.5MHz/R60 convex array probe:

x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0( 6modes)

x0.8, x2.0 (display penetration depth)

6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
E-zoom magnify 2 times of real time image
Dynamic Range 0~120dB ajustable
Focus Position 1,2,3 and 4-segments focusing
Image Processing γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.

Frequency Conversion 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion
frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe
Measuring Function Distance,circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD,GS,CRL,FL,HL,OFD,TTD,AC), expected date of confinement and fetus weight, etc.
Annotation Function hospital name, patient’s name, age and gender 64 body marks (with probe’s position);
Full-screen character annotation; Real-time clock display
Puncture Guide  convex array probe can display puncture guide line in B mode
Gain Control 8 segments TGC and overall gain can be adjusted respectively
Image Polarity left and right flip, black and white flip, up and down flip
Capacity Cine Loop real time display 256 consecutive images which are memorized successively
Image Playback series playback or check one by one
Permanent Storage 128 images

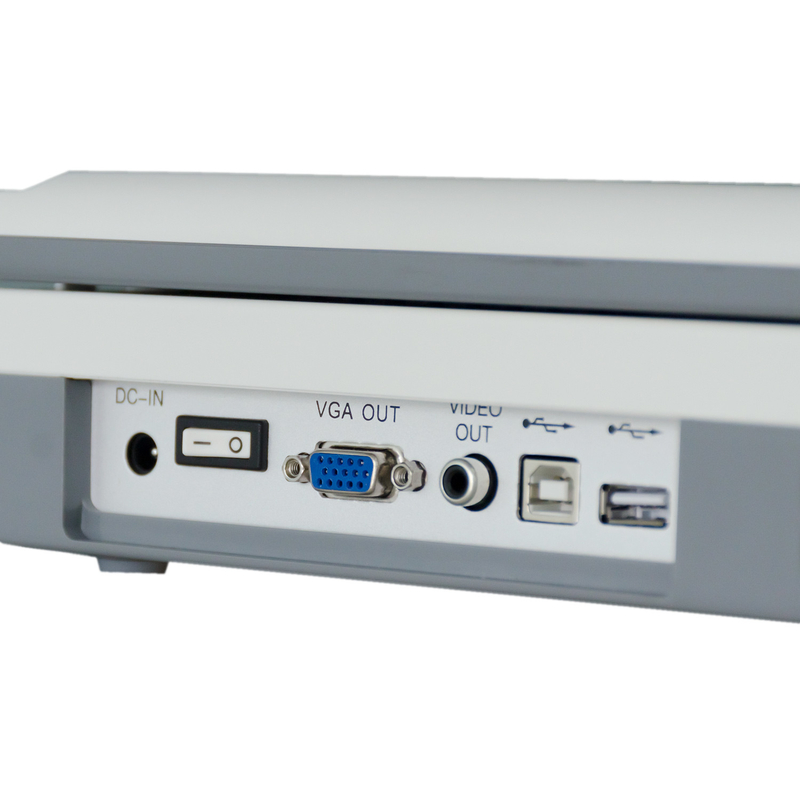

Output Interface VGA video output offers connection to SVGA color display
PAL video output offers connection to PAL display and printer
video image recorder and image workstation, etc
USB Port Offers storing images in USB flash disk



TGC Control Notebook Ultrasound Scanner For Pregnancy Home Use 7



TGC Control Notebook Ultrasound Scanner For Pregnancy Home Use 8



TGC Control Notebook Ultrasound Scanner For Pregnancy Home Use 9



TGC Control Notebook Ultrasound Scanner For Pregnancy Home Use 10

TGC Control Notebook Ultrasound Scanner For Pregnancy Home Use 11



We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.
