Place of Origin:
Made In China
Brand Name:
Xianfeng
Certification:
CE, ISO，FSC
Model Number:
XF30

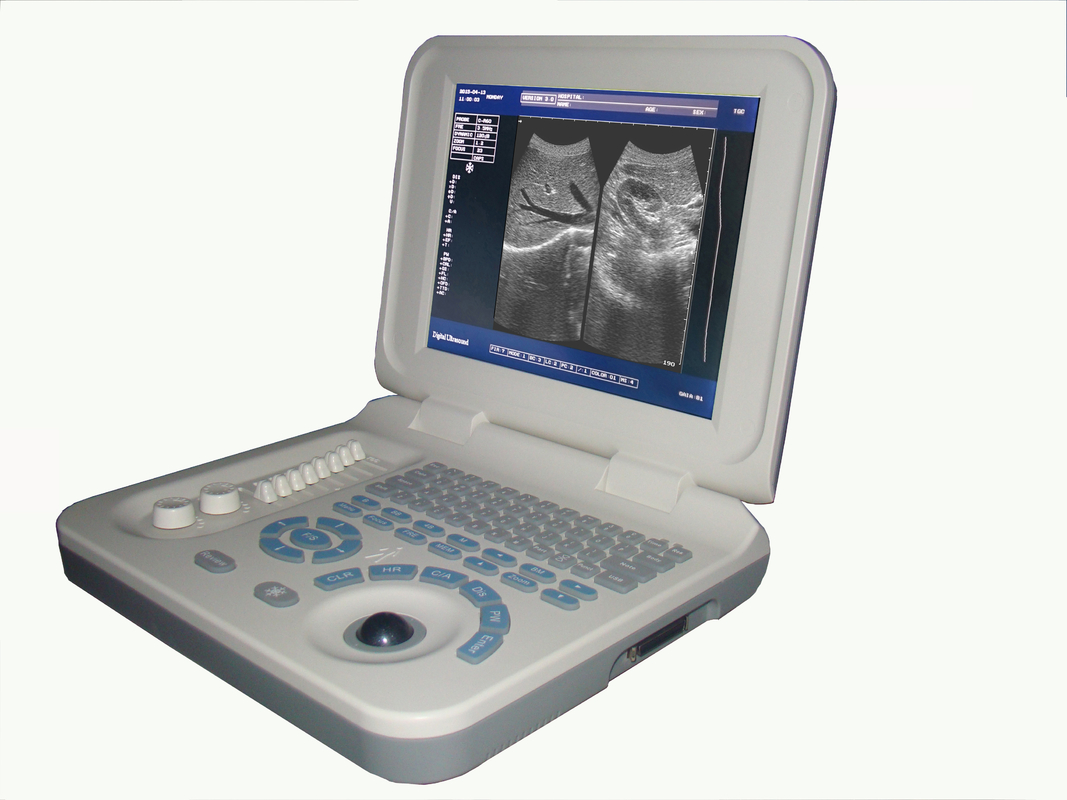

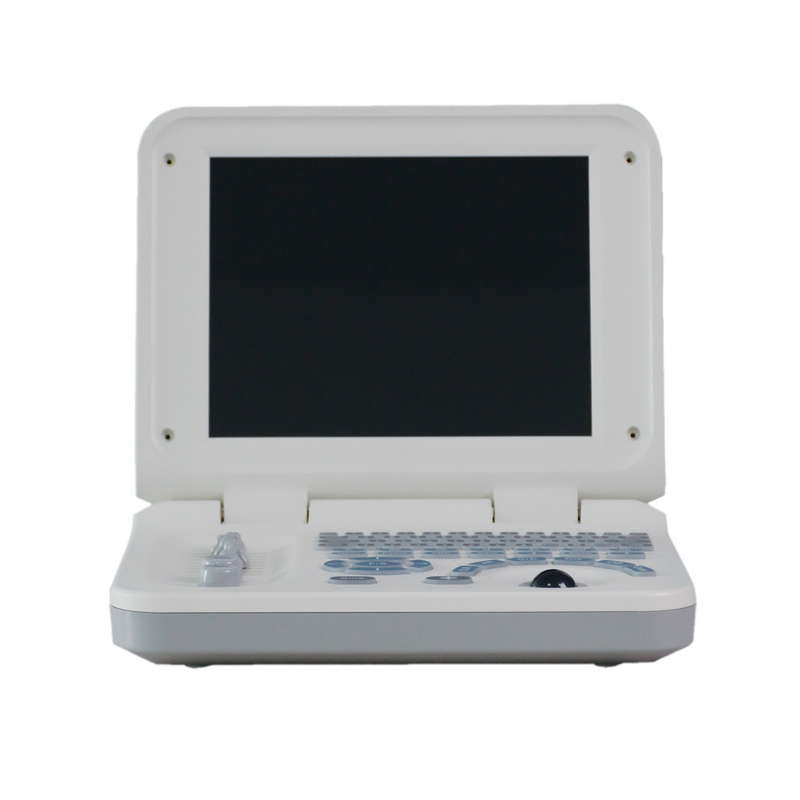

Economic ultrasound imaging machine for pregnancy
Economic Digital Ultrasound Machine For Pregnancy & Medical Ultrasound Machine
| Display mode | B;B/B;4B;B+M;M |
| Display size | 10.4inch LED displayer |
| Image multiplying factor |
3.5MHz/R60 convex array probe: x0.8;x1.0,x1.2,x1.5,x1.8, x2.0( 6 modes) x0.8;x1.0(display penetration depth) |
| E-zoom | Magnify 2 times of real time image |
| Dynamic range | 0~120db adjustable |
| Focus position | Dynamic electron focusing |
|
Image proessing
|
8γcorrections, Point correlation, Frame correlation, Line correlation,
Digital filting,Digital edge enhancement and pseudo color processing
According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
|
| Gray scale | 256 levels |
| Frequency conversion | 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0Mhz 5 periods of frequency conversion Frequency range applies 5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz |
| Measuring function | Distance, circumference/area(method of ellipse,method of loci) ,volume,heart rate, gestational weeks, expected date of confinement and fetus weight,etc. |
| Annotation function | Hospital name;patient‘s name, age and gender; Body marks;Full-screen character annotation;Real-time clock display |
| Puncture guide | 3.5MHz convex array probe can display punture guide in B mode |
| Gain control | 8 segments TGC and overall gain can be adjusted respectively |
| Image polarity | Left and right flip; up and down |
| Capacity cine loop | Real time display 256 consecutive images which are moemorized successively |
| Image playback | Series playback or check one by one |
| Standard configuration | Ultrasound machine with 3.5Mhz convex probe and power adapter;builtin-battery; manual, warranty card |
Functional Characteristics
Real-time dynamic aperture imaging (RDA);
full digital dynamic receive focusing (DRF);
8 segments TGC; dynamic digital filtering;
dynamic digital filtering;
image enhancement;
line correlation, frame correlation, point correlation, linear interpolation
display modes as B, B/B, 4B, B+M and M,
image multiplying factors of ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 under the B mode;
with 128 a large memory and offers permanent storage, cine loop in real time;
256 images available after diagnosis of real-time playback or by image viewer,
measurements of distance, area, circumference, HR, gestational weeks(BPD,GS,CRL,FL,HC,OFD,TTD,AC )
Standard Configuration
We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.
