|Product Name:||Veterinary Ultrasound Machine||Type:||Doppler Ultrasound Equipment|
|Portable:||Notebook||Display:||12.1 Inch LED Screen|
|Display Mode:||B、B/B、4B、B/M、M||Battery:||Chargable Lithium Batteray >3 Hours|
|Key Board:||Standard Key Board And Backlight Key||Output:||2USB,Video,SVGA|
|Probe Socket:||Dual Probe Sockets||Output Interface:||PAL Video Output,SVGA Video Output,USB|
|Battery Working:||2 Hours|
B/W portable laptop ultrasound machine,
Li-battery laptop ultrasound machine ISO,
Li-battery ultrasound machine veterinary

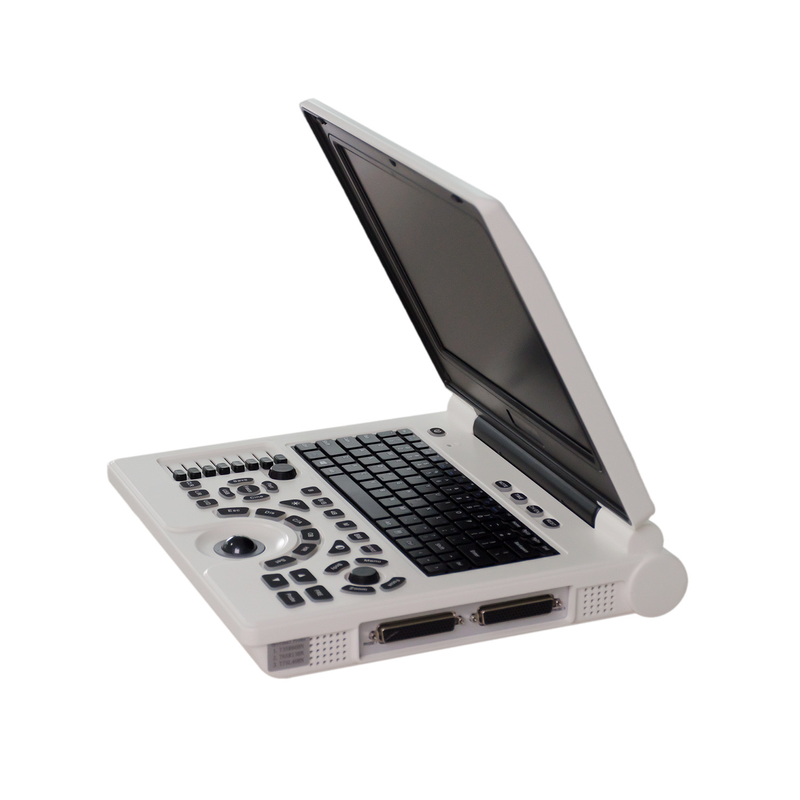

B/W Portable Veterinary Ultrasound Machine Li Battery For Clinic And Hospital
This Ultrasonic diagnostic instrument using 3.5 MHz electronic convex array probe, adopts full digital beam former(DBF); real-time dynamic aperture imaging (RDA); full digital dynamic receive focusing (DRF); frequency conversion; 8 segments TGC; dynamic digital filtering; dynamic digital filtering; image enhancement; line correlation, frame correlation, point correlation, linear interpolation and many other image processing technology, etc.; display modes as B, B/B, 4B, B+M and M, image multiplying factors of X 0.8, X 1.0, X 1.2, X 1.5, X1.8, X 2.0 under the B mode; with 128 a large memory and offers permanent storage, cine loop in real time; 256 images available after diagnosis of real-time playback or by image viewer, has measurements of distance, area, circumference, heart rate, gestational weeks(BPD, GS, CRL, FL, HC, OFD, TTD, AC 8 measurement kinds) and so on; Chinese and English transformation; pseudo color processing; real-time clock; serial number of medical record; many note functions as full-screen character noting; adopts large scale integrated circuit FPGA, MSF, mass memory, surface mounting technology and so on.
1. Mass memory , cine loop and permanent storage.
2. Radium Caved buttons and Silicon backlit buttons to be chosen;
3. Intelligent fluorescence trackball.
4. 8-segment TGC control. Overall Gain control
5. 2 USB ports , Upgraded and expandable printer function;
6. 2probe connectors. Probe automatic identfication;
7. 2SVGA video outputs and 21 PAL video outputs offer connection to video image recorder and image workstation. etc.
8. Report page is generated automatically.
9. According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
1. One host machine
2. One convex array probe:F=3.5MHZ
3. One power adapter
4. 11.1 V 3000MAH Li battery
5. USB port

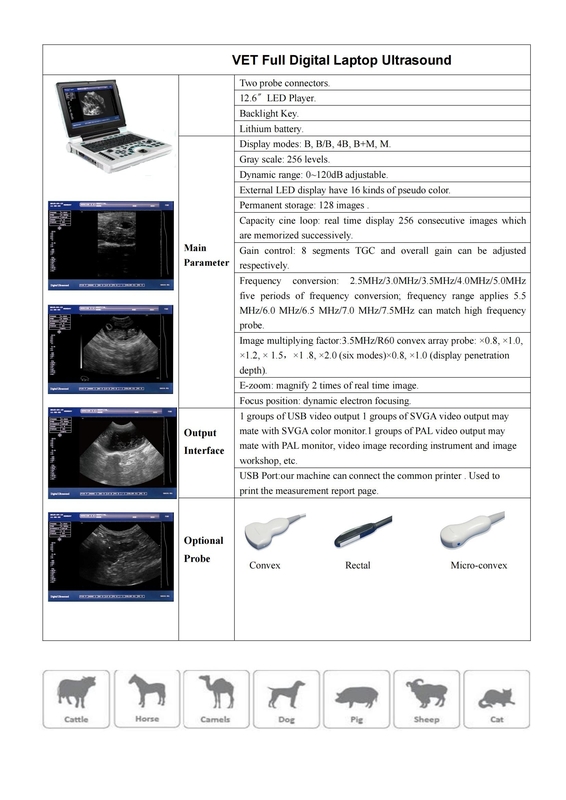

XF30B Notebook Ultrasound Scanner
XF30B Notebook Ultrasound Scanner
|Display Modes||3.5MHz/R60 convex array probe: B,B/B,4B,B+M,M|
|6.5MHz/R13 Dimpling array probe: B|
|7.5 MHz/L40 Line array probe: B|
|Image Mutiplying Factor||
3.5MHz/R60 convex array probe:
x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0 ( 6modes)
x0.8, x2.0 (display penetration depth)
|6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)|
|7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)|
|E-zoom||magnify 2 times of real time image|
|Dynamic Range||0~120dB ajustable|
|Focus Position||1,2,3 and 4-segments dynamic electron focusing|
γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
According to the user’s pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
|Frequency Conversion||2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion|
|frequency range applies||5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe|
Distance,circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD,GS,CRL,FL,HL,OFD,TTD,AC), expected date of confinement and fetus weight, etc.
hospital name, patient’s name, age and gender 64 body marks (with probe’s position);Full-screen character annotation; Real-time clock display
|Puncture Guide||3.5MHz convex array probe can display puncture guide line in B mode|
|Gain Control||8 segments TGC and overall gain can be adjusted respectively|
|Image Polarity||left and right flip, black and white flip, up and down flip|
|Capacity Cine Loop||real time display 256 consecutive images which are memorized successively|
|Image Playback||series playback or check one by one|
|Permanent Storage||128 images|
VGA video output offers connection to SVGA color display PAL video output offers connection to PAL display and printer video image recorder and image workstation, etc
|USB Port||Offers storing images in USB flash disk|
