Product Details:
|
| Product Name: | Portable Ultrasound Machine | Type: | Doppler Ultrasound Equipment |
|---|---|---|---|
| Application: | GYN | Display: | LED Screen |
| Display Mode: | B、B/B、4B、B/M、M | Battery: | Li-ion |
| Key Board: | International Key Board And Backlight Key | Item: | Basic Black And White Ultrasound System |
| Probe Socket: | Dual Probe Sockets | Output Interface: | PAL Video Output,SVGA Video Output,USB |
| High Light: | 12.1in BM digital ultrasound machines,BB human ultrasound machine 12.1in,ultrasound machine black and white BB 12.1in |
||

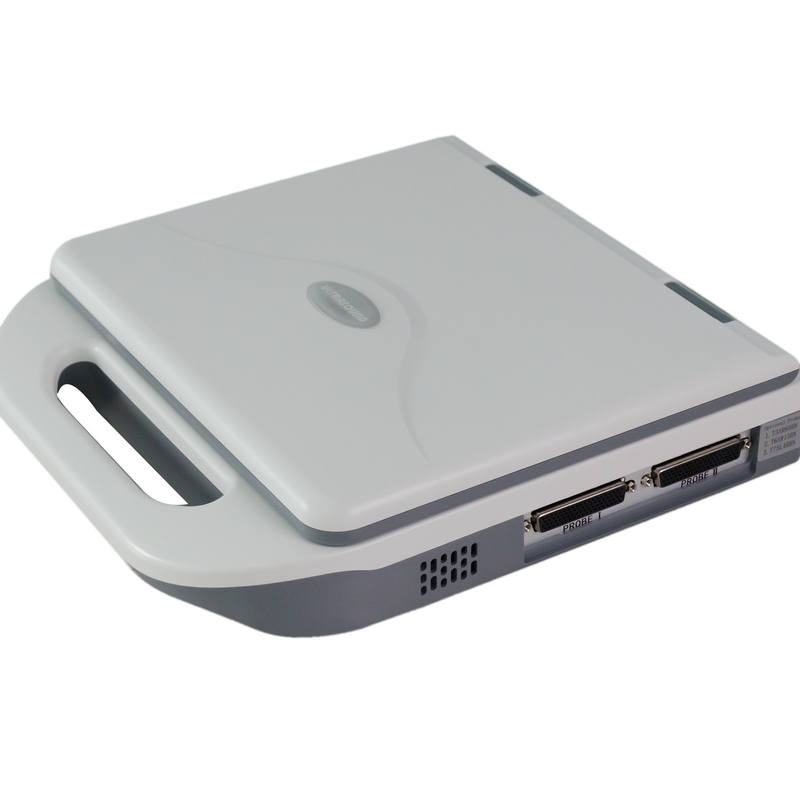

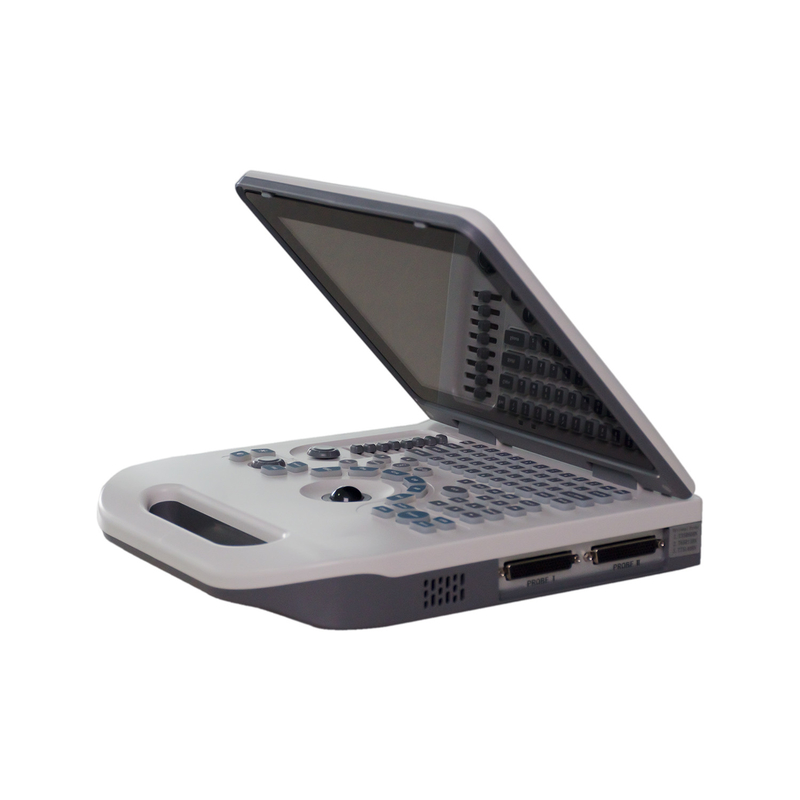

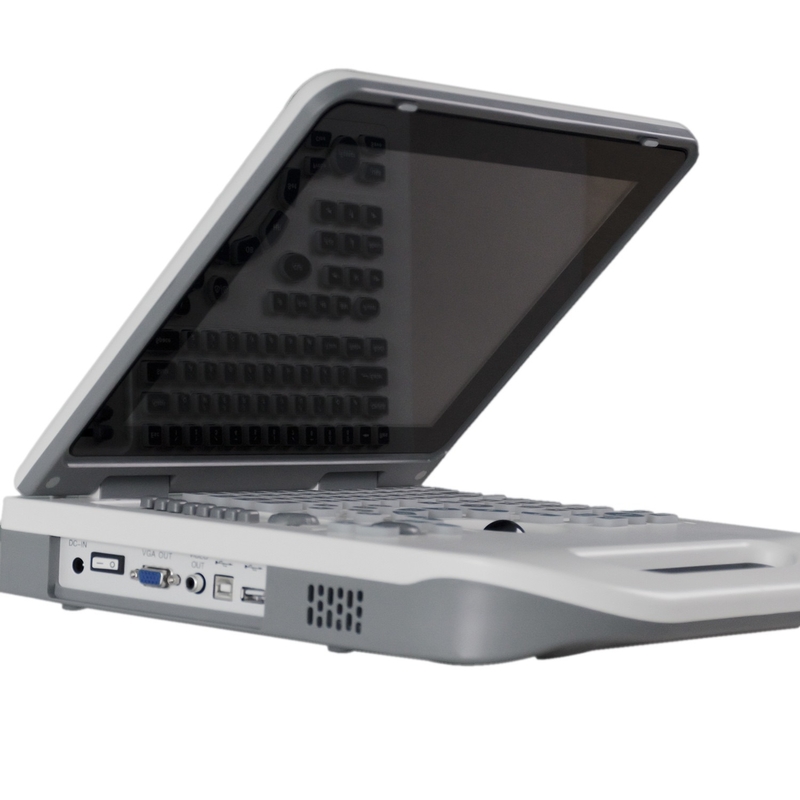

Full Digital Human Used Portable Ultrasound Machines 12.1 Inch LED
Features:
1. Mass memory , cine loop and permanent storage.
2. Radium Caved buttons and Silicon backlit buttons to be chosen;
3. Intelligent fluorescence trackball.
4. 8-segment TGC control. Overall Gain control
5. 2 USB ports , Upgraded and expandable printer function;
6. 2probe connectors. Probe automatic identfication;
7. 2SVGA video outputs and 21 PAL video outputs offer connection to video image recorder and image workstation. etc.
8. Report page is generated automatically.
9. According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this
parameter. This default of parameter can aslo be modified in the menue.
Standard Configuration:
1. One host machine
2. One convex array probe:F=3.5MHZ
3. One power adapter
4. 11.1 V 3000MAH Li battery
5. USB port
| Model | XF30A(XF50) Note book ultrasound Scanner |
| Display Modes | 3.5MHz/R60 convex array probe: B,B/B,4B,B+M,M |
| 6.5MHz/R13 Dimpling array probe: B | |
| 7.5 MHz/L40 Line array probe: B | |
| Image Mutiplying Factor |
3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0( 6modes) x0.8, x2.0 (display penetration depth) |
| 6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes) | |
| 7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes) | |
| E-zoom | magnify 2 times of real time image |
| Dynamic Range | 0~120dB ajustable |
| Focus Position | 1,2,3 and 4-segments dynamic electron focusing |
| Image Processing | γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc. |
| According to the user’s pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue. | |
| Frequency Conversion | 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe |
| Measuring Function | Distance,circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD,GS,CRL,FL,HL,OFD,TTD,AC), expected date of confinement and fetus weight, etc. |
| Annotation Function | hospital name, patient’s name, age and gender 64 body marks (with probe’s position); Full-screen character annotation; Real-time clock display |
| Puncture Guide | 3.5MHz convex array probe can display puncture guide line in B mode |
| Gain Control | 8 segments TGC and overall gain can be adjusted respectively |
| Image Polarity | left and right flip, black and white flip, up and down flip |
| Capacity Cine Loop | real time display 256 consecutive images which are memorized successively |
| Image Playback | series playback or check one by one |
| Permanent Storage | 128 images |

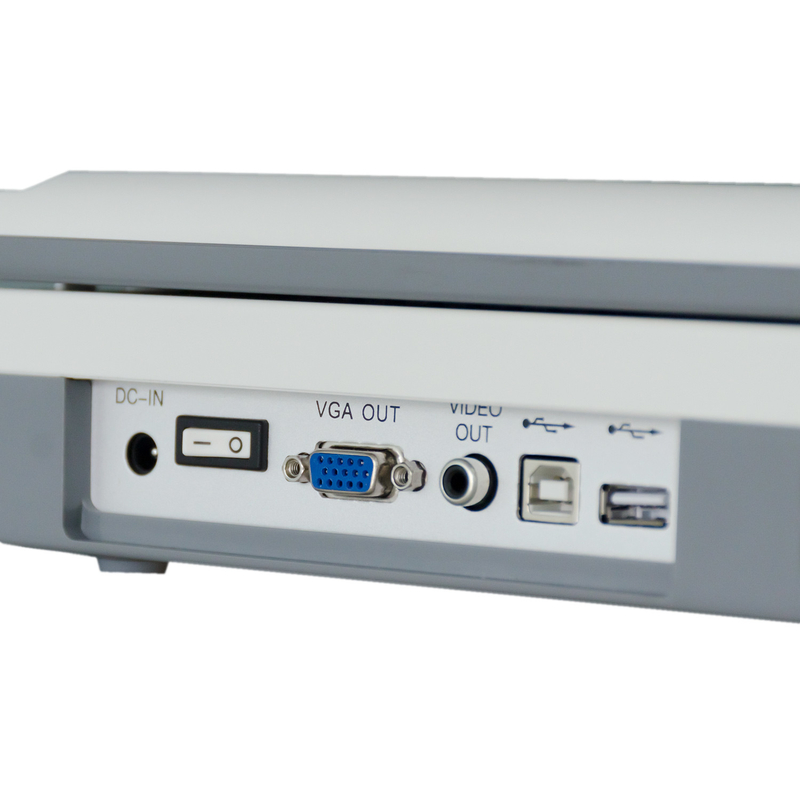

| Output Interface | VGA video output offers connection to SVGA color display PAL video output offers connection to PAL display and printer video image recorder and image workstation, etc |
| USB Port | Offers storing images in USB flash disk |
We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.
