Xianfeng Mobile Portable USG Machine Scanner Equipment PAL USB Interface

Xianfeng Mobile Portable USG Machine Scanner Equipment PAL USB Interface

Xianfeng portable ultrasound equipment

Portable USG Machine USB Xianfeng

mobile ultrasound scanner PAL Xianfeng

Place of Origin:

Made In China

Brand Name:

Xianfeng

Certification:

CE, ISO

Model Number:

XF50A

Contact Us
Request A Quote
Product Details
Product Name:
Laptop Ultrasound Machine
Type:
B/W Ultrasound
Application:
OB
Display:
12.1 Inch LED Screen
Display Mode:
B、B/B、4B、B/M、M
Battery:
Li-ion
Key Board:
Standard Key Board And Backlight Key
Item:
Easy Operation
Probe Socket:
Two Probe Sockets
Output Interface:
PAL Video Output,SVGA Video Output,USB
Model:
Portable Ultrasound Scanner
Payment & Shipping Terms
Minimum Order Quantity
3-5pcs
Price
1000USD
Packaging Details
Carton
Delivery Time
5-8days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Set Per Day
Product Description

Portable Ultrasound Equipment

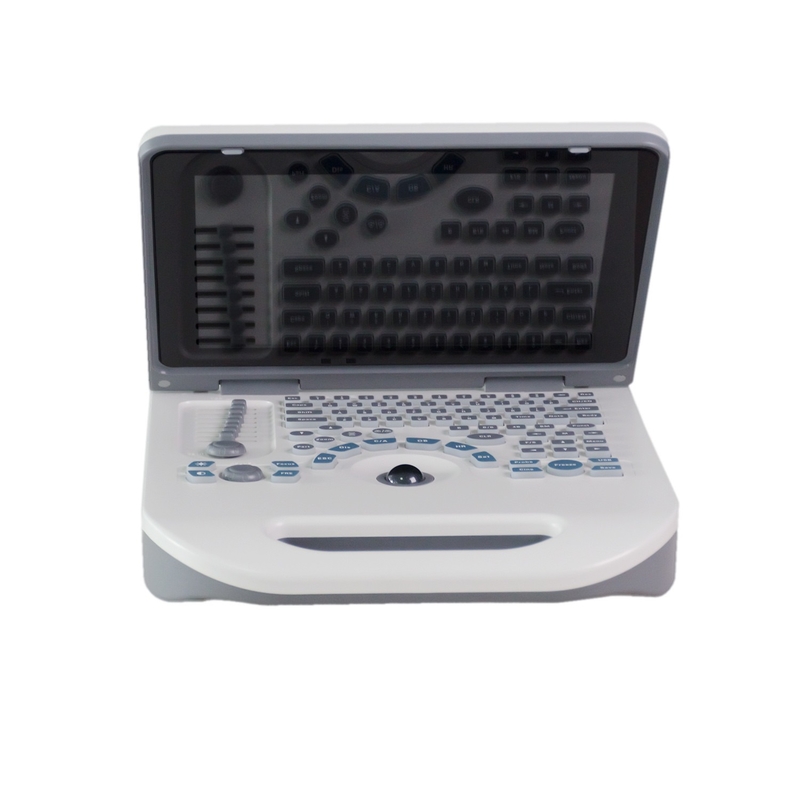

Xianfeng Mobile Portable USG Machine Scanner Equipment PAL USB Interface 0

Standerd Package List :
1. One host machine
2. One convex array probe:F=3.5MHZ
3. One power adapter
4. 11.1 V 3000MAH Li battery
5. USB port



Details:
1.  Mass memory , cine loop and permanent storage.
2.  Radium Caved buttons and Silicon backlit buttons to be chosen;
3.  Intelligent fluorescence trackball.
4.  8-segment TGC control. Overall Gain control
5.  2 USB ports , Upgraded and expandable printer function;

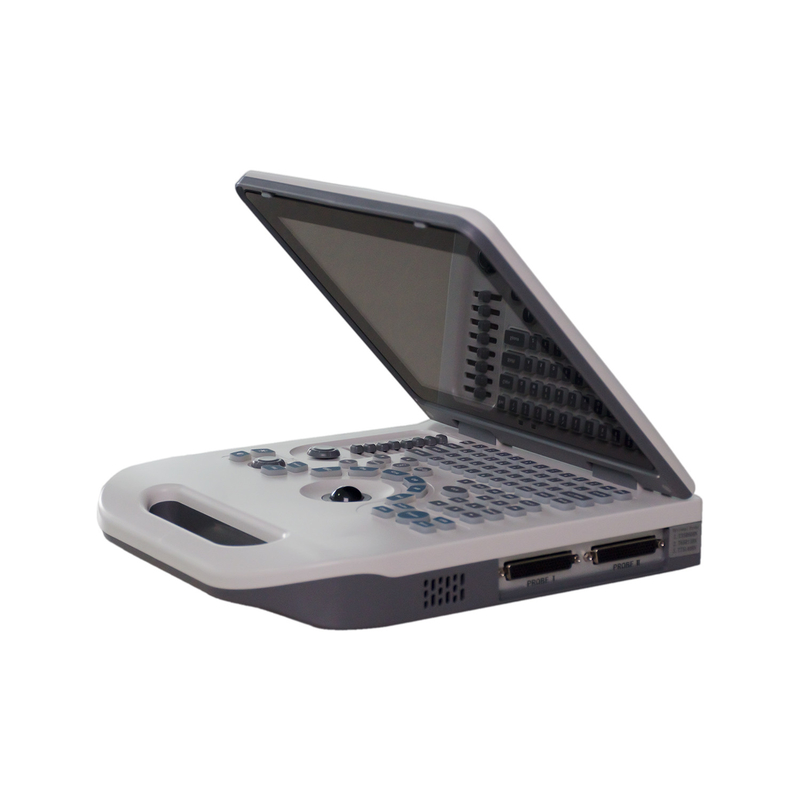

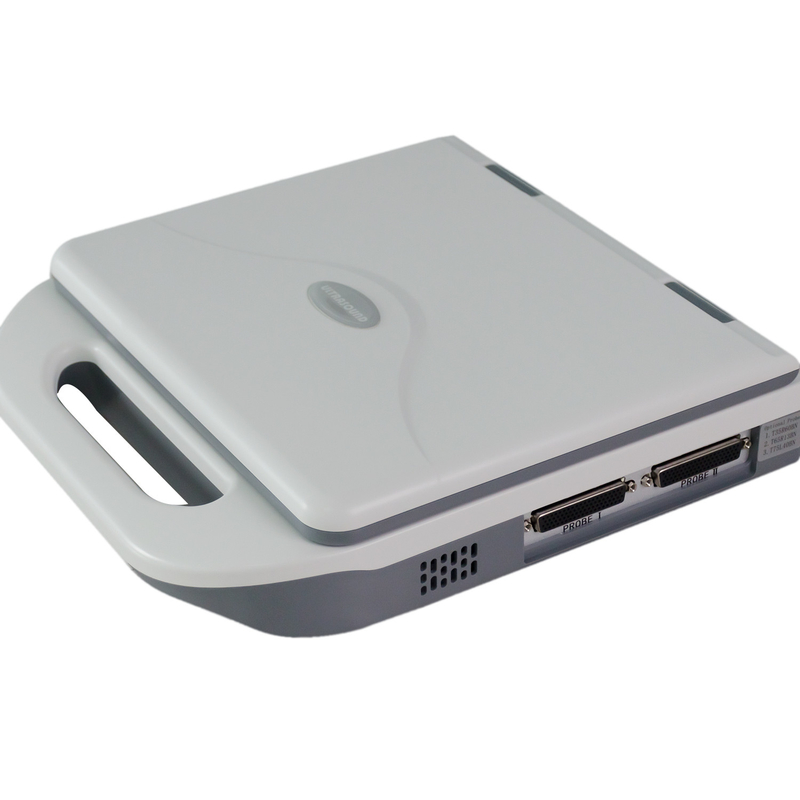

6.  2probe connectors. Probe automatic identfication;
7.  2SVGA video outputs and 21 PAL video outputs offer connection to video image recorder and image workstation. etc.
8.  Report page is generated automatically.
9.  According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this
parameter. This default of parameter can aslo be modified in the menue.










Xianfeng Mobile Portable USG Machine Scanner Equipment PAL USB Interface 1

Xianfeng Mobile Portable USG Machine Scanner Equipment PAL USB Interface 2

Xianfeng Mobile Portable USG Machine Scanner Equipment PAL USB Interface 3

Xianfeng Mobile Portable USG Machine Scanner Equipment PAL USB Interface 4

Xianfeng Mobile Portable USG Machine Scanner Equipment PAL USB Interface 5



Xianfeng Mobile Portable USG Machine Scanner Equipment PAL USB Interface 6



Model Portable Ultrasound Equipment
Display Modes 3.5MHz/R60 convex array probe: B,B/B,4B,B+M,M
6.5MHz/R13 Dimpling array probe: B
7.5 MHz/L40 Line array probe: B
Image Mutiplying Factor

3.5MHz/R60 convex array probe:

x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0( 6modes)

x0.8, x2.0 (display penetration depth)

6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
E-zoom magnify 2 times of real time image
Dynamic Range 0~120dB ajustable
Focus Position 1,2,3 and 4-segments dynamic electron focusing
Image Processing γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
According to the user’s pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Frequency Conversion 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion
frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe
Measuring Function Distance,circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD,GS,CRL,FL,HL,OFD,TTD,AC), expected date of confinement and fetus weight, etc.
Annotation Function hospital name, patient’s name, age and gender 64 body marks (with probe’s position);
Full-screen character annotation; Real-time clock display
Puncture Guide 3.5MHz convex array probe can display puncture guide line in B mode
Gain Control 8 segments TGC and overall gain can be adjusted respectively
Image Polarity left and right flip, black and white flip, up and down flip
Capacity Cine Loop real time display 256 consecutive images which are memorized successively
Image Playback series playback or check one by one
Permanent Storage 128 images

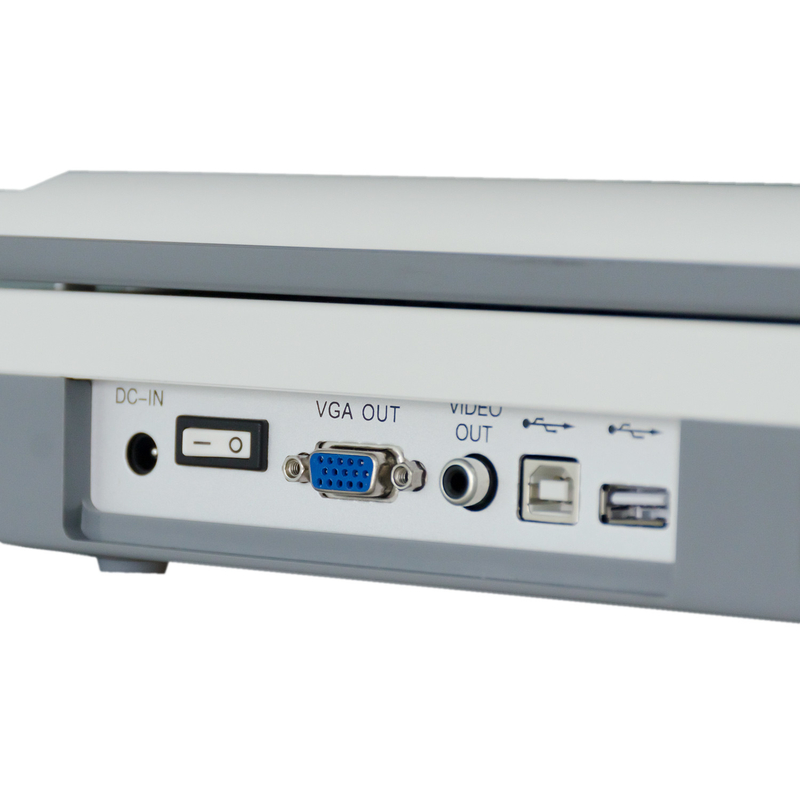

Output Interface VGA video output offers connection to SVGA color display
PAL video output offers connection to PAL display and printer
video image recorder and image workstation, etc
USB Port Offers storing images in USB flash disk



Xianfeng Mobile Portable USG Machine Scanner Equipment PAL USB Interface 7



Xianfeng Mobile Portable USG Machine Scanner Equipment PAL USB Interface 8



Xianfeng Mobile Portable USG Machine Scanner Equipment PAL USB Interface 9



Xianfeng Mobile Portable USG Machine Scanner Equipment PAL USB Interface 10

Xianfeng Mobile Portable USG Machine Scanner Equipment PAL USB Interface 11



We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.
