DRF RDA Portable Ultrasound Scanner Li-ion Rechargeable Battery

DRF RDA Portable Ultrasound Scanner Li-ion Rechargeable Battery

RDA Portable Ultrasound Machine

Li-ion Rechargeable Battery Ultrasound Machine

DRF Ultrasound Scanner

Contact Us
Request A Quote
Product Details
Product Name:
Laptop Ultrasound USG Scanner
Application:
Hospital、clinic
Display Mode:
B、B/B、4B、B/M、M
Key Board:
Standard Key Board And Backlight Key
Probe Socket:
Dual Probe Sockets
Display:
LED Screen
Battery:
Li-ion Rechargeable
Measuring Function:
Distance,, Volume, Heart Rate,etc.
Payment & Shipping Terms
Minimum Order Quantity
5pcs
Product Description

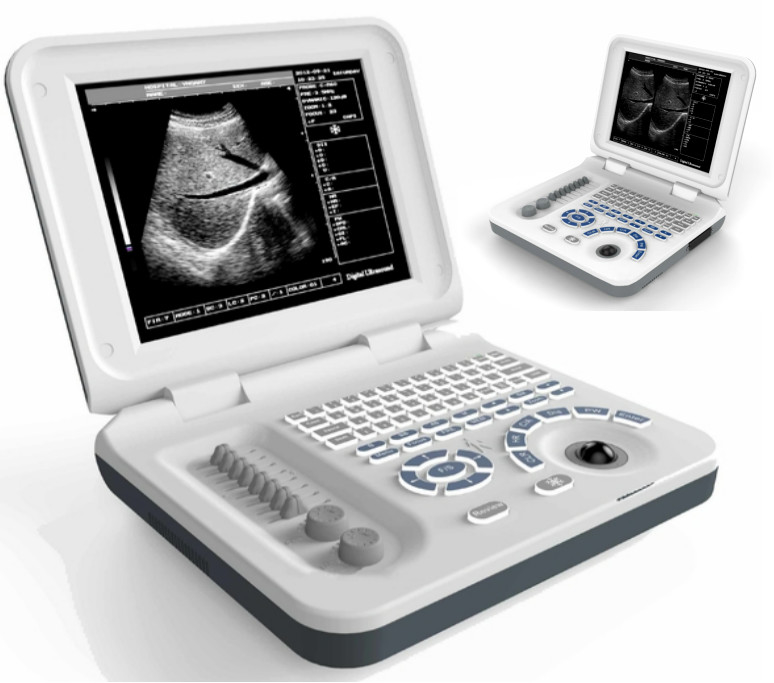

Portable Ultrasound Machine DRF RDA

  • 3.5MHz electronic convex array probe,
  • Real-time dynamic aperture imaging; full digital dynamic receiving focus;
  • Frequency conversion; 8-segment TGC; dynamic digital filter; dynamic digital filter;
  • image enhancement;
  • The display modes are B, B/B, 4B, B+M and M,
  • The image magnification in B mode is ×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0;
  • 256 images available after diagnosis in real-time playback or through the image viewer,
  • 128 is a large memory, and provides permanent storage, real-time movie loop;
  • Chinese-English conversion;
  • False color processing;
Multipurpose Equine Vet Portable Ultrasound Machine DRF RDA 4

Display mode B;B/B;4B;B+M;M
Display size 10.4inch LED displayer
Image multiplying factor

3.5MHz/R60 convex array probe:

x0.8;x1.0,x1.2,x1.5,x1.8, x2.0( 6 modes)

x0.8;x1.0(display penetration depth)

E-zoom Magnify 2 times of real time image
Dynamic range 0~120db adjustable
Focus position Dynamic electron focusing
Image proessing
8 γcorrections, Point correlation, Frame correlation, Line correlation, Digital filting,Digital edge enhancement and pseudo color processing
According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Gray scale 256 levels
Frequency conversion 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0Mhz
5 periods of frequency conversion Frequency range applies
5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe
Measuring function Distance, circumference/area(method of ellipse,method of loci) ,volume,heart rate, gestational weeks, expected date of confinement and fetus weight,etc.
Annotation function Hospital name;patient’s name, age and gender; Body marks (with probe’s position);Full-screen character annotation;Real-time clock display
Puncture guide 3.5MHz convex array probe can display punture guide in B mode
Gain control 8 segments TGC and overall gain can be adjusted respectively
Image polarity Left and right flip; up and down flip
Capacity cine loop Real time display 256 consecutive images which are moemorized successively
Image playback Series playback or check one by one
Standard configuration Ultrasound machine with 3.5Mhz convex array probe and power adapter


Multipurpose Equine Vet Portable Ultrasound Machine DRF RDA 6

Multipurpose Equine Vet Portable Ultrasound Machine DRF RDA 8
