Frequency:
Real-time scanning of T35R60GZ convex array probe: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five-cycle frequency conversion;
Real-time scanning of T65R13GZ cavity probe: 5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz five-cycle frequency conversion.
Focus position:
Send: 1, 2, 3 and 4-segment dynamic electronic focus; when 1, 2-segment focus, the focus can be moved.
Receiving: receive real-time dynamic focus point by point
Measuring functions: distance, circumference/area (ellipse method, locus method), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, HC, AC), expected date of delivery and fetal weight, etc.
Annotation function: hospital name, patient name, age, gender; 64 body markers (with the position of the probe); full-screen character annotation; real-time clock display;
Puncture guide: 3.5MHz convex array probe can display puncture guide line in B mode.
Gain control: 8 segments of TGC and total gain can be adjusted separately.
Image polarity: left-right flip, black-and-white flip, up-down flip.
Permanent storage: ≥128 images.
Image Playback: Play back in series or check one by one.
Image processing: gamma correction, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo-color processing, etc.
USB interface: Only store images in the U disk.

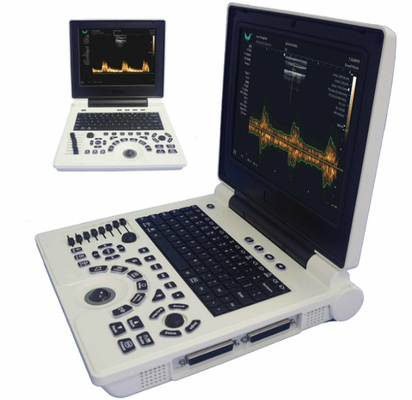

| Laptop thin and light design; | |
| 12.1〞LCD Displayer; | |
| Windows 7 operation system; | |
| Standard key board and backlight key; | |
| 3200mAh recharge lithium battery. | |
| Main Parameter | Display modes: B, B/B, 4B, B+M, PW; |
| Gray scale: 256 levels, | |
| 5 levels image optimization; | |
| THI imaging technology; | |
| Rich image processing technology, for instance frames average, view angle, edge enhance, Gamma ,etc |
|
| CN,EN,RUS,POR,ESP,FR,DE 7 kinds languages; | |
| Display penetration depth 1~400mm; | |
| Dynamic range: 80~280dB adjustable; | |
| Application mode OB,GYN, Superficial organ, Urology, Pediatric, Cardiac etc; | |
| Preset the parameter depend on scanning organ; | |
| IMT automatic measurement and display results; | |
| 15 kinds of pseudo color; | |
| Support guide line of biopsy puncture; | |
| Built-in 60G soild state drive ,make the storage safer and more reliable; | |
| Support frequency conversion range: 2MHz~10MHz (depend on probe type); | |
| Built-in editable report page ; | |
| Gain control: 8 segments TGC and overall gain can be adjusted respectively; | |
| Focus position: dynamic electron focusing. | |
| Interface ports | 2 activated probe connector |
| Interface Port: HDMI, VGA, DICOM, USB, Line Out. |
