OEM ODM Portable Ultrasound Machines For Home Use

Certification
China MIANYANG XIANFENG MEDECAL INSTRUMENT CO.,LTD certification
China MIANYANG XIANFENG MEDECAL INSTRUMENT CO.,LTD certification
I'm Online Chat Now

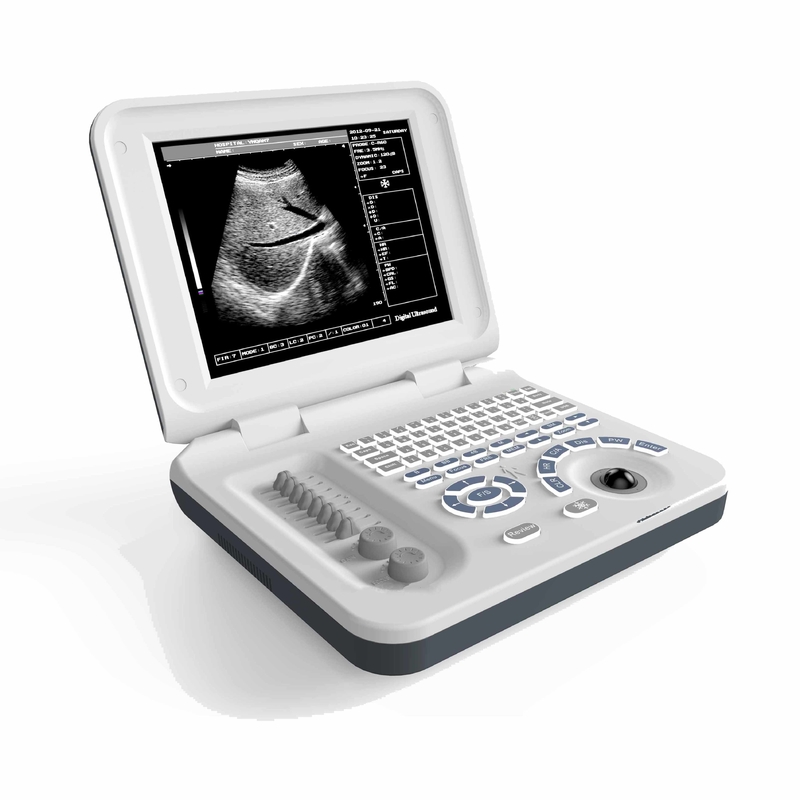

OEM ODM Portable Ultrasound Machines For Home Use

OEM ODM Portable Ultrasound Machines For Home Use
OEM ODM Portable Ultrasound Machines For Home Use OEM ODM Portable Ultrasound Machines For Home Use OEM ODM Portable Ultrasound Machines For Home Use OEM ODM Portable Ultrasound Machines For Home Use

Large Image :  OEM ODM Portable Ultrasound Machines For Home Use

Product Details:
Place of Origin: Made In China
Brand Name: Xianfeng
Certification: CE, ISO
Model Number: XF30
Payment & Shipping Terms:
Minimum Order Quantity: 3-5pcs
Price: 1000USD
Packaging Details: Carton,
Delivery Time: 5-8days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set Per Day

OEM ODM Portable Ultrasound Machines For Home Use

Description
Product Name: Portable Ultrasound Machines For Home Use Type: Doppler Ultrasound Equipment
Application: Abdomen,body Check, Healthcare Display: 10.4Screen
Display Mode: B、B/B、4B、B/M、M Key Board: Standard Key Board And Backlight Key
Image Gray Scale: 256 Level Probe: Convex Probe;rectal Micro-convex
Probe Socket: One Probe Sockets Output Interface: PAL Video Output,SVGA Video Output,USB
High Light:

portable ultrasound machines for home use

,

ODM portable ultrasound machines

,

OEM portable ultrasound for home use

Economic Full Digital 10.4 Inch LED Portable Ultrasound Machines Human Used



Economic Portable Ultrasound Machines for home use (OEM service available)

OEM ODM Portable Ultrasound Machines For Home Use 0



Functional Characteristics



This Ultrasonic diagnostic instrument (here in after referred as instrument) using 3.5 MHz electronic convex array probe, adopts full digital beam former(DBF); real-time dynamic aperture imaging (RDA); full digital dynamic receive focusing (DRF); frequency conversion; 8 segments TGC; dynamic digital filtering; dynamic digital filtering; image enhancement; line correlation, frame correlation, point correlation, linear interpolation and many other image processing technology, etc.; display modes as B, B/B, 4B, B+M and M, image multiplying factors of ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 under the B mode; with 128 a large memory and offers permanent storage, cine loop in real time; 256 images available after diagnosis of real-time playback or by image viewer, has measurements of distance, area, circumference, heart rate, gestational weeks(BPD,GS,CRL,FL,HC,OFD,TTD,AC 8 measurement kinds) and so on;



Standard Configuration


1. One SET host machine
2. One convex array probe:F=3.5MHZ
3. One power adapter
4. 11.1 V 2500MAH Li battery
5. USB port: 4 usb
5.Optional Packing: Carrying bag/alloy Case
OEM ODM Portable Ultrasound Machines For Home Use 1
OEM ODM Portable Ultrasound Machines For Home Use 2

OEM ODM Portable Ultrasound Machines For Home Use 3
OEM ODM Portable Ultrasound Machines For Home Use 4

OEM ODM Portable Ultrasound Machines For Home Use 5
OEM ODM Portable Ultrasound Machines For Home Use 6


OEM ODM Portable Ultrasound Machines For Home Use 7

Display mode B;B/B;4B;B+M;M
Display size 10.4inch LED displayer
Image multiplying factor

3.5MHz/R60 convex array probe:

x0.8;x1.0,x1.2,x1.5,x1.8, x2.0( 6 modes)

x0.8;x1.0(display penetration depth)

E-zoom Magnify 2 times of real time image
Dynamic range 0~120db adjustable
Focus position Dynamic electron focusing
Image proessing
8γcorrections, Point correlation, Frame correlation, Line correlation, Digital filting,Digital edge enhancement and pseudo color processing
According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Gray scale 256 levels
Frequency conversion 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0Mhz
5 periods of frequency conversion Frequency range applies
5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe
Measuring function Distance, circumference/area(method of ellipse,method of loci) ,volume,heart rate, gestational weeks, expected date of confinement and fetus weight,etc.
Annotation function Hospital name;patient’s name, age and gender; Body marks(with probe’s position);Full-screen character annotation;Real-time clock display
Puncture guide 3.5MHz convex array probe can display punture guide in B mode
Gain control 8segments TGC and overall gain can be adjusted respectively
Image polarity Left and right flip; up and down flip
Capacity cine loop Real time display 256 consecutive images which are moemorized successively
Image playback Series playback or check one by one
Standard configuration Ultrasound machine with 3.5Mhz convex probe and power adapter;builtin-battery; manual, warranty card















OEM ODM Portable Ultrasound Machines For Home Use 8



OEM ODM Portable Ultrasound Machines For Home Use 9

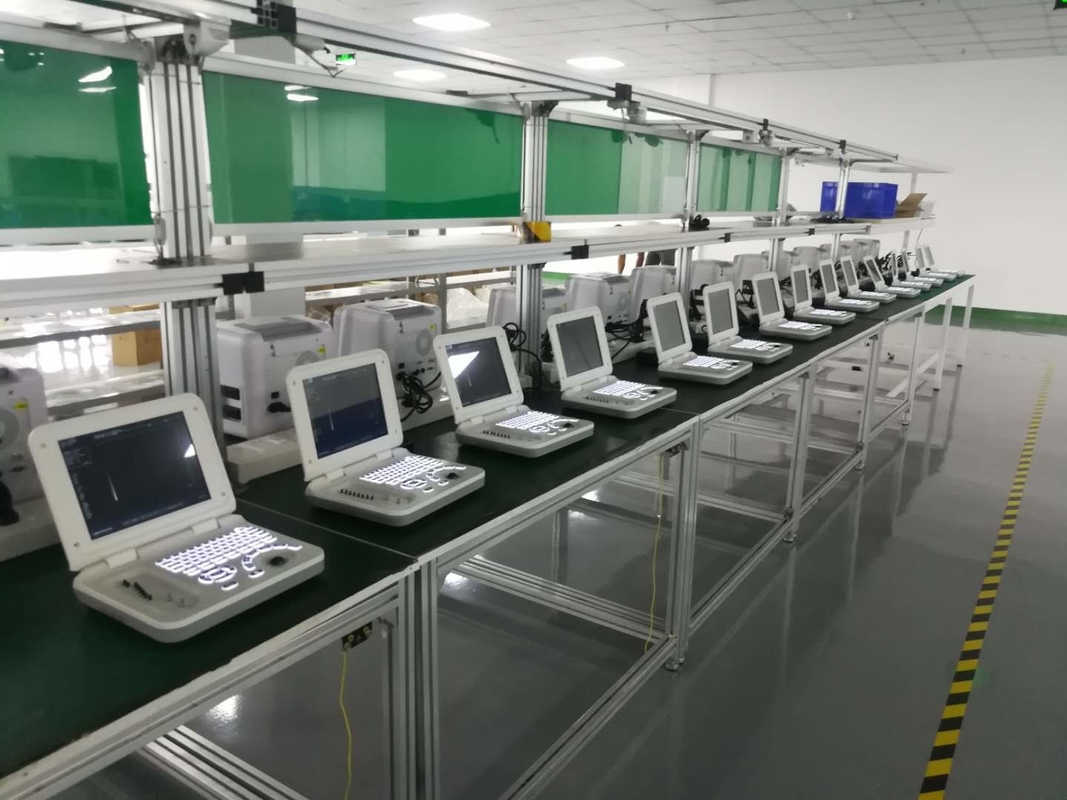

We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.



OEM ODM Portable Ultrasound Machines For Home Use 10



OEM ODM Portable Ultrasound Machines For Home Use 11



OEM ODM Portable Ultrasound Machines For Home Use 12



OEM ODM Portable Ultrasound Machines For Home Use 13



OEM ODM Portable Ultrasound Machines For Home Use 14



OEM ODM Portable Ultrasound Machines For Home Use 15



OEM ODM Portable Ultrasound Machines For Home Use 16



OEM ODM Portable Ultrasound Machines For Home Use 17
