USG OB GYN Portable USG Machine IMT Automatic Measurement

USG OB GYN Portable USG Machine IMT Automatic Measurement

IMT Automatic OB GYN Portable USG Machine

IMT usg portable machine ISO

Xianfeng ob gyn ultrasound machines

Place of Origin:

Made In China

Brand Name:

Xianfeng

Certification:

CE, ISO

Model Number:

P20

Contact Us
Request A Quote
Product Details
Product Name:
Doppler Ultrasound Machine
Languages:
CN\EN\RUS\POR\ESP\FR\DE
Transducers:
TWO
Interface:
HDMI, VGA, Dicom, 2 USB
Imaging Mode:
B,B+B,4B,B+M,PW
Display:
12" LCD Displayer
Gray Scale:
256 Levels
Application Mode:
Obstetrical & Gynecological
Gain Control:
8 Segments TGC And Overall Gain Can Be Adjusted Respectively
Depth Display:
1-40cm
Payment & Shipping Terms
Minimum Order Quantity
3-5pcs
Packaging Details
Carton
Delivery Time
5-8days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Set Per Day
Product Description

Notebook Ultrasonic Diagnostic System Doppler Ultrasound Machine Manufacturer New Launch

 Clicnical easy use Portable Ultrasound Machine Portable Diagnostic Ultrasound Machine
E20/P20 medical devices & ultrasound ecografo portable
With high precision digital beam forming and Doppler ultrasonic imaging technology, Pro incorporated
the latest image processing technologies such as THI, speckle reduction, multi-beam parallel processing
and efficient full-digital image management system is easy to acquire better image. Special measurement
software packages, flexible configuration and ergonomical design greatly increase operators clinical
diagnosis accruacy and analysis efficiency


USG OB GYN Portable USG Machine IMT Automatic Measurement 0



Main Functions
Scanning mode: electron scanning
Probe configuration: T35R60GZ convex array probe (standard); T65R13GZ type cavity probe (user selected)
Display modes:
3T35R60GZ convex array probe: B, B/B, 4B, B+M, M;
T65R13GZ type cavity probe: B;
Image multiplying factor:
T35R60GZ convex array probe, Type B, real-time state:×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0;×0.8, ×2.0 (display penetration depth);
T65R13GZ type cavity probe: ×0.8, ×1.0, ×1.2, ×1.5.
M type speed: M type scanning has eight kinds of speed can be selected.
Chinese and English translation: Transformation in both English and Chinese in interface.
Zoom: Local x 2.0 magnification rate
Dynamic range: 0~120dB adjustable.
Frequency:
T35R60GZ convex array probe real-time scan:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion;
T65R13GZ type cavity probe real-time scan: 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz five periods of frequency conversion.
Focus position:
Send: 1, 2, 3 and 4-segments dynamic electron focusing; when 1,2-segments focus,the focus can be moved.
Receive: receive real-time dynamic focus by focus
Measuring function: Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, HC,AC), expected date of confinement and fetus weight, etc.
Annotation function: hospital name, patient’s name, age and gender;64 body marks (with probe’s position); Full-screen character annotation; Real-time clock display;
Puncture guide: 3.5MHz convex array probe can display puncture guide line in B mode.
Gain control: 8 segments TGC and overall gain can be adjusted respectively.
Image polarity: left and right flip, black and white flip, up and down flip.
Permanent storage: ≧128 images.
Image playback: series playback or check one by one.
Image processing: γ correction, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
USB interface: store image only for U disk.



USG OB GYN Portable USG Machine IMT Automatic Measurement 1

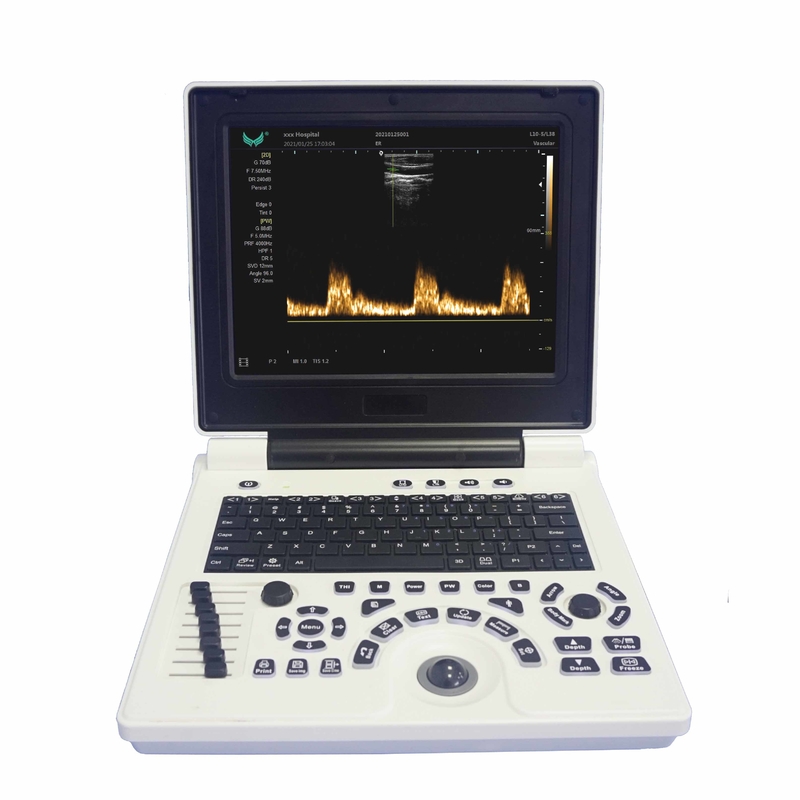

 Laptop thin and light design;
12.1〞LCD Displayer;
Windows 7 operation system;

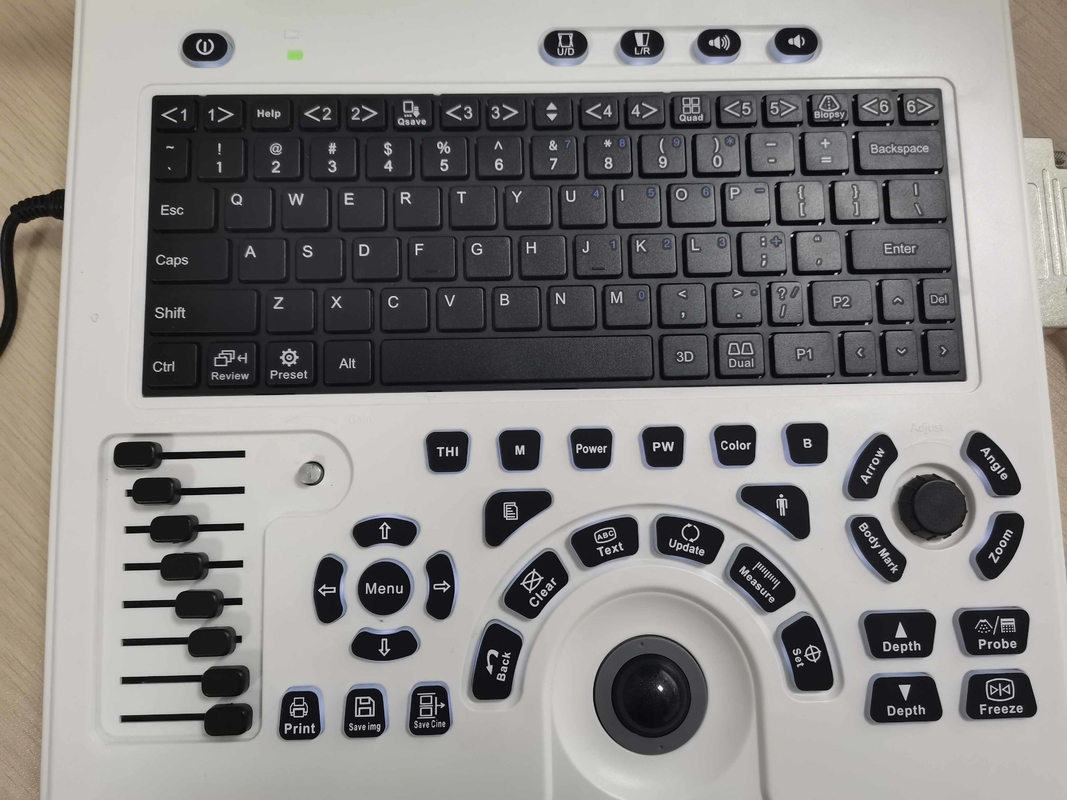

Standard key board and backlight key;
3200mAh recharge lithium battery.

Main Parameter

Display modes: B, B/B, 4B, B+M, PW;
Gray scale: 256 levels,
5 levels image optimization;
THI imaging technology;

Rich image processing technology, for instance frames average, view angle, edge
enhance, Gamma ,etc

CN,EN,RUS,POR,ESP,FR,DE 7 kinds languages;
Display penetration depth 1~400mm;
Dynamic range: 80~280dB adjustable;
Application mode OB,GYN, Superficial organ, Urology, Pediatric, Cardiac etc;
Preset the parameter depend on scanning organ;
IMT automatic measurement and display results;
15 kinds of pseudo color;
Support guide line of biopsy puncture;
Built-in 60G soild state drive ,make the storage safer and more reliable;
Support frequency conversion range: 2MHz~10MHz (depend on probe type);
Built-in editable report page ;
Gain control: 8 segments TGC and overall gain can be adjusted respectively;
Focus position: dynamic electron focusing.

Interface ports

2 activated probe connector
Interface Port: HDMI, VGA, DICOM, USB, Line Out.


USG OB GYN Portable USG Machine IMT Automatic Measurement 2

USG OB GYN Portable USG Machine IMT Automatic Measurement 3


USG OB GYN Portable USG Machine IMT Automatic Measurement 4




USG OB GYN Portable USG Machine IMT Automatic Measurement 5

USG OB GYN Portable USG Machine IMT Automatic Measurement 6


We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.
