|Product Name:||Doppler Ultrasound Machine||Languages:||7 Languages In Programmed|
|Transducers:||2 Active Probe Transducers||Display:||12.1 Inch LCD Displayer|
|Software:||Human And Veterinary Optional||Report:||Editable Report Page|
|THI:||THI Imaging Technology||Weight:||5.5KG|
12.1In pw laptop ultrasound machines,
ultrasound machine black and white THI 12.1In,
pw ultrasound machine THI 12.1In

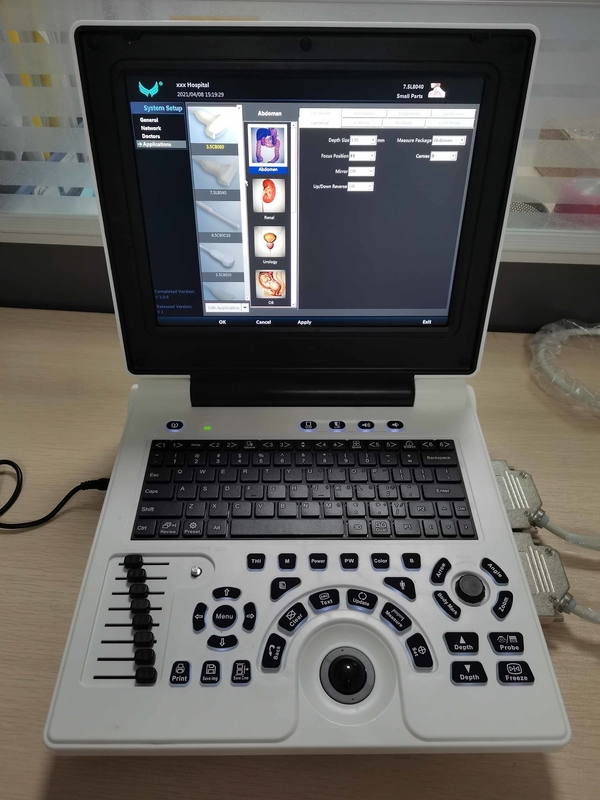

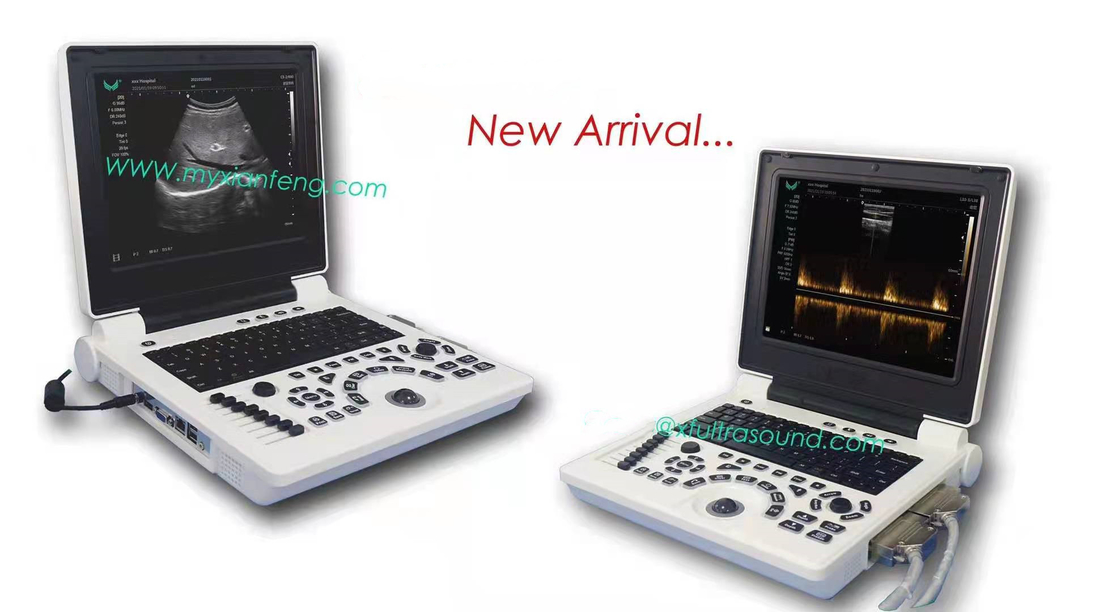

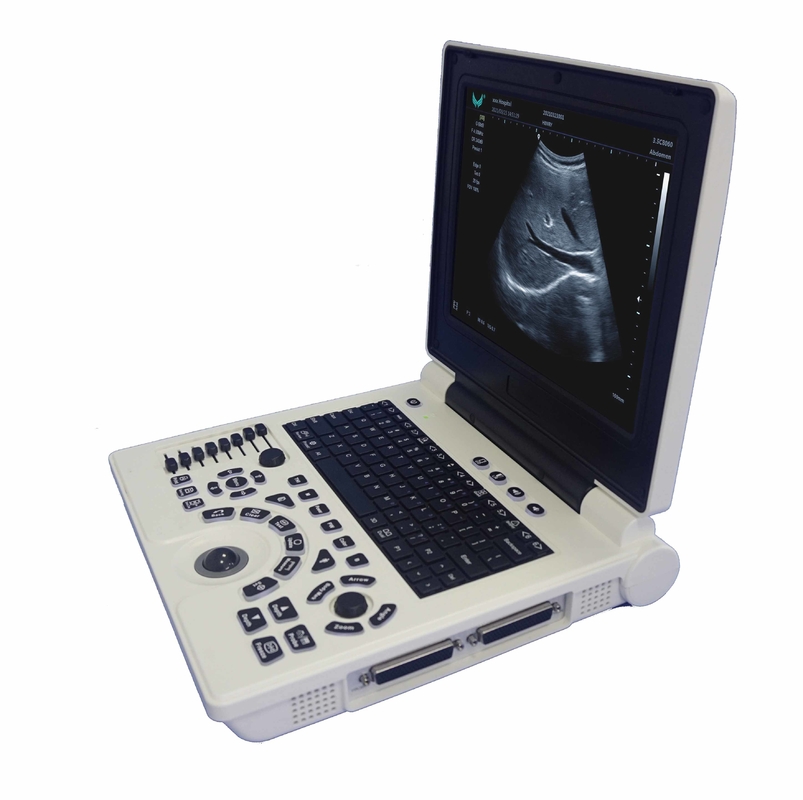

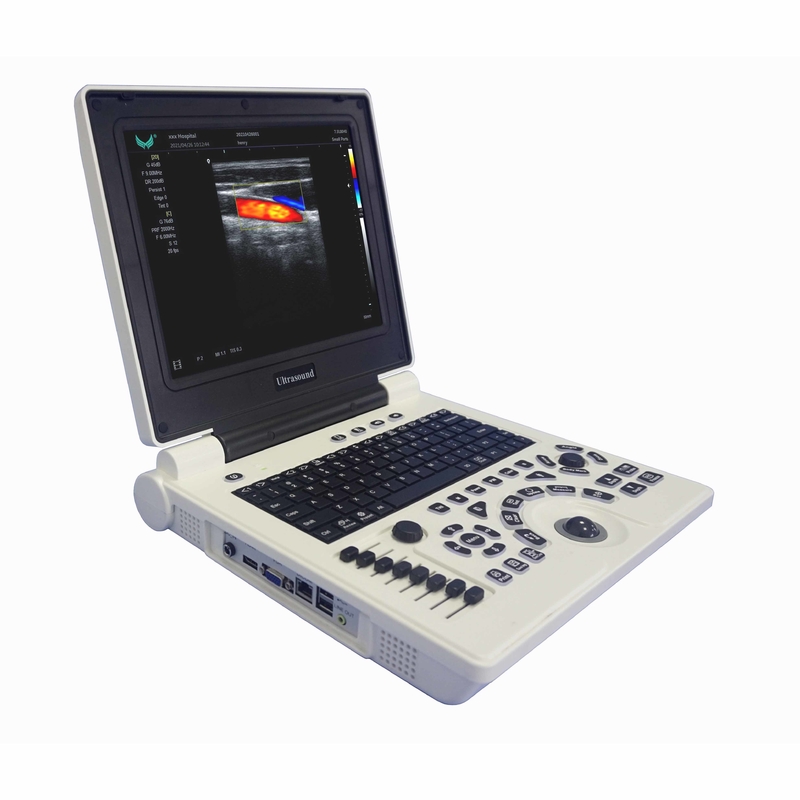

Laptop High End Black White PW Doppler Ultrasound Machine Manufacturer New Arrival
12" HD LCD Display;
Based on Windows 7 platform operating system;
Double transducer socket.
Support convex,lineal,cavity,micro-convex ,transrectal probe;
Imaging mode B,BB,4B ,BM,PW ;
3D software pre-installed;
Human and Veterinary software can change freely;
THI imaging technology;
Support 7 kinds languages(CNENRUSPORESPFRDE);
IMT automatic measure function;
Editable report page;
Support HDMI,VGA,DICOM,2USB,LINE OUT
Equipped solid state drive, make the storage safer and more reliable;
Environmental protection and low power consumption design;
3200mAh chargeable battery with management;
Scanning mode: electron scanning
Probe configuration: T35R60GZ convex array probe (standard); T65R13GZ type cavity probe (user selected)
3T35R60GZ convex array probe: B, B/B, 4B, B+M, M;
T65R13GZ type cavity probe: B;
Image multiplying factor:
T35R60GZ convex array probe, Type B, real-time state:×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0;×0.8, ×2.0 (display penetration depth);
T65R13GZ type cavity probe: ×0.8, ×1.0, ×1.2, ×1.5.
M type speed: M type scanning has eight kinds of speed can be selected.
Chinese and English translation: Transformation in both English and Chinese in interface.
Zoom: Local x 2.0 magnification rate
Dynamic range: 0~120dB adjustable.
T35R60GZ convex array probe real-time scan:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion;
T65R13GZ type cavity probe real-time scan: 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz five periods of frequency conversion.
Send: 1, 2, 3 and 4-segments dynamic electron focusing; when 1,2-segments focus,the focus can be moved.
Receive: receive real-time dynamic focus by focus
Measuring function: Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, HC,AC), expected date of confinement and fetus weight, etc.
Annotation function: hospital name, patient’s name, age and gender;64 body marks (with probe’s position); Full-screen character annotation; Real-time clock display;
Puncture guide: 3.5MHz convex array probe can display puncture guide line in B mode.
Gain control: 8 segments TGC and overall gain can be adjusted respectively.
Image polarity: left and right flip, black and white flip, up and down flip.
Permanent storage: ≧128 images.
Image playback: series playback or check one by one.
Image processing: γ correction, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
USB interface: store image only for U disk.
|Laptop thin and light design;|
|Windows 7 operation system;|
|Standard key board and backlight key;|
|3200mAh recharge lithium battery.|
|Display modes: B, B/B, 4B, B+M, PW;|
|Gray scale: 256 levels,|
|5 levels image optimization;|
|THI imaging technology;|
Rich image processing technology, for instance frames average, view angle, edge
|CN,EN,RUS,POR,ESP,FR,DE 7 kinds languages;|
|Display penetration depth 1~400mm;|
|Dynamic range: 80~280dB adjustable;|
|Application mode OB,GYN, Superficial organ, Urology, Pediatric, Cardiac etc;|
|Preset the parameter depend on scanning organ;|
|IMT automatic measurement and display results;|
|15 kinds of pseudo color;|
|Support guide line of biopsy puncture;|
|Built-in 60G soild state drive ,make the storage safer and more reliable;|
|Support frequency conversion range: 2MHz~10MHz (depend on probe type);|
|Built-in editable report page ;|
|Gain control: 8 segments TGC and overall gain can be adjusted respectively;|
|Focus position: dynamic electron focusing.|
|2 activated probe connector|
|Interface Port: HDMI, VGA, DICOM, USB, Line Out.|
We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.
