Place of Origin:
MADE IN CHINA
Brand Name:
Xianfeng
Certification:
ISO & CE
Model Number:
E20
Oem Economical And Affordable Portable 3d Ultrasound Machine Color Doppler Ultrasound Machine
Rich clinical application:
Application to: Abdomen, regular women and obstetric measurement, urinary system, superficial tissue, peripheral blood vessels and so on.
Standard features

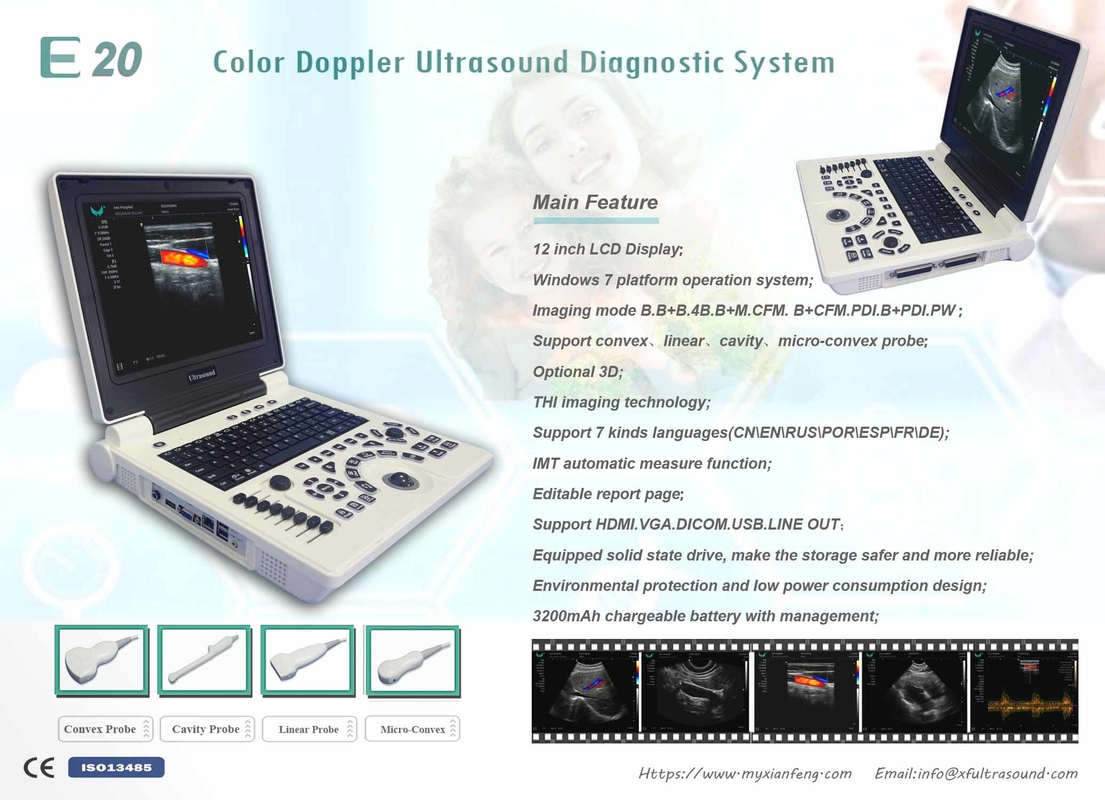

E20 Laptop Color Doppler Ultrasonic Diagnostic System
| Laptop thin and light design; | |
| 12.1〞LCD Displayer; | |
| Windows 7 operation system; | |

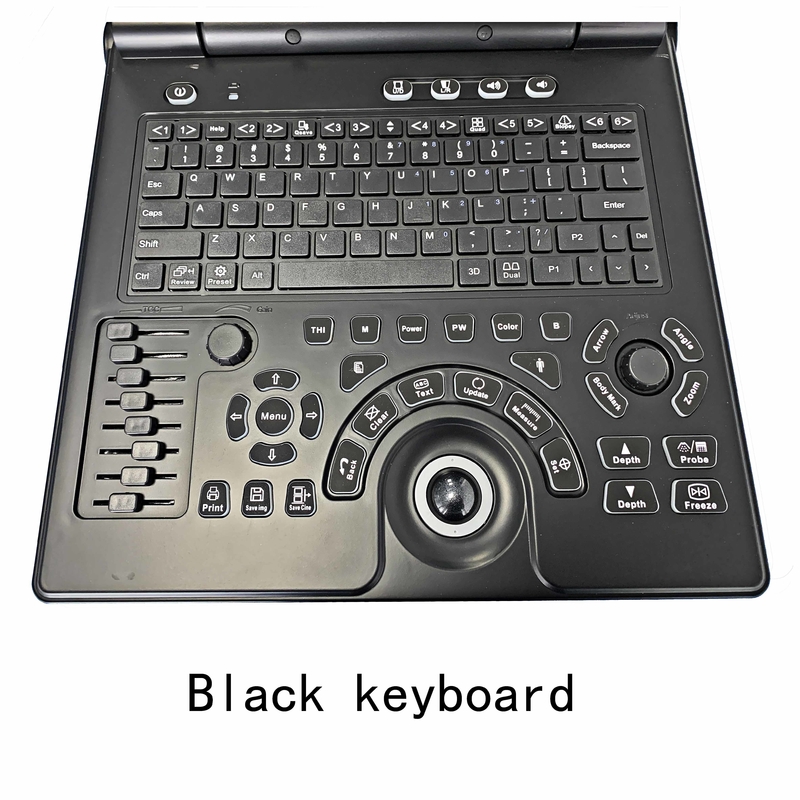

| Standard key board and backlight key; | |
| 3200mAh recharge lithium battery. | |
| Main Parameter | Display modes: B, B/B,4B,B+M,CFM,B+CFM,PDI,B+PDI,PW; |
| Gray scale: 256 levels, | |
| 5 levels image optimization; | |
| THI imaging technology; | |
|
Rich image processing technology, for instance frames average, view angle, edge enhance, Gamma ,etc |
|
| CN,EN,RUS,POR,ESP,FR,DE 7 kinds languages; | |
| Display penetration depth 1~400mm; | |
| Dynamic range: 80~280dB adjustable; | |
| Application mode OB,GYN, Small organ, Urology, Pediatric, Cardiac etc; | |
| Preset the parameter depend on scanning organ; | |
| IMT automatic measurement and display results; | |
| 15 kinds of pseudo color; | |
| Support guide line of biopsy puncture; | |
| Built-in 120G soild state drive ,make the storage safer and more reliable; | |
| Support frequency conversion range: 2MHz~12MHz (depend on probe type); | |
| Built-in editable report page ; | |
| Gain control: 8 segments TGC and overall gain can be adjusted respectively; | |
| Focus position: dynamic electron focusing. | |
| Interface ports | 2 activated probe connector |

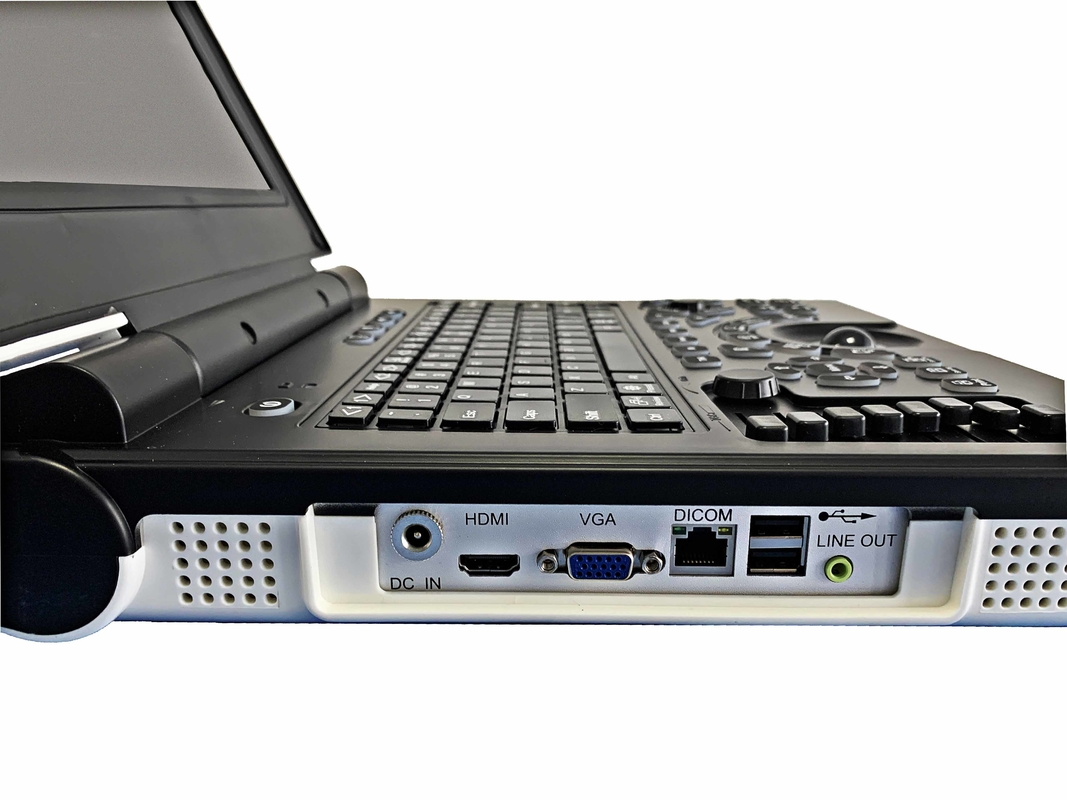

| Interface Port: HDMI, VGA, DICOM, USB, Line Out. |
We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.
CE,ISO,Free sales certificate,EC declaration of conformity,MSDS,Registeration certificate for medical device,Manufacturing license,qualified industrial registerations,CO,CCPIT & ect .
