Windows7 Laptop Doppler Ultrasound Machine Imaging 12in With Dual Transducer

Windows7 Laptop Doppler Ultrasound Machine Imaging 12in With Dual Transducer

Windows7 Doppler Ultrasound Machine

Windows7 Doppler Imaging Ultrasound 12in

transducer ultrasound machine Laptop

Place of Origin:

MADE IN CHINA

Brand Name:

Xianfeng

Certification:

ISO & CE

Model Number:

E20

Contact Us
Request A Quote
Product Details
Product Name:
Laptop Ultrasound Machine
Display:
12" Screen
Transducer:
TWO
System:
Windows7
Languages:
CN,EN,RUS,POR,ESP,FR,DE
Software:
Human And Vet Preinstalled
IMT:
IMT Automatic Measure Function
Payment & Shipping Terms
Minimum Order Quantity
3-5pcs
Packaging Details
Carton,490*460*250mm
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Units Per Month
Product Description

Oem Economical And Affordable Portable 3d Ultrasound Machine Color Doppler Ultrasound Machine
 Basic Level Doppler Ultrasound Machine Doppler Imaging Ultrasound Dual Transducer
Application to: Abdomen, regular women and obstetric measurement, urinary system, superficial tissue, peripheral blood vessels and so on.

1.ONE KEY to select the desired application with automatic preset
2.ONE KEY to optimize the image automaticly.
AlO(Automatic imageoptinization) AC
3.ONE KEY to save still image and cine
4 .ONE KEY to measure
5.ONE KEY to generate report
6.ONE KEY to print by PC or video printer

Ergonomics
Ultra-compact & Ultra-light·Easy to carry
·Keyboard: For easy and quick access
Stream lined workflow
Economic
·The latest platform &more advanced chip-set:brings you
better image quality and features at less cost in a more compact box
·Support PC printer reduce investment & day to day paper cost

ECHO
·Advanced technologies
i-Image(Intelligent image optimization)
THI(Tissue Harmonic Image
SRA(Speckle Reduction Algorithm)
Compound imaging
Full digital beam-former·Trapezoid
·Automatic PW trace
Chroma
.Full screen display mode·AIO(Automaticimage optimization)
Eco-friendly
·Less radiation
·Less power consumption Longer usage life LED
Longer battery standby time:>2 hours

Windows7 Laptop Doppler Ultrasound Machine  Imaging 12in With Dual Transducer 0
Main Features:

12 inch LCD Display;
Based on Windows 7 platform operation system;
Dual transducer interface.
Support convex,linear,endocavitary,micro-convex ,transrectal probe;
Imaging mode B,B+B,4B ,B+M,PW ;CFM
3D software pre-installed;
Human and Veterinary software can change freely;
THI imaging technology;
Support 7 kinds languages(CNENRUSPORESPFRDE);
IMT automatic measure function;
Editable report page;
Support HDMI,VGA,DICOM,USB,LINE OUT;
Equipped solid state drive, make the storage safer and more reliable;
Environmental protection and low power consumption design;
3200mAh chargeable battery with management

Windows7 Laptop Doppler Ultrasound Machine  Imaging 12in With Dual Transducer 1

Transducer types:

Windows7 Laptop Doppler Ultrasound Machine  Imaging 12in With Dual Transducer 2

Standard configuration features

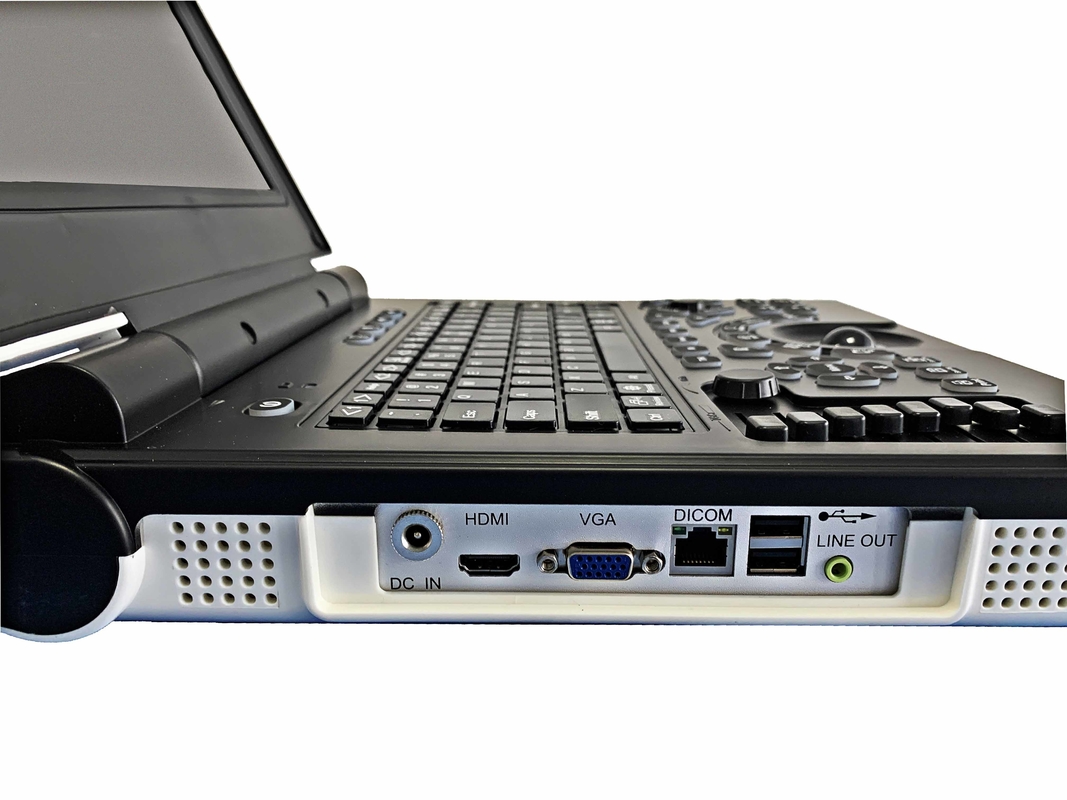

Peripheral ports: VGA, 2 USB ports, HDMI port, DICOM port, LINE OUT port
Electrical Power supply: 100-240V~50/60Hz 100VA
Li-lion battery :3.2Ah
Video & PC printer (Optional)

Windows7 Laptop Doppler Ultrasound Machine  Imaging 12in With Dual Transducer 3


E20 Laptop Color Doppler Ultrasonic Diagnostic System


 Laptop thin and light design;
12.1〞LCD Displayer;
Windows 7 operation system;
Standard key board and backlight key;
3200mAh recharge lithium battery.
Main ParameterDisplay modes: B, B/B,4B,B+M,CFM,B+CFM,PDI,B+PDI,PW;
Gray scale: 256 levels,
5 levels image optimization;
THI imaging technology;

Rich image processing technology, for instance frames average, view angle, edge
enhance, Gamma ,etc

CN,EN,RUS,POR,ESP,FR,DE 7 kinds languages;
Display penetration depth 1~400mm;
Dynamic range: 80~280dB adjustable;
Application mode OB,GYN, Small organ, Urology, Pediatric, Cardiac etc;
Preset the parameter depend on scanning organ;
IMT automatic measurement and display results;
15 kinds of pseudo color;
Support guide line of biopsy puncture;
Built-in 120G soild state drive ,make the storage safer and more reliable;
Support frequency conversion range: 2MHz~12MHz (depend on probe type);
Built-in editable report page ;
Gain control: 8 segments TGC and overall gain can be adjusted respectively;
Focus position: dynamic electron focusing.
Interface ports2 activated probe connector
Interface Port: HDMI, VGA, DICOM, USB, Line Out.




Windows7 Laptop Doppler Ultrasound Machine  Imaging 12in With Dual Transducer 4

Windows7 Laptop Doppler Ultrasound Machine  Imaging 12in With Dual Transducer 5

Windows7 Laptop Doppler Ultrasound Machine  Imaging 12in With Dual Transducer 6

Windows7 Laptop Doppler Ultrasound Machine  Imaging 12in With Dual Transducer 7

We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.


Windows7 Laptop Doppler Ultrasound Machine  Imaging 12in With Dual Transducer 8

Windows7 Laptop Doppler Ultrasound Machine  Imaging 12in With Dual Transducer 9

Windows7 Laptop Doppler Ultrasound Machine  Imaging 12in With Dual Transducer 10

CE,ISO,Free sales certificate,EC declaration of conformity,MSDS,Registeration certificate for medical device,Manufacturing license,qualified industrial registerations,CO,CCPIT & ect .
