OEM Portable 3D Veterinary Ultrasound Machine For Clinical Hospitable


Oem Economical And Affordable Portable 3d Ultrasound Machine Color Doppler Ultrasound Machine

E20 medical devices & ultrasound ecografo portable
With high precision digital beam forming and Doppler ultrasonic imaging technology, Pro incorporated
the latest image processing technologies such as THI, speckle reduction, multi-beam parallel processing
and efficient full-digital image management system is easy to acquire better image. Special measurement
software packages, flexible configuration and ergonomical design greatly increase operators clinical
diagnosis accruacy and analysis efficiency

Ergonomics
Ultra-compact & Ultra-light·Easy to carry
·Keyboard: For easy and quick access
Stream lined workflow
Economic
·The latest platform &more advanced chip-set:brings you
better image quality and features at less cost in a more compact box
·Support PC printer reduce investment & day to day paper cost

ECHO
·Advanced technologies
i-Image(Intelligent image optimization)
THI(Tissue Harmonic Image
SRA(Speckle Reduction Algorithm)
Compound imaging
Full digital beam-former·Trapezoid
·Automatic PW trace
Chroma
.Full screen display mode·AIO(Automaticimage optimization)
Eco-friendly
·Less radiation
·Less power consumption Longer usage life LED
Longer battery standby time:>2 hours


Main Features:

12 inch LCD Display;
Based on Windows 7 platform operation system;
Dual transducer interface.
Support convex,linear,endocavitary,micro-convex ,transrectal probe;
Imaging mode B,B+B,4B ,B+M,PW ;CFM
3D software pre-installed;
Human and Veterinary software can change freely;
THI imaging technology;
Support 7 kinds languages(CNENRUSPORESPFRDE);
IMT automatic measure function;
Editable report page;
Support HDMI,VGA,DICOM,USB,LINE OUT；
Equipped solid state drive, make the storage safer and more reliable;
Environmental protection and low power consumption design;
3200mAh chargeable battery with management


Transducer types:





Standard configuration features



Peripheral ports: VGA, 2 USB ports, HDMI port, DICOM port, LINE OUT port

Electrical Power supply: 100-240V~50/60Hz 100VA

Li-lion battery :3.2Ah

Video & PC printer (Optional)




E20 Laptop Color Doppler Ultrasonic Diagnostic System


	Laptop thin and light design;
	12.1〞LCD Displayer;
	Windows 7 operation system;

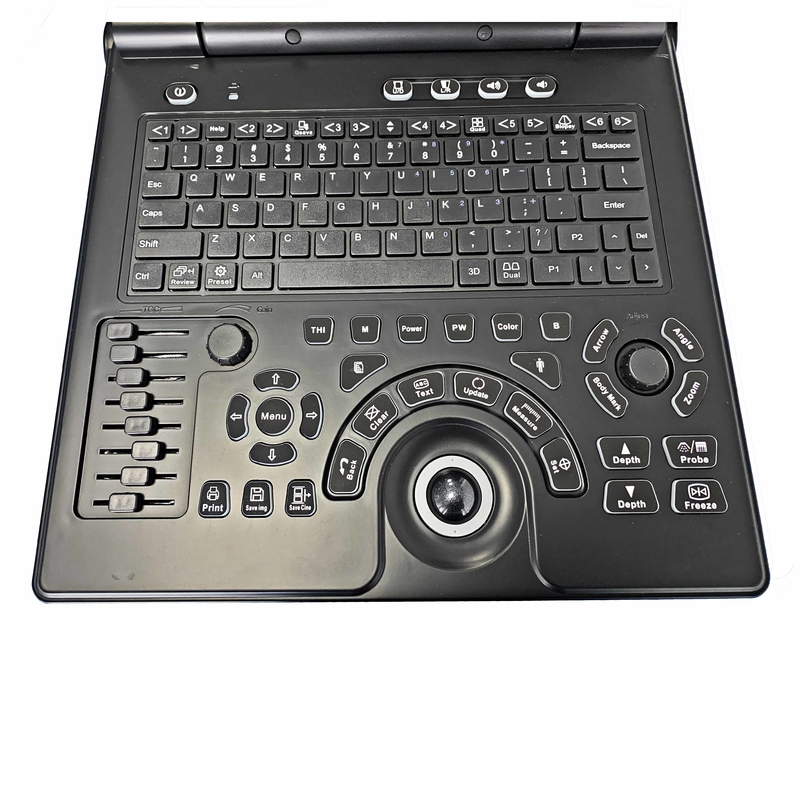

	Standard key board and backlight key;
	3200mAh recharge lithium battery.
Main Parameter	Display modes: B, B/B,4B,B+M,CFM,B+CFM,PDI,B+PDI,PW;
	Gray scale: 256 levels,
	5 levels image optimization;
	THI imaging technology;
	Rich image processing technology, for instance frames average, view angle, edge enhance, Gamma ,etc
	CN,EN,RUS,POR,ESP,FR,DE 7 kinds languages;
	Display penetration depth 1~400mm;
	Dynamic range: 80~280dB adjustable;
	Application mode OB,GYN, Small organ, Urology, Pediatric, Cardiac etc;
	Preset the parameter depend on scanning organ;
	IMT automatic measurement and display results;
	15 kinds of pseudo color;
	Support guide line of biopsy puncture;
	Built-in 120G soild state drive ,make the storage safer and more reliable;
	Support frequency conversion range: 2MHz~12MHz (depend on probe type);
	Built-in editable report page ;
	Gain control: 8 segments TGC and overall gain can be adjusted respectively;
	Focus position: dynamic electron focusing.

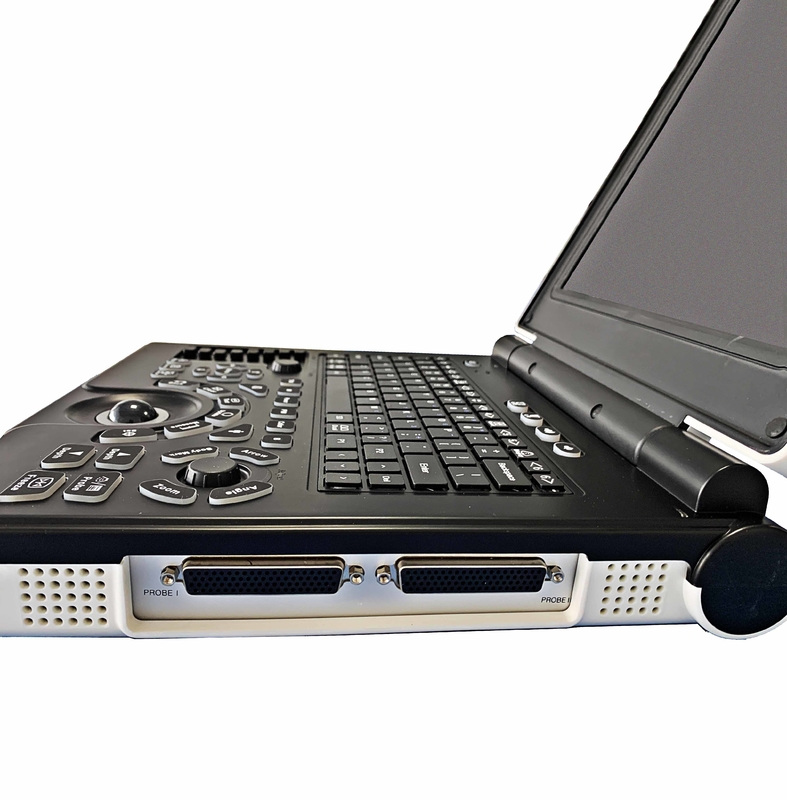

Interface ports	2 activated probe connector

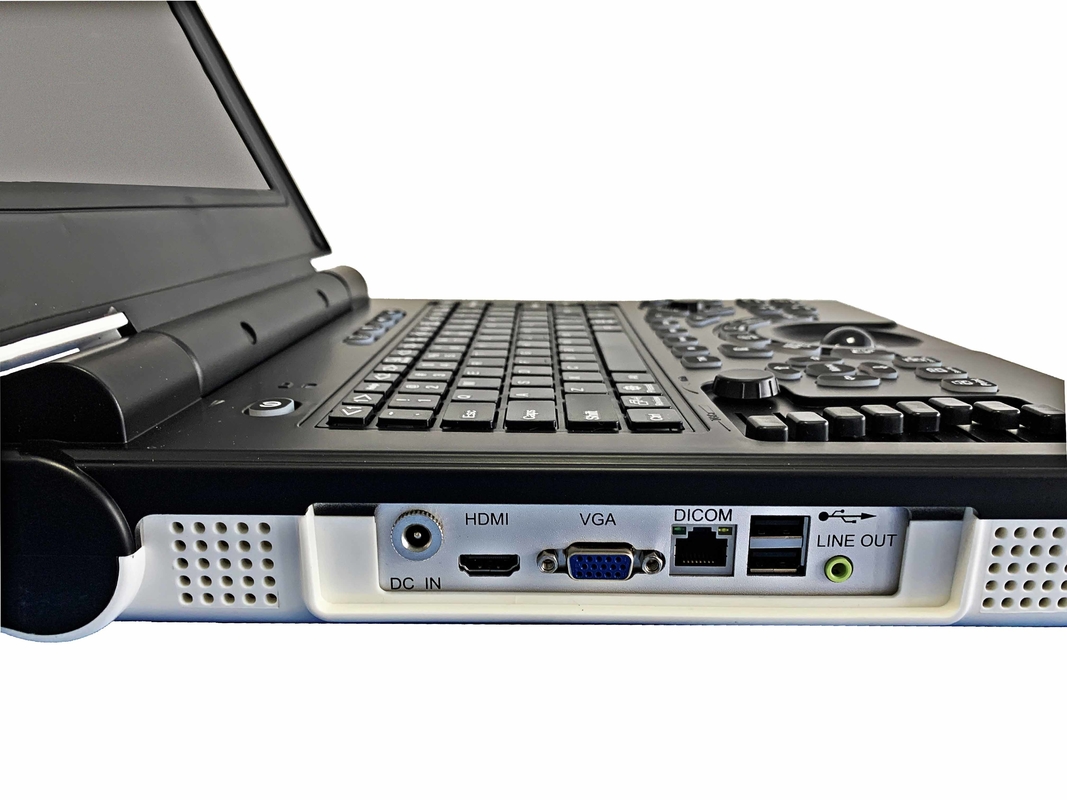

	Interface Port: HDMI, VGA, DICOM, USB, Line Out.











We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.







CE,ISO,Free sales certificate,EC declaration of conformity,MSDS,Registeration certificate for medical device,Manufacturing license,qualified industrial registerations,CO,CCPIT & ect .
