ISO 3200mAh Chargeable Doppler Ultrasound Machine Diagnostic Clinical Applications

Oem Economical And Affordable Portable 3d Ultrasound Machine Color Doppler Ultrasound Machine
 Clinical Diagnosis Doppler Ultrasound Machine Portable Doppler Ultrasound Machine
E20 is an economical all-digital portable color doppler ultrasound diagnostic system launched by XianFeng company in 2020.It is compact in appearance and powerful in function.Built-in specialized measurement software package: department of gynaecology and obstetrics, distance,perimeter,area, heart rate, slope, time, the expected date of childbirth, gestational age and fetal weight and so on the many kinds of practical measurement analysis software, stream lined body design, The machine may at any time carry out for field diagnosis, six languages interface, double probe socket, apply to stomach, of department of gynaecology and obstetrics, the urology department, small organs and blood vessels and other parts of the inspection, especially suitable for large hospital bed and clinical examination of the basic medical institutions.Is a high cost - effective instrument

Main Features:

12 inch LCD Display;
Based on Windows 7 platform operation system;
Dual transducer interface.
Support convex,linear,endocavitary,micro-convex ,transrectal probe;
Imaging mode B,B+B,4B ,B+M,PW ;CFM
3D software pre-installed;
Human and Veterinary software can change freely;
THI imaging technology;
Support 7 kinds languages(CNENRUSPORESPFRDE);
IMT automatic measure function;
Editable report page;
Support HDMI,VGA,DICOM,USB,LINE OUT；
Equipped solid state drive, make the storage safer and more reliable;
Environmental protection and low power consumption design;
3200mAh chargeable battery with management


Transducer types:





Standard configuration features



Peripheral ports: VGA, 2 USB ports, HDMI port, DICOM port, LINE OUT port

Electrical Power supply: 100-240V~50/60Hz 100VA

Li-lion battery :3.2Ah

Video & PC printer (Optional)

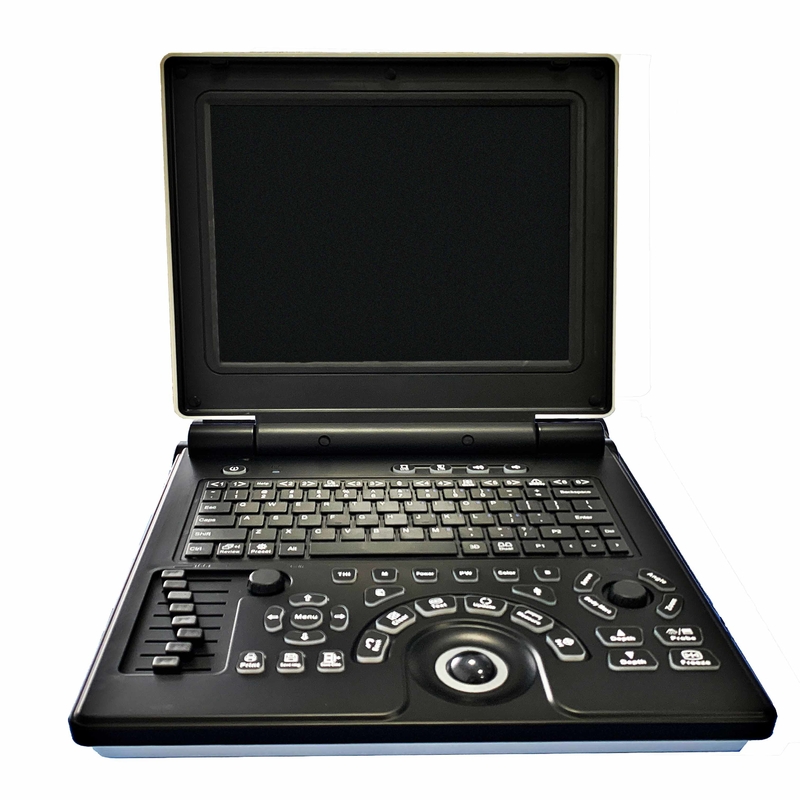

E20 Laptop Color Doppler Ultrasonic Diagnostic System


	Laptop thin and light design;
	12.1〞LCD Displayer;
	Windows 7 operation system;
	Standard key board and backlight key;
	3200mAh recharge lithium battery.
Main Parameter	Display modes: B, B/B,4B,B+M,CFM,B+CFM,PDI,B+PDI,PW;
	Gray scale: 256 levels,
	5 levels image optimization;
	THI imaging technology;
	Rich image processing technology, for instance frames average, view angle, edge enhance, Gamma ,etc
	CN,EN,RUS,POR,ESP,FR,DE 7 kinds languages;
	Display penetration depth 1~400mm;
	Dynamic range: 80~280dB adjustable;
	Application mode OB,GYN, Small organ, Urology, Pediatric, Cardiac etc;
	Preset the parameter depend on scanning organ;
	IMT automatic measurement and display results;
	15 kinds of pseudo color;
	Support guide line of biopsy puncture;
	Built-in 120G soild state drive ,make the storage safer and more reliable;
	Support frequency conversion range: 2MHz~12MHz (depend on probe type);
	Built-in editable report page ;
	Gain control: 8 segments TGC and overall gain can be adjusted respectively;
	Focus position: dynamic electron focusing.

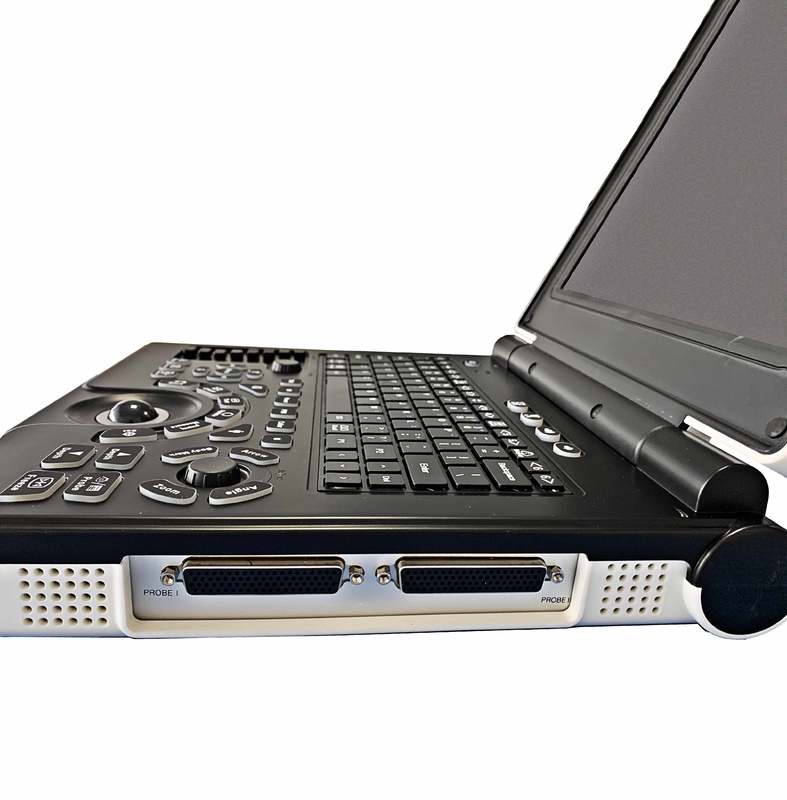

Interface ports	2 activated probe connector

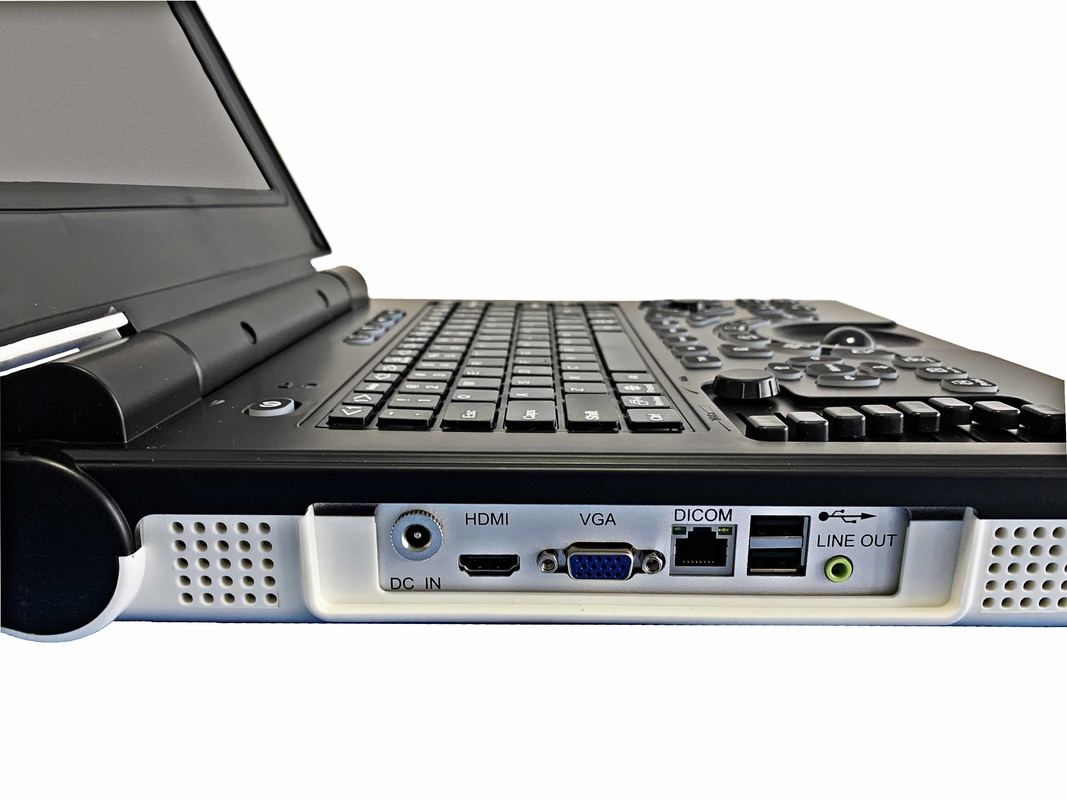

	Interface Port: HDMI, VGA, DICOM, USB, Line Out.











We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.







CE,ISO,Free sales certificate,EC declaration of conformity,MSDS,Registeration certificate for medical device,Manufacturing license,qualified industrial registerations,CO,CCPIT & ect .
