Durable Portable 2D Echo Machine Micro Convex Medical Ultrasound Machine

Durable Portable 2D Echo Machine Micro Convex Medical Ultrasound Machine

portable 2d echo machine ANTIWEAR

micro convex medical ultrasound machine ANTIWEAR

2d Ultrasound Machine Durable

Place of Origin:

Made In China

Brand Name:

Xianfeng

Certification:

CE, ISO

Model Number:

XF218

Contact Us
Request A Quote
Product Details
Product Name:
2D Ultrasound Machine For Professionals Physiotherapist Cheap
Type:
2D Ultrasound Machine For Professionals Physiotherapist Cheap
Display Mode:
B、B/B、4B、B/M、M
Output Interface:
PAL Video Output,SVGA Video Output,USB
Gray Scale:
256 Levels
Optional Probe:
Convex,Linear,Trans-vigianl;rectal
Screen:
LED Screen
Probe:
Convex;rectal Micro-convex;linear,micro-convex
Payment & Shipping Terms
Minimum Order Quantity
3-5pcs
Price
1000USD
Packaging Details
Carton
Delivery Time
5-8days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Set Per Day
Product Description
Cheap VETERINARY ultrasound machine for LIVESTOCK
Durable Portable 2D Echo Machine Micro Convex Medical Ultrasound Machine 0
Image Mutiplying Factor:
3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0
6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5
7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5

E-zoom:magnify 2 times of real time image
Dynamic Range:0~120dB ajustable
Focus Position:1,2,3 and 4-segments dynamic electron focusing
Image Processing: γ, frame ,point, line correlation, digital filtering, edge enhancement and pseudo color
Gain Control:8 segments TGC and overall gain can be adjusted respectively
Image Polarity:left and right flip, black and white flip, up and down flip
Capacity Cine Loop: real time display 256 consecutive images which are memorized successively
Permanent Storage:128 images
Display Modes:
3.5MHz/R60 convex array probe:B,2B,4B,B+M, M
5 MHz/R20 Dimpling array probe:
6.5MHz/R13 Dimpling array probe:
7.5 MHz/L40 Line array probe:
Durable Portable 2D Echo Machine Micro Convex Medical Ultrasound Machine 1


Durable Portable 2D Echo Machine Micro Convex Medical Ultrasound Machine 2


Durable Portable 2D Echo Machine Micro Convex Medical Ultrasound Machine 3
Features:

1. Mass memory , cine loop and permanent storage.
2. Radium Caved buttons and Silicon backlit buttons
3. Intelligent fluorescence trackball.
4. 8-segment TGC control.
5. 2 USB ports , Upgraded and expandable printer function;
6. 2probe connectors. Probe automatic identfication;
7. 2SVGA video outputs and PAL
8. Report page is generated automatically.

Durable Portable 2D Echo Machine Micro Convex Medical Ultrasound Machine 4

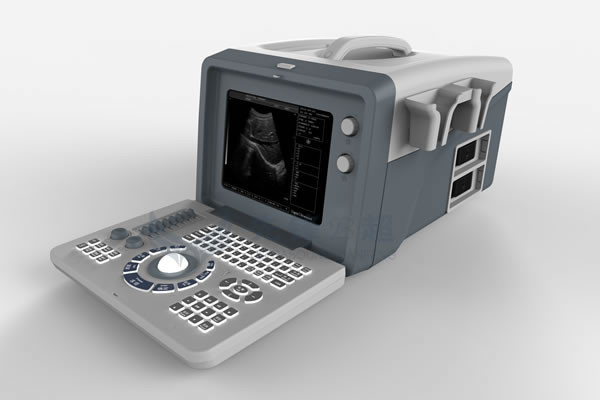

Model XF218  Portable Ultrasound Scanner
Probe 80 elements R60, 3.5MHz multi-frequency convex probe
Probe automatic identification
Focus 4 segments dynamic electron focusing
double encoder regulations
Frequency Conversion 2.5MHz/3.0MHz/3.5MHz/4.0MHz /5.0MHz
Image processing Variable aperture
dynamic apodization
Dynamic filter
Edge enhancement
Digital space-time filter
8γ corrections
16 pesudo colors
Line correlation
Frame correlation
point correlation
linear interpolation
According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Measurement and Note Distance
circumference/area
heart rate
gestational weeks(BPD,GS,CRL,FL,HL,OFD,TTD,AC)
expected date of confinement and fetus weight,etc.
full-screen character annotation,with report page
Gray scale 256 levels
Gain Control 8 segments TGC and overall gain can be adjusted respectively
Permanment storage 128 images
Cine loop 256 frames or check one by one
Output interface 2 SVGA and 2 PAL video outputs
Extended Function  USD function,priter fuction,mobile trolley, video printer, and ulatrasonic image workstation, etc.


Durable Portable 2D Echo Machine Micro Convex Medical Ultrasound Machine 5



We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.
