OEM Hospital Ultrasonic Diagnostic Instrument 120GB Ultrasound Medical Equipment

OEM Hospital Ultrasonic Diagnostic Instrument 120GB Ultrasound Medical Equipment

Hospital Ultrasonic Diagnostic Instrument 120GB

oem 120GB ultrasound medical equipment

Ultrasonic Diagnostic Instrument oem 120gb

Place of Origin:

MADE IN CHINA

Brand Name:

Xianfeng

Certification:

ISO & CE

Model Number:

E20

Contact Us
Request A Quote
Product Details
Product Name:
Doppler Ultrasound Machine
Monitor:
12" LCD HD Displayer
Built-in Capacity:
120 GB
Transducer Ports:
2
Measures:
OB/GYN/MSK
Optional:
Preinstalled 3D Software
Languages:
CN*EN*RUS*POR*ESP*FR*DE
Transducers:
TWO Active Probe Transducers
Output:
HDMI/VGA/Dicom/ 2 USB/ Line Out
Imaging Mode:
B.B/B.4b. B/M.Pw.Cfm. Pdi.B+Pdi.B+Cfm
Payment & Shipping Terms
Minimum Order Quantity
3-5pcs
Packaging Details
Carton,490*460*250mm
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Units Per Month
Product Description



Slim And Light Portable Color Doppler Ultrasound Machine
Hospital Laptop Ultrasound Medical Equipment for Sale Doppler Ultrasound Machine Ultrasonic Diagnostic Instrument



OEM Hospital Ultrasonic Diagnostic Instrument 120GB Ultrasound Medical Equipment 0



ODM E20 Economical Portable Color Doppler-You can afford !



Human body series is mainly suitable for examinations to 3D, 4D, liver, kidney, spleen, pancreas, bladder, heart,MSK and other organs , the diagnosis of department of gynecology , obstetrics and etc.
It can be widely used in the general hospital,clinics, community and family planning departments at all levels of diagnostic tests.

Veterinary series ultrasonic system and pregnancy test instruments are mainly suitable for the pigs, dogs, cats, sheep, horses, cattle, dolphins and so on .
It has been widely applied in animal husbandry, pet health care, and agricultural scientific research at home and abroad market.



OEM Hospital Ultrasonic Diagnostic Instrument 120GB Ultrasound Medical Equipment 1



Standard features



B/CFM/PW triple synchronization
5 levels Image optimization
Digital beam-forming
Un View- speckle reduction
Tissue harmonic imaging
PW automatic envelope measurement
IMT (Carotid intima-media thickness)automatic envelope measurement
Biopsy guide
Build-in editable report page

Physical specification

Dimension: 308mm(L)×310mm(W)×66mm(H)
Net Weight:4 Kg
Monitor:12inch LED
Resolution: 1024*768
Probe ports: 2-probe active ports
Harddisk:120G SSD

Imaging Modes

B,B&M,2B,4B, THI, PW, PDI ,Color

Imaging parameters

Imaging processing:Persistence, Gamma, chrome, gray map, L/R, U/D
Gary scale: 256
Dynamic range: 80-280dB
Gain control:total gain,8–slice TGC
Scanning depth:400mm max
Acoustic power:3 levels adjustable,real-time display MI/TI
Zoom:10*magnify
Cine-loop:200-2000 frames max,auto/manually play back

Measurement

General measurement:Depth, Distance, Trace Length, Ratio (D),
Area: Ellipse, Trace
Volume: 3-Distance, Ellipse, EDist
M mode: Distance, time, slope, Heart Rate
Clinical measurement package: Abdomen, OB, Gynecology, Cardiac, Urology, Small Parts

Body mark

More than 64 body marks for versatile application
With body position markers

Language supported

Chinese, English, Spanish, Russian, French, Portuguese, Germany

Transducer types:

OEM Hospital Ultrasonic Diagnostic Instrument 120GB Ultrasound Medical Equipment 2

Standard configuration features

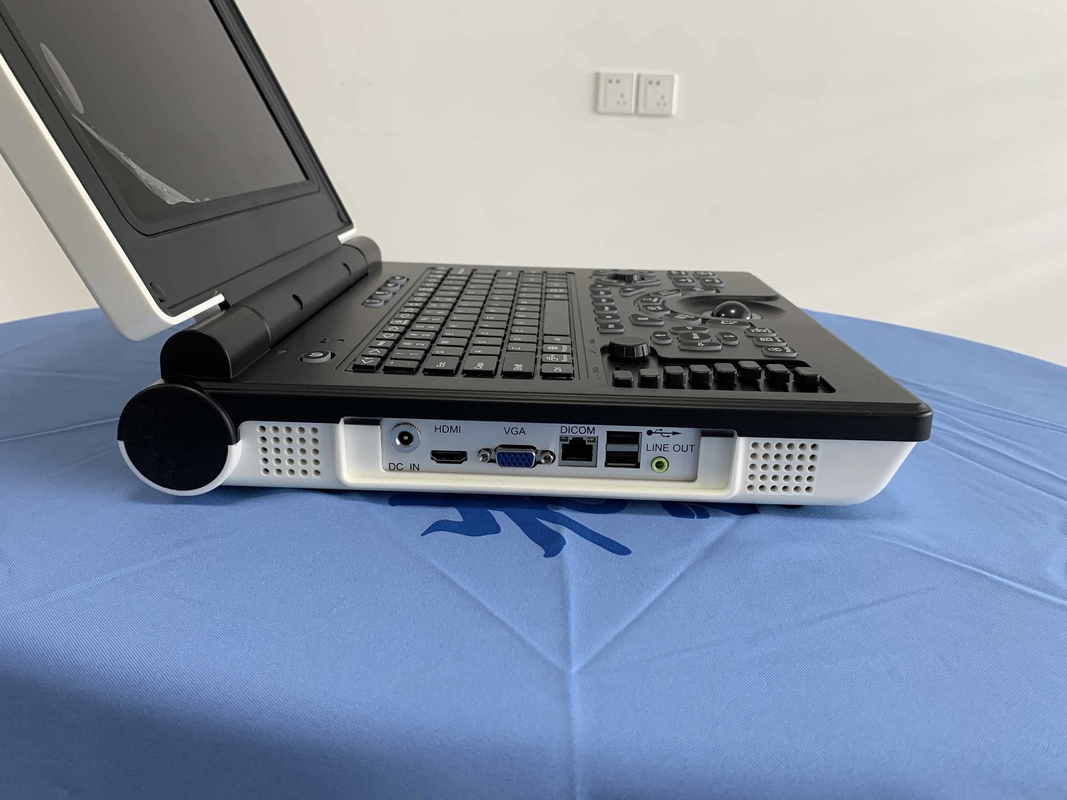

Peripheral ports: VGA, 2 USB ports, HDMI port, DICOM port, LINE OUT port
Electrical Power supply: 100-240V~50/60Hz 100VA
Li-lion battery :3.2Ah
Video & PC printer (Optional)

OEM Hospital Ultrasonic Diagnostic Instrument 120GB Ultrasound Medical Equipment 3

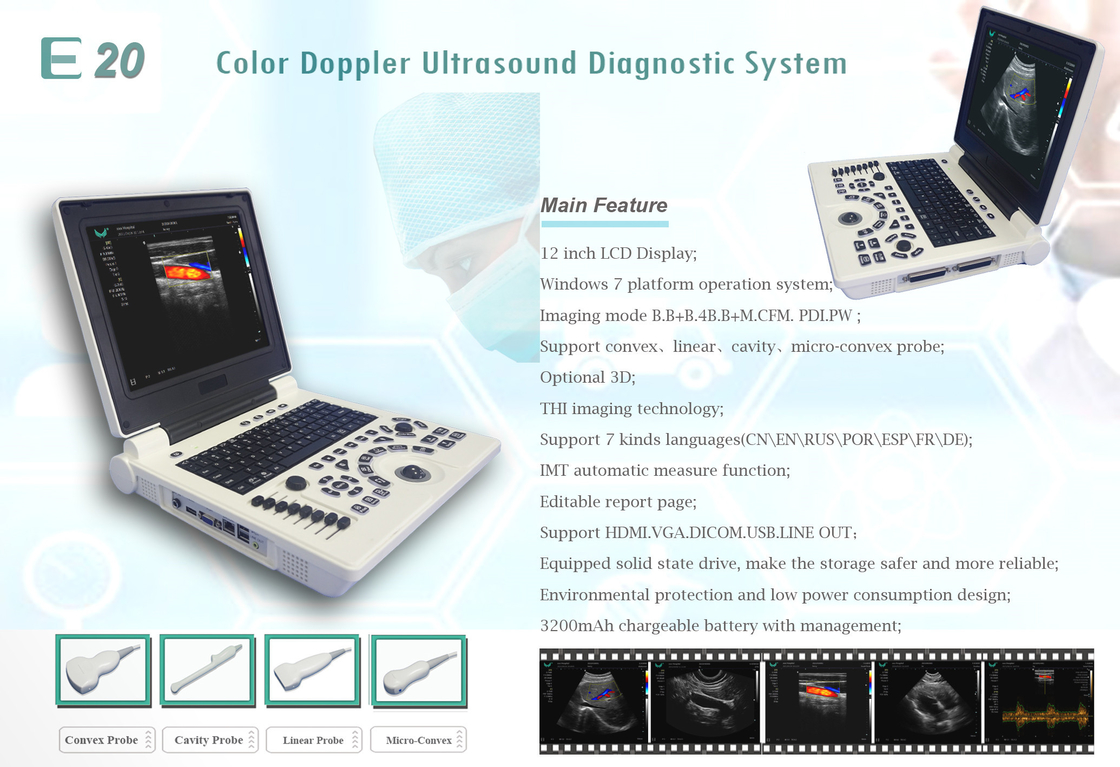

E20 Laptop Color Doppler Ultrasonic Diagnostic System



  Laptop thin and light design;
12.1〞LCD Displayer;
Windows 7 operation system;
Standard key board and backlight key;
3200mAh recharge lithium battery.
Main Parameter Display modes: B, B/B,4B,B+M,CFM,B+CFM,PDI,B+PDI,PW;
Gray scale: 256 levels,
5 levels image optimization;
THI imaging technology;

Rich image processing technology, for instance frames average, view angle, edge

enhance, Gamma ,etc

CN,EN,RUS,POR,ESP,FR,DE 7 kinds languages;
Display penetration depth 1~400mm;
Dynamic range: 80~280dB adjustable;
Application mode OB,GYN, Small organ, Urology, Pediatric, Cardiac etc;
Preset the parameter depend on scanning organ;
IMT automatic measurement and display results;
15 kinds of pseudo color;
Support guide line of biopsy puncture;
Built-in 120G soild state drive ,make the storage safer and more reliable;
Support frequency conversion range: 2MHz~12MHz (depend on probe type);
Built-in editable report page ;
Gain control: 8 segments TGC and overall gain can be adjusted respectively;
Focus position: dynamic electron focusing.

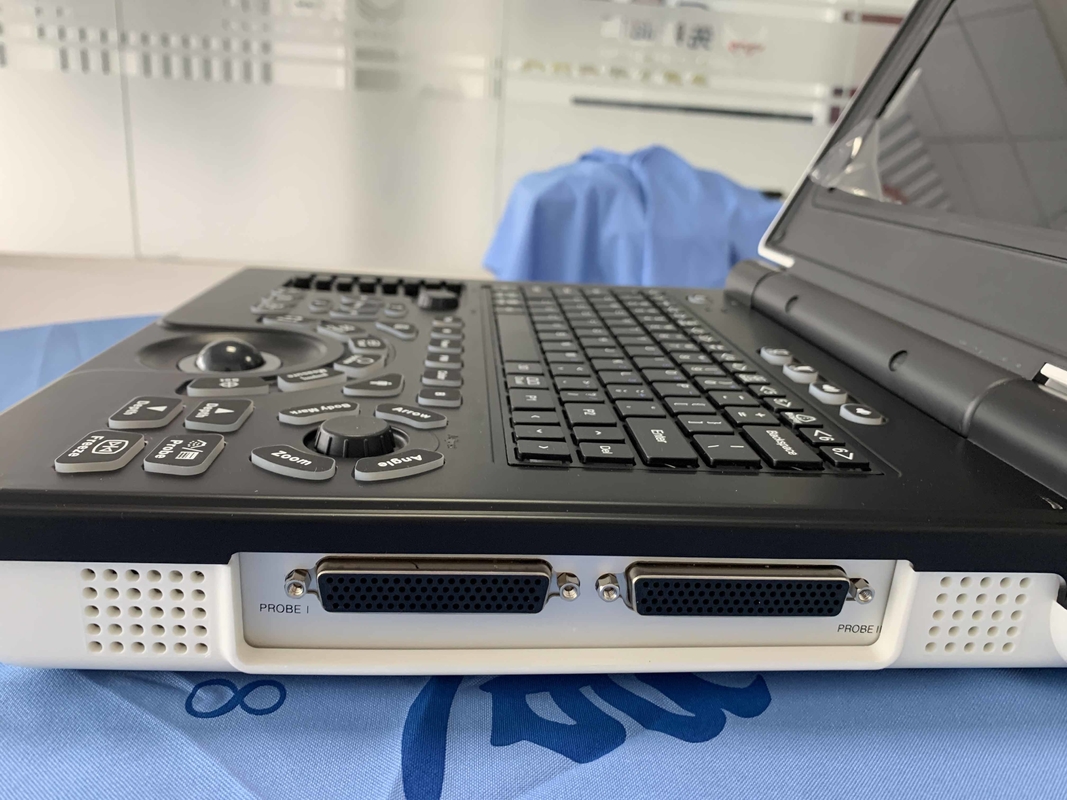

Interface ports 2 activated probe connector
Interface Port: HDMI, VGA, DICOM, USB, Line Out.





OEM Hospital Ultrasonic Diagnostic Instrument 120GB Ultrasound Medical Equipment 4



OEM Hospital Ultrasonic Diagnostic Instrument 120GB Ultrasound Medical Equipment 5



OEM Hospital Ultrasonic Diagnostic Instrument 120GB Ultrasound Medical Equipment 6




OEM Hospital Ultrasonic Diagnostic Instrument 120GB Ultrasound Medical Equipment 7



We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.



OEM Hospital Ultrasonic Diagnostic Instrument 120GB Ultrasound Medical Equipment 8



OEM Hospital Ultrasonic Diagnostic Instrument 120GB Ultrasound Medical Equipment 9



OEM Hospital Ultrasonic Diagnostic Instrument 120GB Ultrasound Medical Equipment 10



CE,ISO,Free sales certificate,EC declaration of conformity,MSDS,Registeration certificate for medical device,Manufacturing license,qualified industrial registerations,CO,CCPIT & ect .
