Product Details:
|
| Product Name: | Portable Doppler Ultrasound Scanner | E-zoom: | Magnify 2 Times Of Real Time Image |
|---|---|---|---|
| Depth Display: | ≥250mm | Optional Battery: | 10Ah,14.4V. |
| Weight: | NW 6KG | Focus Position: | Adjustable Focusing |
| TGC: | 8 TGC Control | Classifications: | Class 2 |
| Probe: | Two Probe Sockets | Imaging Mode: | PDI,PW,B,BB,BM,M |
| Type: | Ultrasound Instrument | ||
| High Light: | 15 inch Doppler Ultrasound Machine 60deg,LED Doppler Ultrasound Machines 60deg,color ultrasound machine 60deg |
||

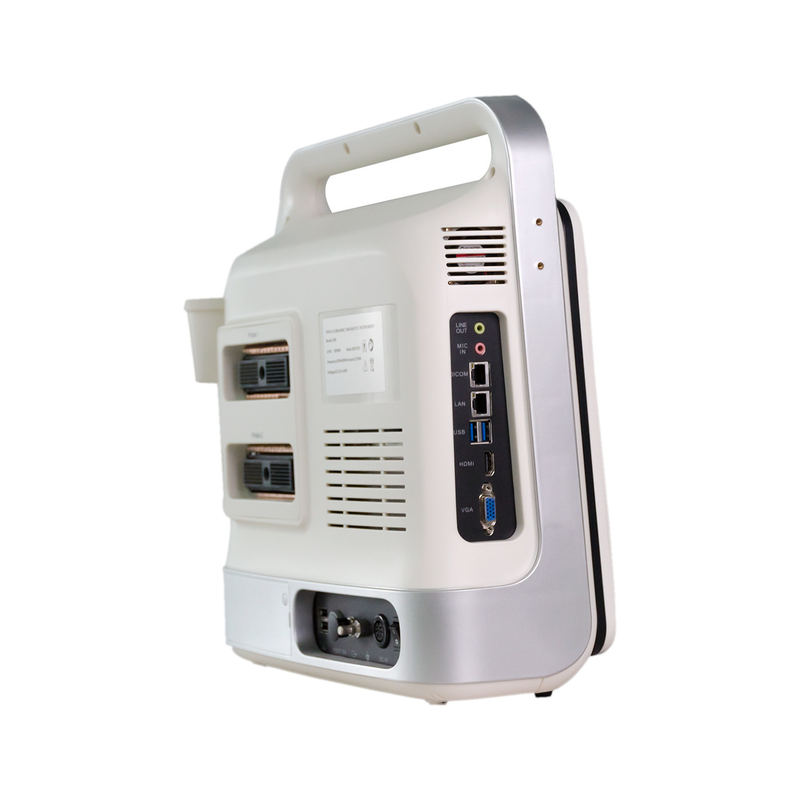

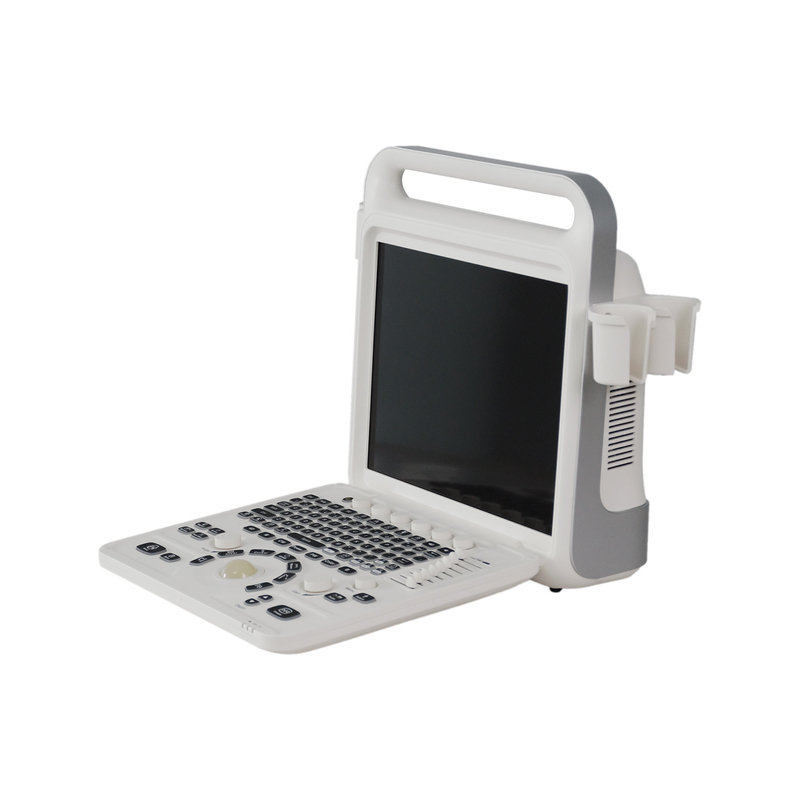

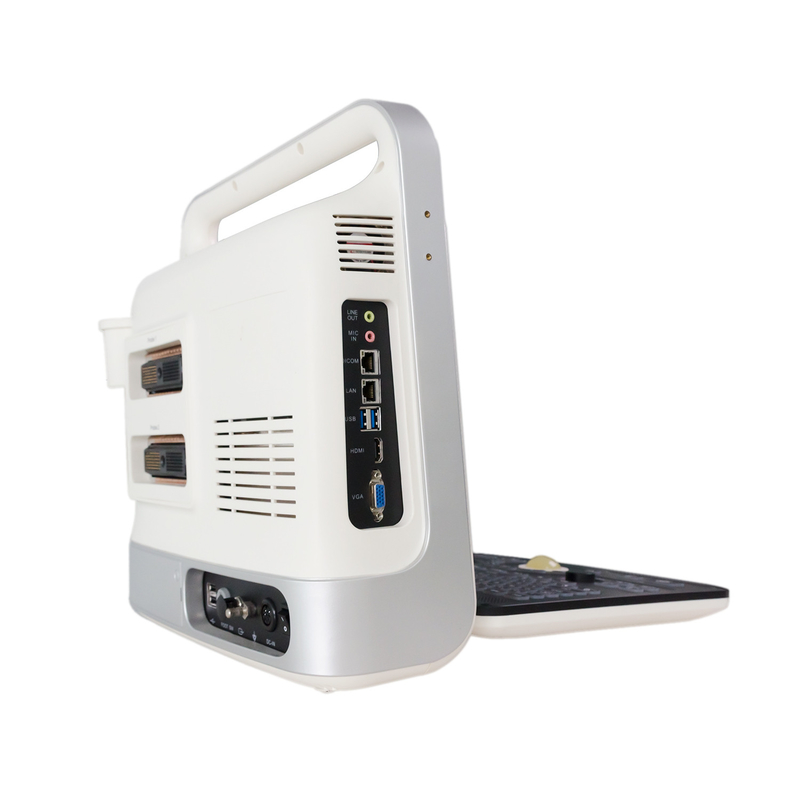

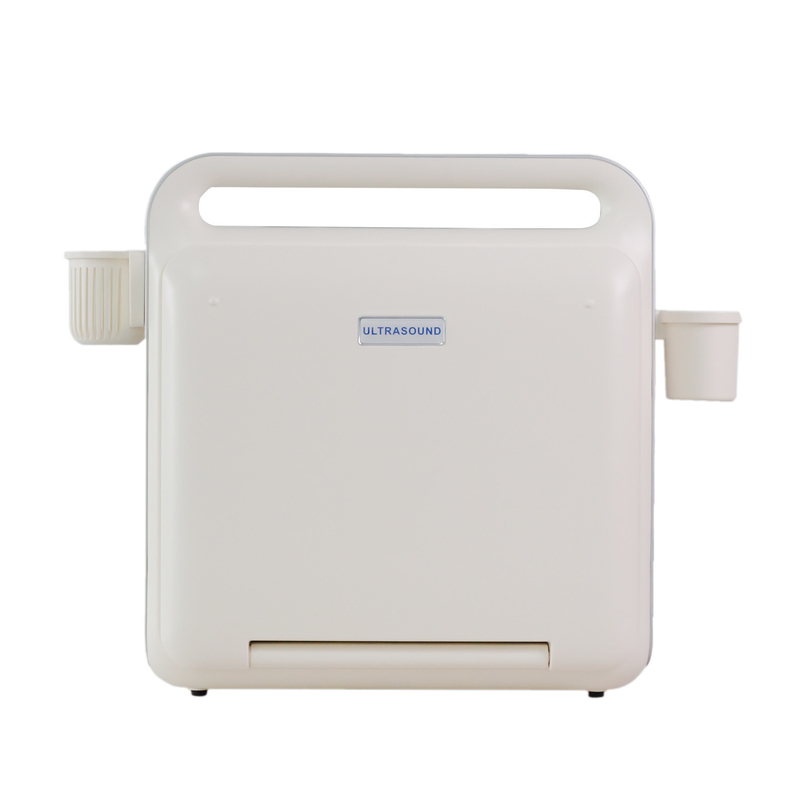

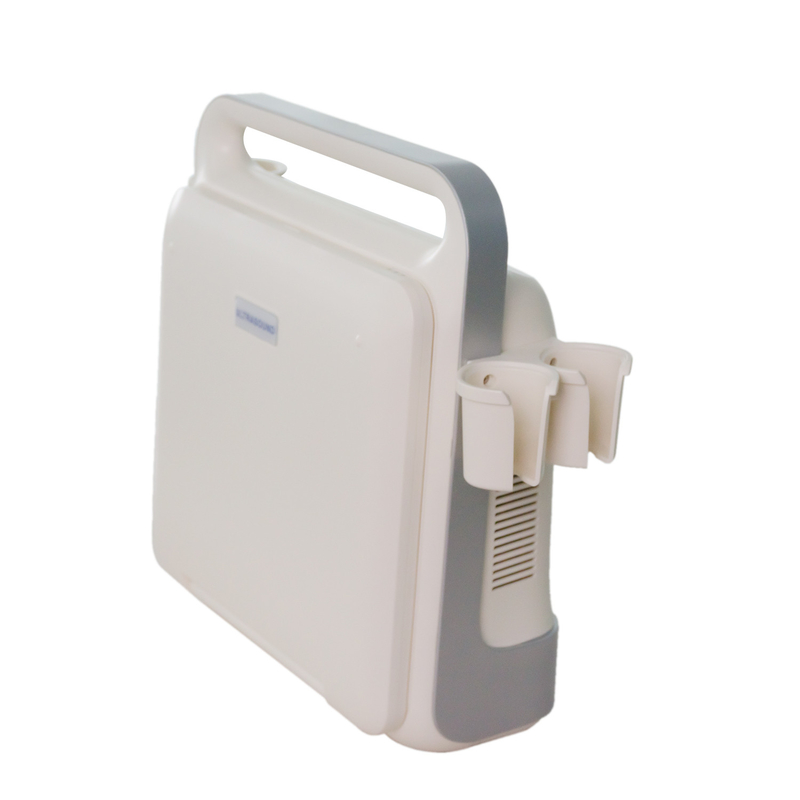

15'inch LED Displayer Portable Doppler Ultrasound Machine
Measurement / Calculation
--General Measurement
--B mode: distance, area (track method, rectangle method, ellipse method), perimeter (track method, rectangle method, ellipse method), volume (double plane method, area length method, ellipsoid method), angle, ratio, stenosis rate.
--M Mode:Slope, ratio, stenosis rate, heart rate, time.
--D Mode:Doppler blood flow measurement, velocity, acceleration, pressure gradient, time, velocity integral, pulsatility index,resistance index.
--Gynecological measurement and analysis
--Uterus, endometrium, ovary, cervix, follicle measurement.
Specifications:
*B/2B/4B/M/CFM/PDI/PW
*THI(Tissue Harmonic Imaging)
*Real-time 2D and Color Dual Mode.
*Real-time 2D and Doppler Double Synchronization.
*Real-time 2D ,Doppler and Color triple synchronization.
*Free hand 3D imaging(Optional)
*Four-dimensional Imaging (4D Optional)
*Automatic measurement and analysis vascular intima
*Extended imaging
*Compound Imaging
*Probe Interface:Two Active Probe Interface
*Multimedia and peripheral devices:Compact Disc-Recordable,USB portable storage device.
*Digital Printer / Video Printer / Laser Printer / Ink-Jet Printer
*Memory Function:Image Storage,Video Storage,Cineloop(≥300 Fram),Solid disk storage space≥120G.
*Puncture guide line:All kinds of probes can register puncture guide line function.
*The puncture guide line Angle adjustable and can be pre-defined.
*Language:Chinese, English, Russian, Spanish, Portuguese, French.15'inch LED Displayer Portable Doppler Ultrasound Machine
Configuration probe
The configuration probe of the instrument showed as below:
| Type | Scan model | Frequency range | radius of curvature | Scan width | Scan angle | |
| TC60A | Convex | 2.0MHz~5.0MHz | R60mm | _ | 60° | |
| TL40A | Linear | 5.0MHz~12.0MHz | _ | L40mm | _ | |
| TC10A | Cavity | 5.0MHz~8.0MHz | R10mm | _ | 150° | |
| TC20A | Micro-convex | 2.0MHz~4.0MHz | _ | _ | 90° |
