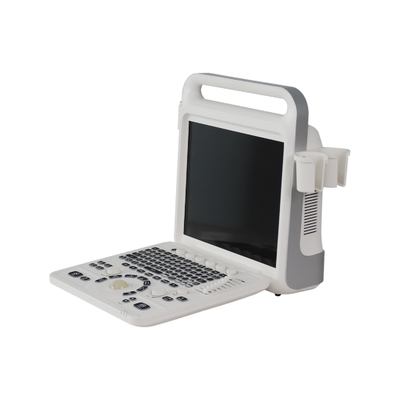

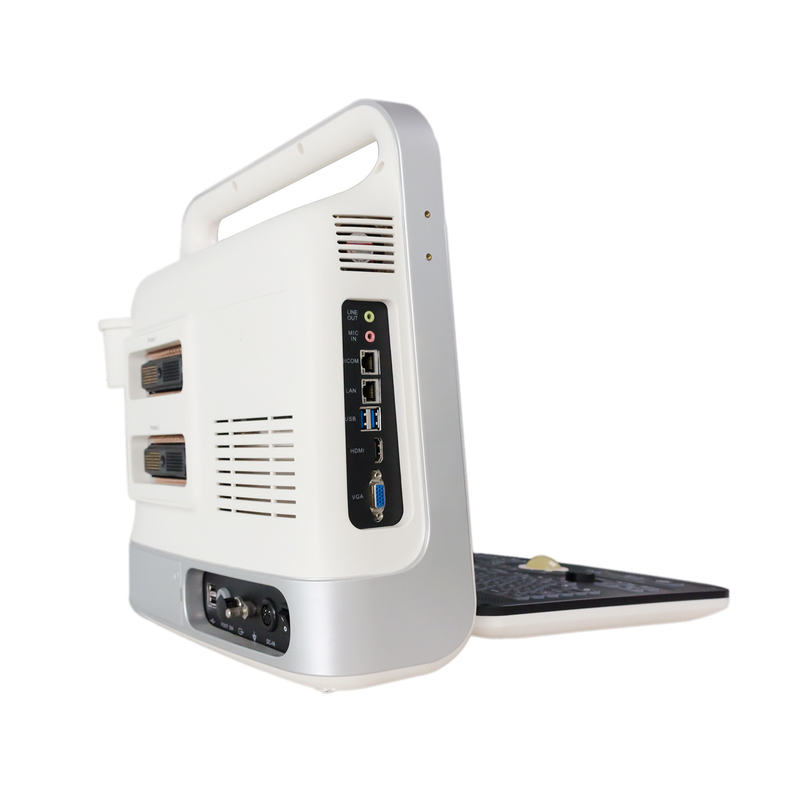

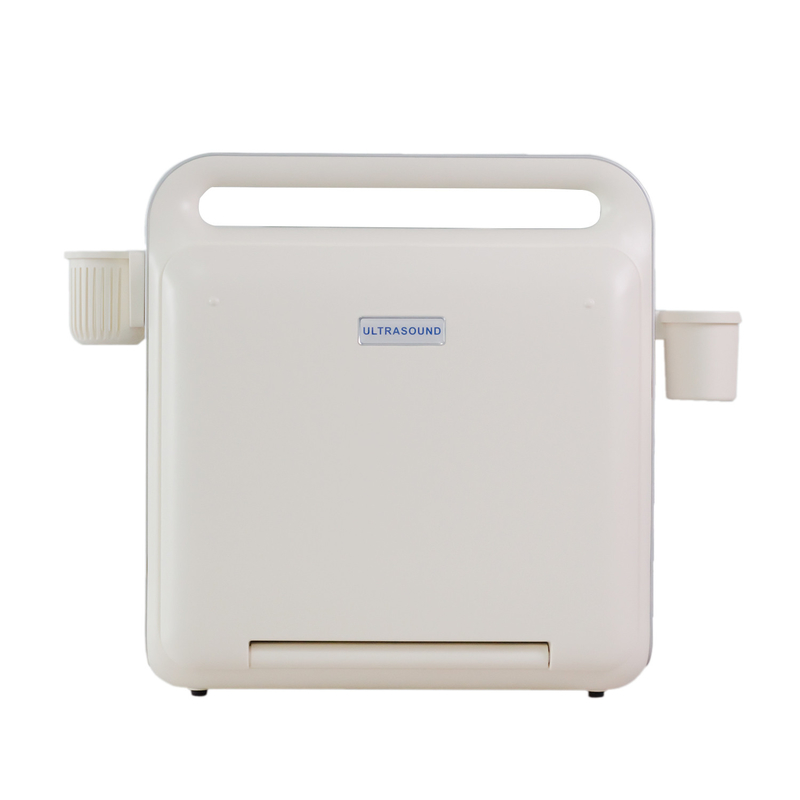

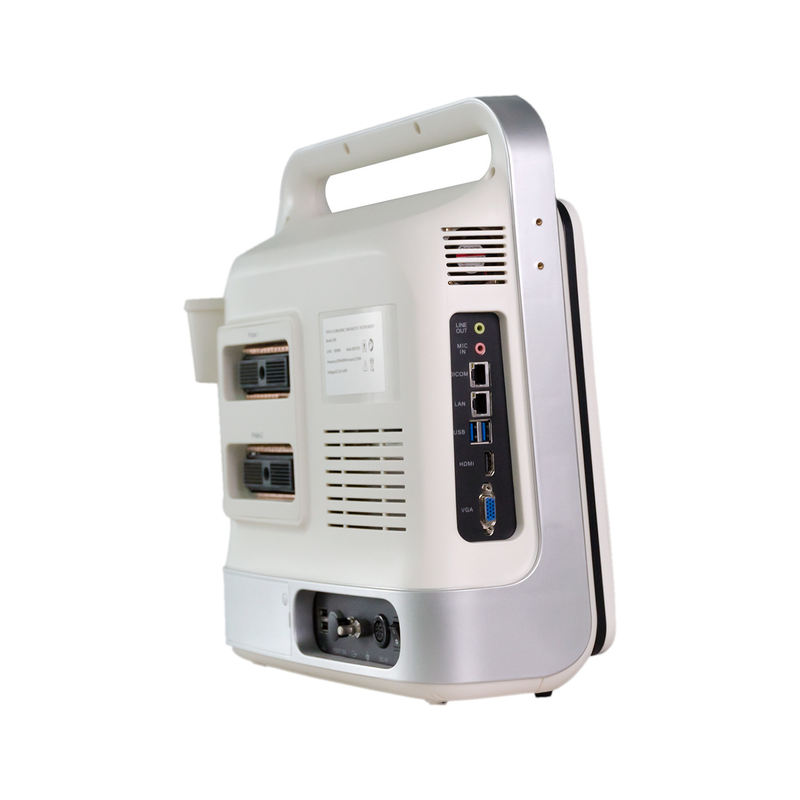

Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse

Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse

Xianfeng 4d portable vet ultrasound machine

Xianfeng vet ultrasound machine Real-time

Real time 4d ultrasound machine

Place of Origin:

Made In China

Brand Name:

Xianfeng

Certification:

CE, ISO

Model Number:

E60

Contact Us
Request A Quote
Product Details
Product Name:
VET Doppler Ultrasound Machine
Dynamic Rang:
0~120dB Adjustable
Display:
15" LED
E-zoom:
Magnify 2 Times Of Real Time Image
Optional Battery:
10Ah,14.4V 1.5h Working Hours
Focus Position:
Dynamic Electron Focusing Adjustable
Warranty:
24 Months For Main Unit
Type:
2D /3D /4D Color Doppler
Weight:
Gross Weight 6KG
Color:
White
Payment & Shipping Terms
Minimum Order Quantity
3-5pcs
Packaging Details
Carton
Delivery Time
1-3 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Set Per Day
Product Description

Veterinary or Human Portable Doppler Ultrasound Machine

Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 0

Specifications:
*B/2B/4B/M/CFM/PDI/PW
*THI(Tissue Harmonic Imaging)
*Real-time 2D and Color Dual Mode.
*Real-time 2D and Doppler Double Synchronization.
*Real-time 2D ,Doppler and Color triple synchronization.
*Free hand 3D imaging(Optional)
*Four-dimensional Imaging (4D Optional)
*Automatic measurement and analysis vascular intima
*Extended imaging
*Compound Imaging
*Probe Interface:Two Active Probe Interface
*Multimedia and peripheral devices:Compact Disc-Recordable,USB portable storage device.
*Digital Printer / Video Printer / Laser Printer / Ink-Jet Printer
*Memory Function:Image Storage,Video Storage,Cineloop(≥300 Fram),Solid disk storage space≥120G.
*Puncture guide line:All kinds of probes can register puncture guide line function.
*The puncture guide line Angle adjustable and can be pre-defined.
*Language:Chinese, English, Russian, Spanish, Portuguese, French.






Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 1


Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 2

Ultra Portable,Ultra flexible,Ultra affordable,Ultra durable,Ultra stable




Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 3



Measurement / Calculation
--General Measurement
--B mode: distance, area (track method, rectangle method, ellipse method), perimeter (track method, rectangle method, ellipse method), volume (double plane method, area length method, ellipsoid method), angle, ratio, stenosis rate.
--M Mode:Slope, ratio, stenosis rate, heart rate, time.
--D Mode:Doppler blood flow measurement, velocity, acceleration, pressure gradient, time, velocity integral, pulsatility index,resistance index.
--Gynecological measurement and analysis
--Uterus, endometrium, ovary, cervix, follicle measurement.


Obstetric measurement and analysis/Urology measurement and analysis



Measurement report
Obstetric measurement report, gynecological measurement report, cardiac measurement report, urinalysis and other measurement reports. Automatically store measurement results and generate reports symbol
≥95 kinds of symbol position markers with probe position.Through the intuitive body mark detail interface quickly select the body mar.Text markup, presettable text content.Arrow mark, support multiple arrow marks and adjustable direction

General Specifications
Package Size and weight: 470mm(L)* 335mm(W)* 560mm(H)/ 11 KG
power source: 19V,10A DC IN, Support battery power
Optional battery:10Ah,14.4V.
Battery Operating Time:≥2 hours Standby time: ≥3.5 Hous
Displayer: 15 inch high brightness and high contrast LCD


Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 4

Configuration probe
The configuration probe of the instrument showed as below:


Type Scan model Frequency range   radius of curvature Scan width Scan angle
TC60A Convex 2.0MHz~5.0MHz   R60mm _ 60°
TL40A Linear 5.0MHz~12.0MHz   _ L40mm _
TC10A Cavity 5.0MHz~8.0MHz   R10mm _ 150°
TC20A Micro-convex 2.0MHz~4.0MHz   _ _ 90°





Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 5



Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 6



Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 7



Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 8



Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 9

Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 10



We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.



Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 11



Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 12



Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 13



Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 14



Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 15



Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 16



Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 17



Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 18



Xianfeng 4D Portable Vet Ultrasound Machine Real Time for goat horse 10



We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.
