Pediatric Cardiology Ultrasound Machine With Battery HDMI Output

Pediatric Cardiology Ultrasound Machine With Battery HDMI Output

HDMI pediatric cardiac ultrasound

cardiology ultrasound machine battery

doppler cardiology battery

Place of Origin:

Made In China

Brand Name:

Xianfeng

Certification:

CE, ISO

Model Number:

E80

Contact Us
Request A Quote
Product Details
Product Name:
Doppler Ultrasound Machine
Dynamic Rang:
0~120dB Adjustable
Battery:
Built In Battery
Transducers:
2 Active Probe Transducers. Automatical Shift
Output:

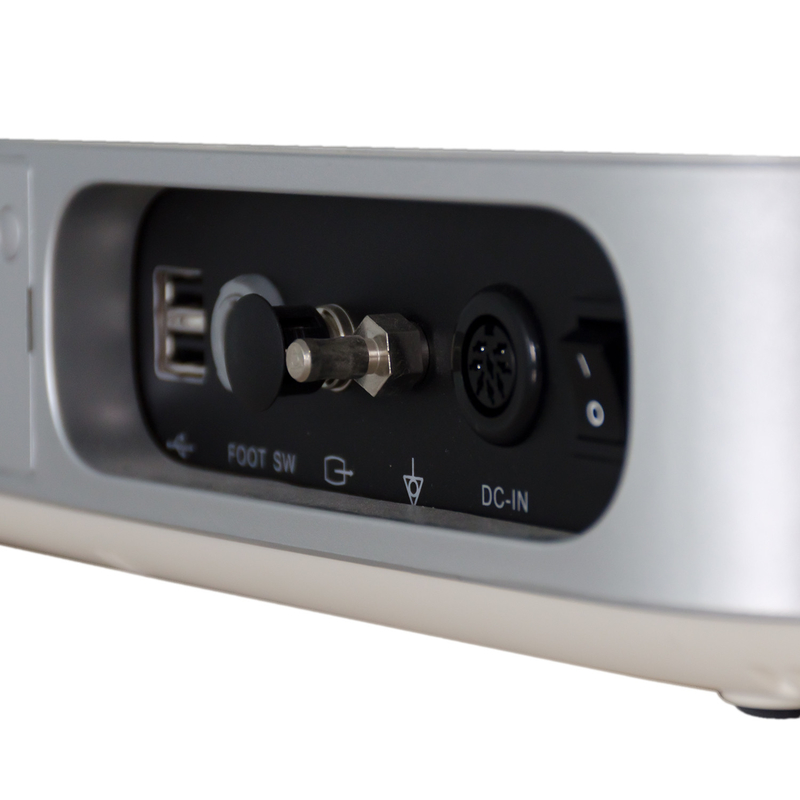

4 USB. PAL-Video .VGA Video.Dicom.HDMI.Foot Sw.
Imaging Mode:
M Mode ,B Mode ,Cfm,Pdi,Pw
Application Mode:
Abdomen, Kidneys,Urology, Cardiology,OB,GYN
Gray Scale:
256 Scales
Depth Display:
≥250mm
Monitor:
15 Inch LCD,15 Inch LED Medicinal Monitor
Frequency:
Linear Probe 7.5 MHz/10.0MHz
Type:
Portable Ultrasonic Diagnostic Devices
Payment & Shipping Terms
Minimum Order Quantity
3-5pcs
Packaging Details
Carton
Delivery Time
2 -3 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Set Per week
Product Description

Color Doppler Diagnostic System Doppler Ultrasound Machine Handheld Device

Cardiology Use Ultrasound Color Doppler Diagnostic System with battery



Pediatric Cardiology Ultrasound Machine With Battery HDMI Output 0

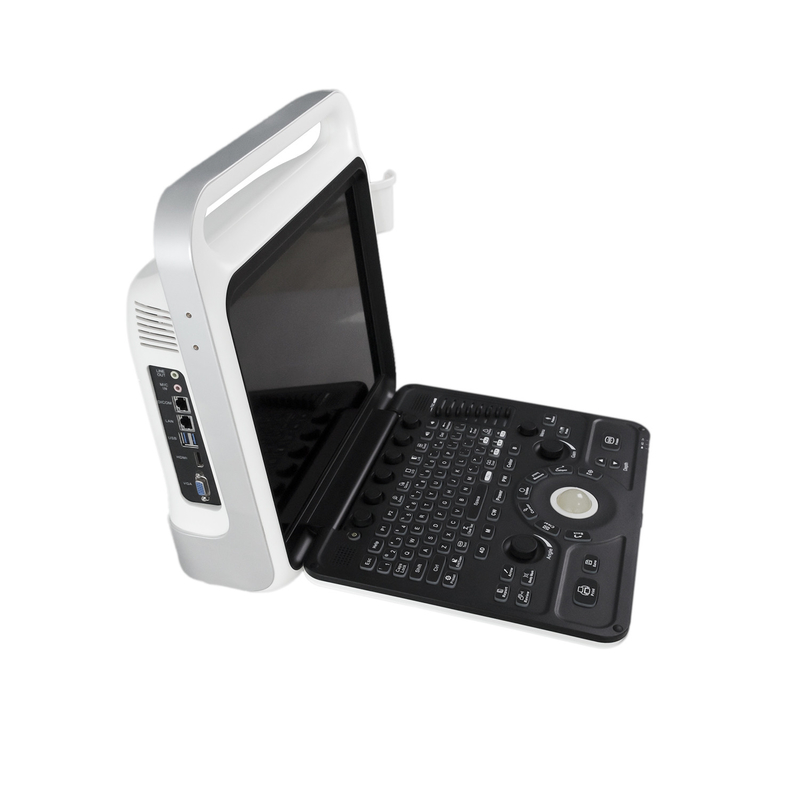

(E80)XF3800 Portable Ultrasound Color Doppler Diagnostic Scanner





--Dynamic range: 0~120dB adjustable;

--Display mode: B,B/B,M,B/M,CFM,CMF/B,PDI,B/PW,CW etc mode;

--Application mode: abdomen, kidneys, urinary system, obstetrics, gynecology, pelvic, small organ, muscle tissue, organ, breast, heart and other 11 kinds of models;



• 15-inch LCD display with up and down adjustment

• Optional 3D or 4D

• Compact fuselage, easy to move

• Flexible lifting panel • Trapezoidal imaging

• Reverse Tissues Harmonic Imaging

• Two-level backlit keyboard, more convenient to operate

• lt can meet the needs of clinical diagnosis and improve the confidence of diagnosis.

• Broadband frequency shift harmonic imaging

• It can effectively reduce noise and improve contrast resolution



XF3800 (E80) color doppler ultrasound system applications include abdomen, obstetrics, gynecology, blood vessels, small organs, urology,neonates and pediatrics. Includes scanning modes such as B / CFM / PDI / PW / CW / M and provides excellent resolution and sensitivity. Support convex array probe, linear array probe, convex probe, cavity probe, phased array probe, 4D probe. Integrated network ultrasound workstation, support for DICOM transmission. Using embedded computing system, the system is safe, stable and high-speed operation into one.The XF3800 is a value choice beyond your expectation!







Work interface

Press 【Probe】button to enter into probe selection interface

The probe selection interface includes: probe list and application mode list

  • Probe list: List all the probe mode which supported by this system ;
  • Application mode list: List the applied mode of the selected probe can support, the users can select the corresponding mode according to need.
  • This system supportsswitching and selecting between two probes.



• Intelligent space composite imaging Intelligent spatial composite imaging technology, through spatial multi-angle deflection scanning, updates echo signals received from different angles in real time, continuously updates fusion imaging, effectively inhibits random noise and clutter signals under the premise of guaranteeing the temporal resolution, enhances the target organization display, and improves the spatial resolution of the image.High resolution medical LCD.

• Intelligent speckle noise suppression imaging Intelligent speckle noise suppression technology can intelligently identify different tissue information in different spatial dimensions, inhibit the display of speckle noise edge information, and make the image more exquisite





Pediatric Cardiology Ultrasound Machine With Battery HDMI Output 1





Pediatric Cardiology Ultrasound Machine With Battery HDMI Output 2



Main Functions:

Having a full digital beam forming technology Scanning mode: Convex array, lumen, high-frequency linear array, phased array;4D probe(Optional) Probe parameters * Convex: R60 (R50) Center frequency 3.5MHz (range: 2-6MHz) * Linear: Center Frequency 7.5MHz (Range: 5-12MHz) * High-frequency Linear : Center frequency 9MHz (range: 5-13MHz) * Cavity probe(TVS): center frequency 6.5MHz (range: 5-10MHz) * Micro-convex: center frequency 3.5MHz (range: 3-6MHz) * High-frequency micro-convex probe: the center frequency of 5MHz (range: 4-8MHz) * Phased array probe: 3 MHz (range: 2-5MHz) * 4D probe : Center frequency 3 MHz (range: 2-5MHz)



XF3800(4D) Portable full digital color doppler ultrasonic system



--Image mode: digital beam forming, tissue harmonic imaging;

--IMT:Automatic measurement and analysis vasculer intima;

--Acoustic output: Mechanical index and thermal index real-time display;

--Acoustic power:Step is adjustable, real-time display;

--Gray scale: 256 scales;

--Depth display: ≥250mm;

--B/D triple-purpose: linear array: B/PW D; convex array: B/PW D;

--Pseudo color processing: 16 kinds of pseudo color encoding can optional;

--Gain adjusts: 8 segments TGC, B/M/D/C is independently adjustable; TGC curve can show and hide automatically;

--Image magnification: picture in picture zoom in and zoom part function;

--Self-motion optimize function: Built-in multiple check type, according to different inspection organs, preset best image check condition, reduce the adjusting operation keys;

--One-click optimization function: preset several parameters adjusting focus on a button, a key to realize image fast optimization;





Measurement Item Function
Distance Measure the distance between two points.
Area Measuring the area of the closed area (ellipse method, the trace method)
Circumference Measuring the circumference of the closed area(ellipse method, the trace method)
Volume Measure the volume of a target object (ellipse method, the trace method , BI-plan method)
Ratio Any length or area between two line segments, and calculate the ratio of length or area .
Angle Measuring the Angle between the two intersecting plane



Pediatric Cardiology Ultrasound Machine With Battery HDMI Output 3



Measurement and calculation:


--Distance, circumference, area, volume, angle, ratio, and stenos rate.
--M mode routine measurement: Heart rate, time, distance, speed, ratio, etc.
--Gynecology measurement: Uterus, cervix, endometrial, ovary, follicular.
Obstetrics measurement:
EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables).Cardiology measurement: LV measurement.
Urology measurement:
Prostate volume, displacement volume, bladder capacity, and residual urine output.
PW measurements: Time, speed, Heart Rate, RI, PI, etc.
Other measurement:
Slice volume measurement, hip joint angle measurement.
Image storage: Image storage, video storage, cine loop, disk storage capacity≥160G;
Patient data: Medical record management, report inquiry and printing, image video output( HDD ,USB,Optional DVD-RW),built-in
ultrasound workstation;


Reporting system:


automatic report generation system, and can be full screen characters in both Chinese and English editor;
Output interface:SR323,USB,DICOM interface;



Pediatric Cardiology Ultrasound Machine With Battery HDMI Output 4



Main Technical Indexes:



The performance requirements of gray-scale imaging mode

The color ultrasonic at the gray-scale imaging performance mode should comply with the provisions of the

table 2.1

Table 2.1 At the Gray-scale imaging mode the performance of the probe



Performance indexes Probe type and nominal frequency
2.0≤f<4.0 2.0≤f<5.0 5.0≤f<8.0 5.0≤f<10.0
a) probe type and model phased array (type TP16A)

Convex array

(type TC60A)

Cavity

(type TC10A)

Linear array

(type TL40A)

b) nominal frequency (MHz) 3.0 3.5 6.5 7.5
c) Scan depth(mm) ≥140 ≥160 ≥40 ≥50
d) Lateral resolution (mm)

≤3(depth≤80)

≤4(80

≤3(depth≤80)

≤4(80

≤2(depth≤30) ≤2(depth≤40)
e) Axial resolution (mm) ≤2(depth≤80)

≤2(depth≤80)

≤3(80

≤1(depth≤40) ≤1(depth≤50)
f) Blind area (mm) ≤7 ≤5 ≤4 ≤3
g) Transverse geometry precision (%) ≤20 ≤15 ≤10 ≤10
h) Longitudinal geometric location accuracy (%) ≤10 ≤10 ≤5 ≤5
i) Slice thickness (mm) ≤5 ≤5 ≤5 ≤5
j) Perimeter and area measured deviation (%) ≤±20 ≤±20 ≤±20 ≤±20
k) M mode time display error (%) ≤±10 ≤±10 ≤±10 ≤±10





Pediatric Cardiology Ultrasound Machine With Battery HDMI Output 5



Pediatric Cardiology Ultrasound Machine With Battery HDMI Output 6





Pediatric Cardiology Ultrasound Machine With Battery HDMI Output 7Pediatric Cardiology Ultrasound Machine With Battery HDMI Output 8



Pediatric Cardiology Ultrasound Machine With Battery HDMI Output 9



Pediatric Cardiology Ultrasound Machine With Battery HDMI Output 10



We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.
