SGS Cardiology Color Ultrasound Scanner 220V Handheld Doppler Ultrasound Device

SGS Cardiology Color Ultrasound Scanner 220V Handheld Doppler Ultrasound Device

6.55KGS Cardiology color ultrasound scanner

6.55KG 220V handheld doppler ultrasound device

SGS color ultrasound scanner 6.55KG

Place of Origin:

SICHUAN, China

Brand Name:

Xianfeng

Certification:

CE, ISO,SGS

Model Number:

XF3800

Contact Us
Request A Quote
Product Details
Product Name:
Doppler Ultrasound Machine
Display:
15 Inch LED Screen
Weight:
6.55 KGS
Input Power:
220V
Imaging Mode:
B,B/B,4b,B/M,Pw,Cfm,Pdi,B+Pdi,B+Cfm
Warranty:
18 Months,2 Years
Application:
Hospital,OB/GYN,Emergency & ICU,Abdominal,Vascular Access
Monitor:
15 Inch LCD,15 Inch LED Medicinal Monitor
Color:
Silver,White,Grey
Name:
Portable 4D Ultrasound Scanner
Payment & Shipping Terms
Minimum Order Quantity
3-5pcs
Packaging Details
Carton
Delivery Time
5-8days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Set Per Day
Product Description



Full Digital Color Doppler System Medical Doppler Ultrasound Machine

Cardiology use ultrasond Color Doppler System Ultrasound Machine

SGS Cardiology Color Ultrasound Scanner 220V Handheld Doppler Ultrasound Device 0

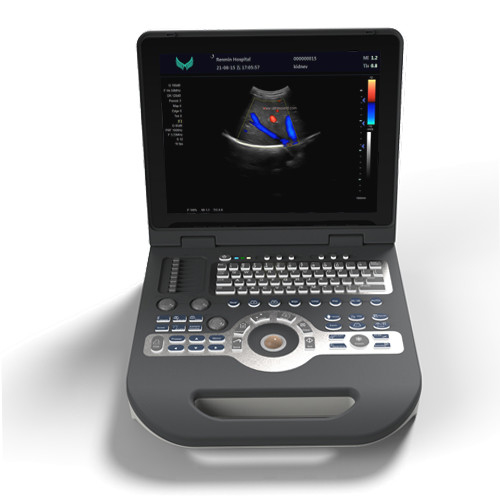

XF3800 Laptop Ultrasound Color Doppler Diagnostic Scanner


XF3800 is a laptop full digital color doppler ultrasound diagnosis system, It is a research and development of XIANFENG team combined with market demand in the original car type main based on the development and design new style, full blood flow image clarity, auxiliary functions such as adding PW envelope and three imaging modes and practical features such as real-time synchronization.It is widely used in the examination of abdomen,gynecology, obstetrics, urology, blood vessels, heart, bone and small organs, especially in the clinical examination of large medical institutions and primary medical system.It's a cost-effective instrument.



Operating environment

Operating ambient temperature:+5℃~+40℃ Relative humidity:≤80%

Atmospheric pressure: 700hPa—1060hPa Power supply:AC220V±22V,50Hz±1Hz Plug seat shall have independent power supply.

Be far away from strong electric field, strong magnetic field equipment and high voltage equipment



SGS Cardiology Color Ultrasound Scanner 220V Handheld Doppler Ultrasound Device 1



Main Features:


.Real-time triple synchronization (B, PW, CFM)
·15 inch LED screen

·Built-in 128G solid state drive,External USB storage
·Image optimization, Multi-Beam
·Imaging Modes: 2D, 3D, Color/PW/Power



·Depth range:50-360mm
.Built-in Battery
.Tissue Doppler, Free Steering M-Mode.
.Probe Optional: Convex probe, Trans-vaginal probe, micro-convex probe,linear probe, trans-rectal probe.



Range of application:


This color doppler ultrasound systemic applications include abdominal, obstetric, gynecological, cardiac, vascular, urinary, small organ, breast, pediatric and neonatal imaging, fetal heart imaging, puncture, etc.


Probe parameters:


--Convex: R60 (R50) Center frequency 3.5MHz (range: 2-6MHz)

--Cavity probe(TVS): center frequency 6.5MHz (range: 5-12MHz)
--Micro-convex: center frequency 3.5MHz (range: 3-6MHz)


--Linear: Center Frequency 7.5MHz (Range: 5-12MHz)
--High-frequency micro-convex probe: the center frequency of 5MHz (range: 4-8MHz)



Notebook full digital color ultrasound diagnosis system



--Having a full digital beam forming technology
--Scanning mode: Convex array, Vaginal, high-frequency linear array, phased array;

--Application mode: abdomen, gynecology, obstetrics, superficial organ, urologist, heart and user defined model 1-4, total ten models;
--Image mode: digital beam forming, tissue harmonic imaging;

--Dynamic range: 0~120dB adjustable;
--Display mode: B,B/B,M,B/M,CFM,CMF/B,PDI,B/PW, total eight mode;
--Acoustic output: Mechanical index and thermal index real-time display;
--Acoustic power:Step is adjustable, real-time display;
--Gray scale: 256 scales;



--Image magnification: picture in picture zoom in and zoom part function;
--Image processing: Edge enhancement: Multilevel adjustable

--Frame average: Multilevel adjustable
--Line average: Multilevel adjustable
--Focus Optimization: Multilevel adjustable
--Gray Restrain: Multilevel adjustable
--Gamma correction: Multilevel adjustable
--Contrast: Adjustable
--Brightness: Adjustable


--Depth display: ≥250mm;
--B/D dual-purpose: linear array: B/PWD; convex array: B/PWD;
--Pseudo color processing: 16 kinds of pseudo color encoding can optional;
--Gain adjusts: 8 segments TGC, B/M/D/C is independently adjustable; TGC curve can show and hide automatically;



--Self-motion optimize function: Built-in multiple check type, according to different inspection organs, preset best image check
condition, reduce the adjusting operation keys;
--One-click optimization function: preset several parameters adjusting focus on a button, a key to realize image fast
optimization;



--Reporting system: automatic report generation system, and can be full screen characters in both Chinese and English editor;
--Output interface:USB,DICOM interface;

--Measurement and calculation: B mode routine measurement:
--Distance, circumference, area, volume, angle, ratio, and stenos rate.
--M mode routine measurement: Heart rate, time, distance, speed, ratio, etc.

--Input power: ≤320V;
--Host weight: about 6kg;




--Gynecology measurement: Uterus, cervix, endometrial, ovary, follicular.
--Obstetrics measurement: EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables).
--Cardiology measurement: LV measurement.
--Urology measurement: Prostate volume, displacement volume, bladder capacity, and residual urine output.
--PW measurements: Time, speed, Heart Rate, RI, PI, etc.

--Image storage: Image storage, video storage, cine loop, disk storage capacity≥120G;
--Patient data: Medical record management, report inquiry and printing, image video output( HDD ,USB,Optional DVD-RW),built-in
ultrasound workstation;



--Other measurement: Slice volume measurement, hip joint angle measurement.

--Host appearance size: 370×382×90(length × width × height) (mm3).
--Package size:540×300×560(length × width × height) (mm3).





The color Doppler B ultrasound is use the Doppler signal processing, using the technology related to the autocorrelation technique to obtain the blood flow signals after color coding in real-time overlay on the 2 d image, namely the formation of color Doppler ultrasound blood flow images. The main advantages are:

1). Can quickly visual display two-dimensional plane distribution of the blood flow state;

2). Show the flow direction of the blood;

3). It is convenient to identify the arteries and veins;

4). It’s helpful to understand the nature of the blood flow;

5). It is convenient to understand the speed of the blood flow;

6). Can reliably found shunt and regurgitation;

7). Can make a quantitative analysis for the beam, width, length and area of the blood flow;

SGS Cardiology Color Ultrasound Scanner 220V Handheld Doppler Ultrasound Device 2



SGS Cardiology Color Ultrasound Scanner 220V Handheld Doppler Ultrasound Device 3



SGS Cardiology Color Ultrasound Scanner 220V Handheld Doppler Ultrasound Device 4



XF3800 Full Digital Color Doppler System



Main Parameter

15〞LED Player.

Scanning mode: Convex, Trans-vaginal, high-frequency linear array,

Micro-convex.

Modes: B.B/B.B/M.CFM.CFM/B.PDI.PDI/B.PW.
Big capacity lithium battery.
B/D dual-purpose: linear array: B/PWD; convex array: B/PWD;
Support the five languages.
Gray scale: 256 levels.
Depth display: ≥250mm;

IMT and PW automatic measurement function.
Self-motion optimize function.
Image multiplying factor.
Image mode: digital beam forming, tissue harmonic imaging.
picture in picture zoom in and zoom part function.
Image storage, video storage, cine loop, disk storage capacity≥160G;
Frequency conversion: 2MHz-12MHz(Depending on the probe)
16 kinds of pseudo color encoding can optional.
E-zoom: magnify 2 times of real time image.
Focus position: dynamic electron focusing.

Application Mode

Abdomen, gynecology, obstetrics, superficial organ, urologist, heart and user defined model 1-4, total ten models;

Output Interface

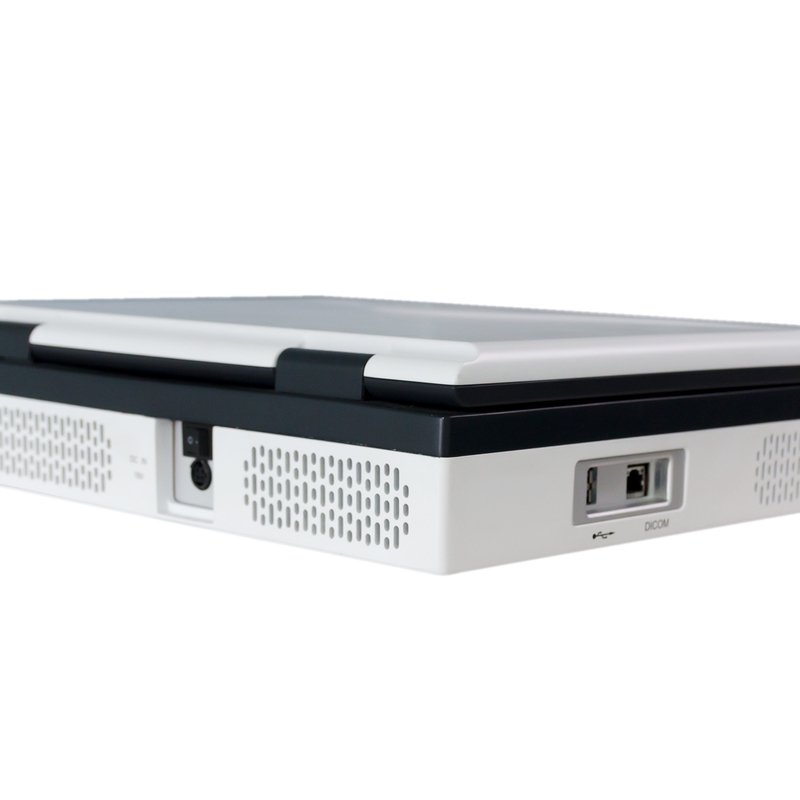

USBVideoHDMIVGADICOMELANFOOT SW port.

USB used to connect USB devices; Video output, connecting video printer or monitor; DICOME transfer the images; LAN

to connect the network cable;







Basic measurement B mode

In B mode, can carry out the basic measurement which shown in table 12.1:



Measure item Function
Distance Measure the distance between two points



Area

Measuring the region area(distance method,The elliptical distance method,

Ellipse method,tracing method)



Circumference

Measuring the region perimeter(distance method,The elliptical distance
method,Ellipse method,tracing method)



Volume

Measure the volume of target object(Trace length method, the elliptical length

Method, double plane method, diameter method and ellipse method)



Ratio

The length or region area of any two lines,And calculate the ratio of length and

region area

Angle Measuring the angle between two intersecting planes





SGS Cardiology Color Ultrasound Scanner 220V Handheld Doppler Ultrasound Device 5



SGS Cardiology Color Ultrasound Scanner 220V Handheld Doppler Ultrasound Device 6







SGS Cardiology Color Ultrasound Scanner 220V Handheld Doppler Ultrasound Device 7



We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.
