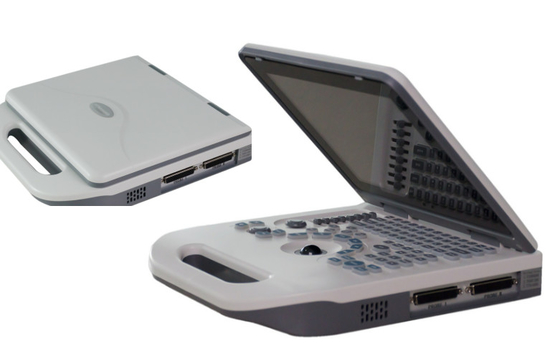

USG Scan Machine Ultrasound Device Li-Ion 6.5MHz R13

USG Scan Machine Ultrasound Device Li-Ion 6.5MHz R13

6.5MHz USG Scan Ultrasound Device

R13 USG Scan Machine

Ultrasound USG Scan Machine

Contact Us
Request A Quote
Product Details
Product Name:
Laptop Ultrasound USG Scanner
Application:
Hospital、clinic
Display Mode:
B、B/B、4B、B/M、M
Key Board:
Standard Key Board And Backlight Key
Probe Socket:
Dual Probe Sockets
Display:
LED Screen
Battery:
Li-ion Rechargeable
Measuring Function:
Distance,, Volume, Heart Rate,etc.
Payment & Shipping Terms
Minimum Order Quantity
5pcs
Product Description

USG Scan Machine Ultrasound Device Li-Ion 6.5MHz R13

parameter:
1. Mass memory, movie loop and permanent memory.
2. Radium cave button and silicon backlight button to choose;
3. Smart fluorescent track ball.
4. 8 segment TGC control. overall gain control
5. 2 USB ports, which can upgrade and expand printer functions;
6. 2 Probe connectors. Probe automatic recognition;
7. 2 SVGA video outputs and 21 PAL video outputs provide connection to video image recorders and image workstations. wait
8. The report page is automatically generated.
9. According to the user's pattern style preference, the parameters will be automatically set and saved, and the default value of Boot is
Parameters This default parameter can also be modified in the menu.

Xianfeng Laptop USG Scan Machine Ultrasound Device Li-Ion 6.5MHz R13 6



Model Black and White Ultrasound Machine For Human
Display Modes 3.5MHz/R60 convex array probe: B,B/B,4B,B+M,M
6.5MHz/R13 Dimpling array probe: B
7.5 MHz/L40 Line array probe: B
Image Mutiplying Factor

3.5MHz/R60 convex array probe:

x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0( 6modes)

x0.8, x2.0 (display penetration depth)

6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
E-zoom magnify 2 times of real time image
Dynamic Range 0~120dB ajustable
Focus Position 1,2,3 and 4-segments dynamic electron focusing
Image Processing γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
According to the user’s pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Frequency Conversion 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion
frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe
Measuring Function Distance,circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD,GS,CRL,FL,HL,OFD,TTD,AC), expected date of confinement and fetus weight, etc.
Annotation Function hospital name, patient’s name, age and gender 64 body marks (with probe’s position);
Full-screen character annotation; Real-time clock display
Puncture Guide 3.5MHz convex array probe can display puncture guide line in B mode
Gain Control 8 segments TGC and overall gain can be adjusted respectively
Image Polarity left and right flip, black and white flip, up and down flip
Capacity Cine Loop real time display 256 consecutive images which are memorized successively
Image Playback series playback or check one by one
Permanent Storage 128 images
Output Interface VGA video output offers connection to SVGA color display
PAL video output offers connection to PAL display and printer
video image recorder and image workstation, etc
USB Port Offers storing images in USB flash disk



USG Scan Machine Ultrasound Device Li-Ion 6.5MHz R13 1
