FSC 3D 4D MSK Portable Ultrasound Machines Scan Trans Vigianl

FSC 3D 4D MSK Portable Ultrasound Machines Scan Trans Vigianl

4d Portable Ultrasound Machines MSK

4d ultrasound scan machines Trans vigianl

FSC 3d 4d ultrasound machines

Place of Origin:

Made In China

Brand Name:

Xianfeng

Certification:

CE, ISO;FSC

Model Number:

XF218

Contact Us
Request A Quote
Product Details
Product Name:
Cheap Portable Ultrasound Scan Machine
Type:
Cheap Ultrasound Scan Machine
Application:
OB&GYN,ABD,MSK
Display:
10.4 Inch LED Player
Display Mode:
B、B/B、4B、B/M、M
Key Board:
Backlight Key
Probe Socket:
Dual Probe Sockets
Output Interface:
PAL Video Output,SVGA Video Output,USB
Gray Scale:
256 Levels
Optional Probe:
Convex,Linear,Trans-vigianl
OEM:
OEM ODM
Price:
Cheapest Durable
Payment & Shipping Terms
Minimum Order Quantity
3-5pcs
Price
1000USD
Packaging Details
Carton
Delivery Time
5-8days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Set Per Day
Product Description

Durable Cheap Portable ultrasound scan machine
Cheapest ultrasound scan machine portable with two probe sockets hot sale

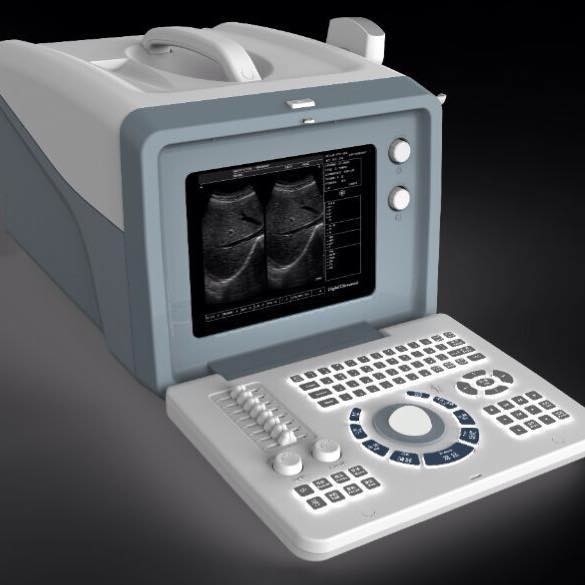

FSC 3D 4D MSK Portable Ultrasound Machines Scan Trans Vigianl 0


Display Modes:
3.5MHz/R60 convex array probe:B,2B,4B,B+M, M
5 MHz/R20 Dimpling array probe:
6.5MHz/R13 Dimpling array probe:
7.5 MHz/L40 Line array probe:

Image Mutiplying Factor:
3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0
6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5
7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5

E-zoom:magnify 2 times of real time image

Dynamic Range:0~120dB ajustable

Focus Position:1,2,3 and 4-segments dynamic electron focusing

Image Processing: γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.

Frequency Conversion:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion
frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe

Measuring Function:Distance,circumference/area (BPD,GS,CRL,FL,HL,OFD,TTD,AC), expected date of confinement and fetus weight, etc.
Annotation Function: hospital name, patient’s name, age and gender 64 body marks (with probe’s position);Full-screen character annotation; Real-time clock display

Puncture Guide:3.5MHz convex array probe can display puncture guide line in B mode

Gain Control:8 segments TGC and overall gain can be adjusted respectively

Image Polarity:left and right flip, black and white flip, up and down flip

Capacity Cine Loop: real time display 256 consecutive images

Image Playback:

Permanent Storage:128 images

Output Interface:VGA video output ;SVGA ;PAL ;

USB Port:Offers storing images in USB flash disk

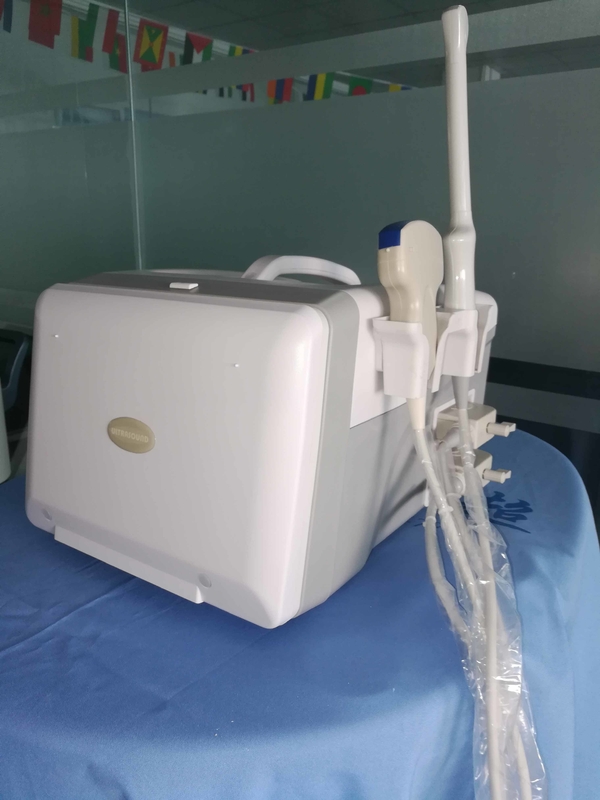

FSC 3D 4D MSK Portable Ultrasound Machines Scan Trans Vigianl 1
FSC 3D 4D MSK Portable Ultrasound Machines Scan Trans Vigianl 2

FSC 3D 4D MSK Portable Ultrasound Machines Scan Trans Vigianl 3
FSC 3D 4D MSK Portable Ultrasound Machines Scan Trans Vigianl 4

FSC 3D 4D MSK Portable Ultrasound Machines Scan Trans Vigianl 5

Features:

1. Mass memory , cine loop and permanent storage.
2. Radium Caved buttons and Silicon backlit buttons to be chosen;
3. Intelligent fluorescence trackball.
4. 8-segment TGC control. Overall Gain control
5. 2 USB ports , Upgraded and expandable printer function;
6. 2probe connectors. Probe automatic identfication;
7. 2SVGA video outputs and 21 PAL video outputs offer connection to video image recorder and image workstation. etc.
8. Report page is generated automatically.
9. According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.

FSC 3D 4D MSK Portable Ultrasound Machines Scan Trans Vigianl 6

Model XF218 CRT Portable Ultrasound Scanner
Probe 80 elements R60, 3.5MHz multi-frequency convex probe
Probe automatic identification
Focus 4 segments dynamic electron focusing
double encoder regulations
Frequency Conversion 2.5MHz/3.0MHz/3.5MHz/4.0MHz /5.0MHz
Image processing Variable aperture
dynamic apodization
Dynamic filter
Edge enhancement
Digital space-time filter
8γ corrections
16 pesudo colors
Line correlation
Frame correlation
point correlation
linear interpolation
According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Measurement and Note Distance
circumference/area(method of ellipse,method of loci)
heart rate
gestational weeks(BPD,GS,CRL,FL,HL,OFD,TTD,AC)
expected date of confinement and fetus weight,etc.
full-screen character annotation,with report page
Gray scale 256 levels
Gain Control 8 segments TGC and overall gain can be adjusted respectively
Permanment storage 128 images
Cine loop 256 frames or check one by one
Output interface 2 SVGA video outputs and 2 PAL video outputs
Extended Function Optional USD function,priter fuction,.5MHz trans-vaginal probe, 7.5MHz linear probe, 7.5MHz rectal probe, mobile trolley, video printer, and ulatrasonic image workstation, etc.


FSC 3D 4D MSK Portable Ultrasound Machines Scan Trans Vigianl 7



We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.



FSC 3D 4D MSK Portable Ultrasound Machines Scan Trans Vigianl 8



FSC 3D 4D MSK Portable Ultrasound Machines Scan Trans Vigianl 9



FSC 3D 4D MSK Portable Ultrasound Machines Scan Trans Vigianl 10



FSC 3D 4D MSK Portable Ultrasound Machines Scan Trans Vigianl 11



FSC 3D 4D MSK Portable Ultrasound Machines Scan Trans Vigianl 12



FSC 3D 4D MSK Portable Ultrasound Machines Scan Trans Vigianl 13



FSC 3D 4D MSK Portable Ultrasound Machines Scan Trans Vigianl 14



FSC 3D 4D MSK Portable Ultrasound Machines Scan Trans Vigianl 15
