Place of Origin:
Made In China
Brand Name:
Xianfeng
Certification:
CE, ISO
Model Number:
XF218

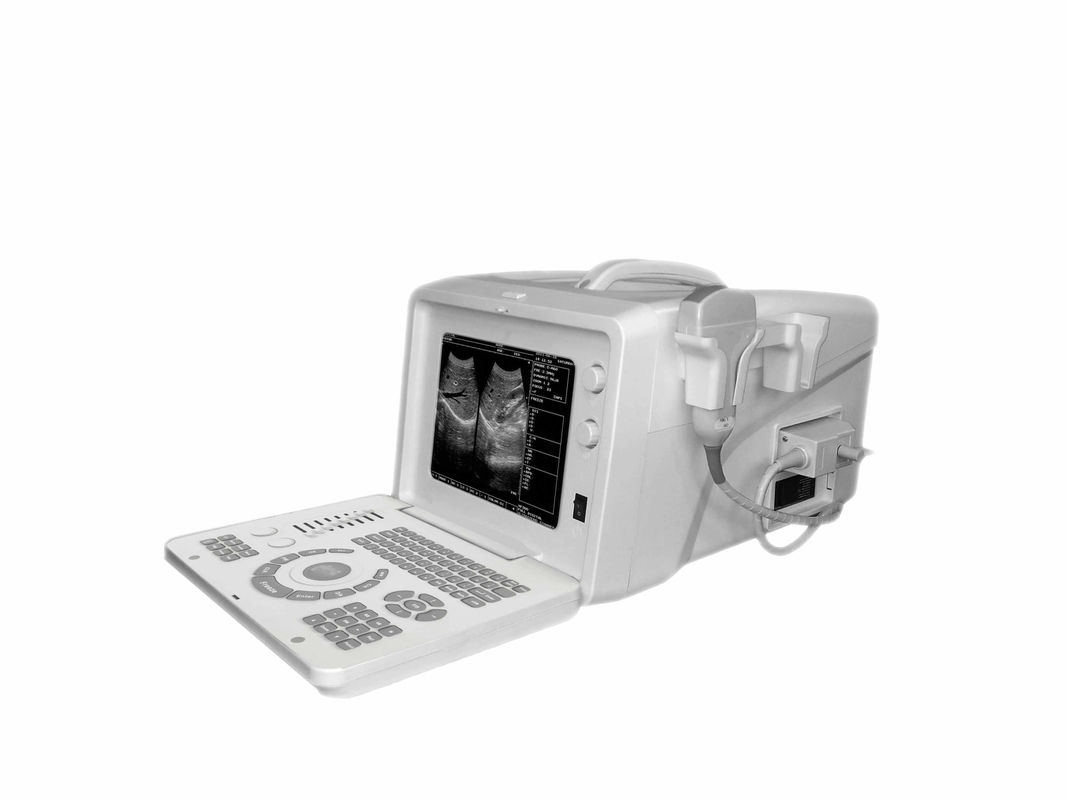

| Model | XF218 Portable Ultrasound Scanner |
| Probe | 80 elements R60, 3.5MHz multi-frequency convex probe |
| Probe automatic identification | |
| Focus | 4 segments dynamic electron focusing |
| double encoder regulations | |
| Frequency Conversion | 2.5MHz/3.0MHz/3.5MHz/4.0MHz /5.0MHz |
| Image processing | Variable aperture |
| dynamic apodization | |
| Dynamic filter | |
| Edge enhancement | |
| Digital space-time filter | |
| 8γ corrections | |
| 16 pesudo colors | |
| Line correlation | |
| Frame correlation | |
| point correlation | |
| linear interpolation | |
| According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue. | |
| Measurement and Note | Distance |
| circumference/area(method of ellipse,method of loci) | |
| heart rate | |
| gestational weeks(BPD,GS,CRL,FL,HL,OFD,TTD,AC) | |
| expected date of confinement and fetus weight,etc. | |
| full-screen character annotation,with report page | |
| Gray scale | 256 levels |
| Gain Control | 8 segments TGC and overall gain can be adjusted respectively |
| Permanment storage | 128 images |
| Cine loop | 256 frames or check one by one |
| Output interface | 2 SVGA video outputs and 2 PAL video outputs |
| Extended Function | Optional USD function,priter fuction,.5MHz trans-vaginal probe, 7.5MHz linear probe, 7.5MHz rectal probe, mobile trolley, video printer, and ulatrasonic image workstation, etc. |
We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.
