Product Details:
|
| Product Name: | Color Doopler Ultrasound Scanner Human | Dynamic Rang: | 0~120dB Adjustable |
|---|---|---|---|
| Display: | 15" LED Screen Displayer | E-zoom: | Magnify 2 Times Of Real Time Image |
| Optional Battery: | 1.5h Working Hours | Package Size: | 470mm(L)* 335mm(W)* 560mm(H) |
| Weight: | 11 KG | Focus Position: | Dynamic Electron Focusing |
| Type: | Color Doppler | Display Mode: | B,M,BM,BB,PW |
| Class: | 2 | System: | Windows 7 |
| High Light: | CE 3d doppler ultrasound scan,doppler ultrasound scanner 11KG,doppler scanner 11KG |
||

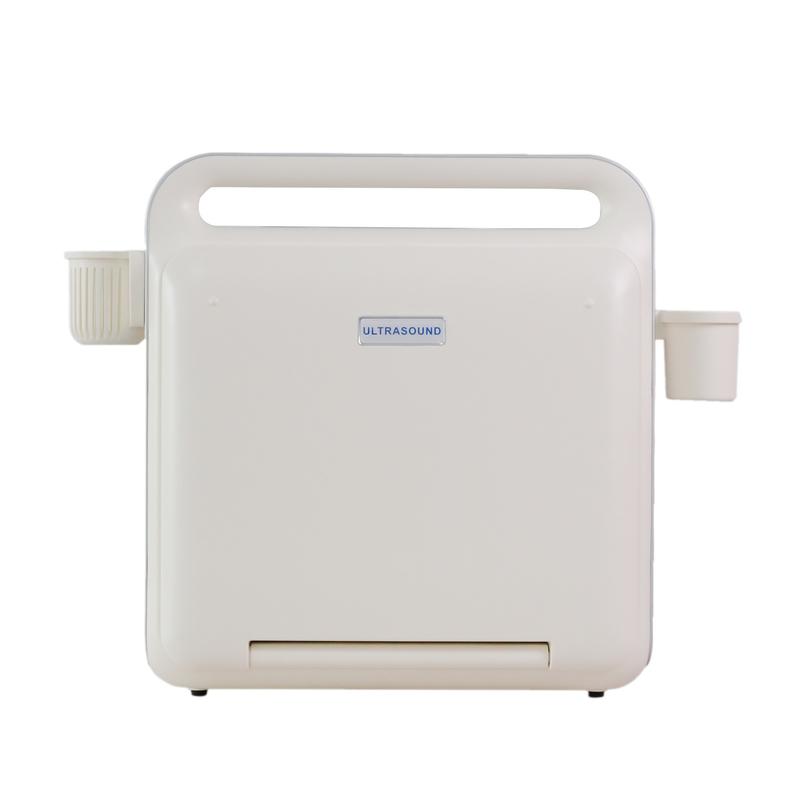

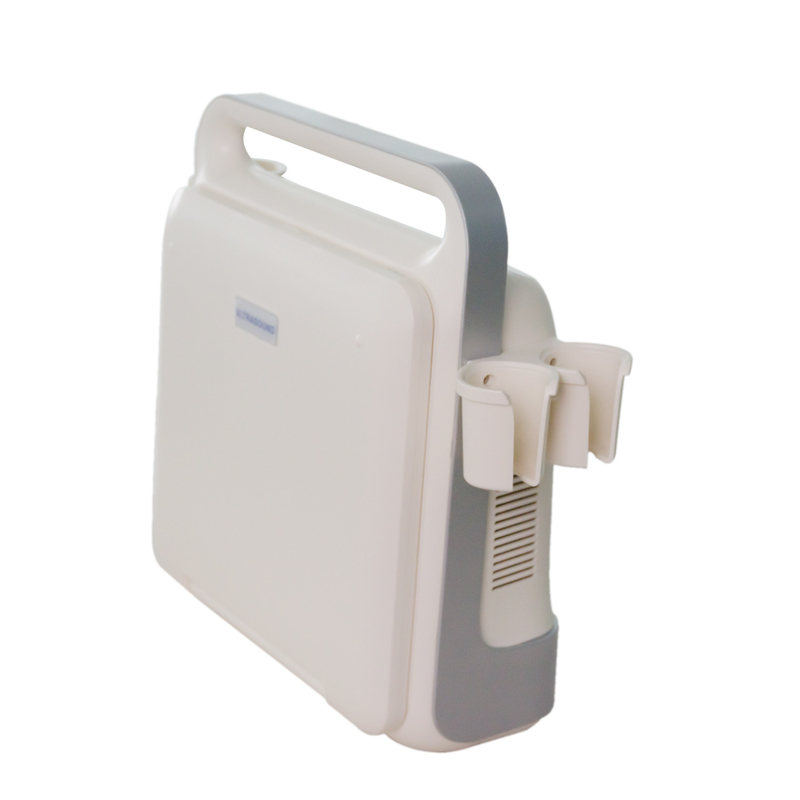

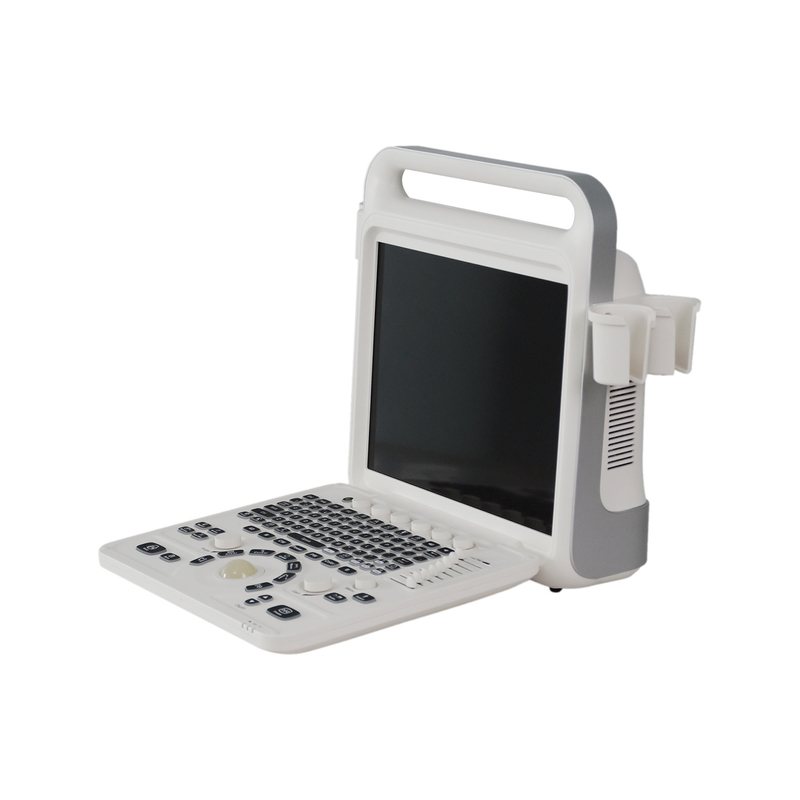

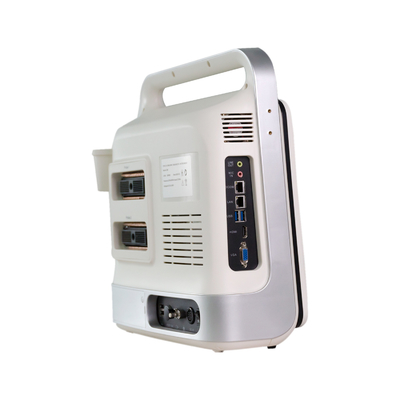

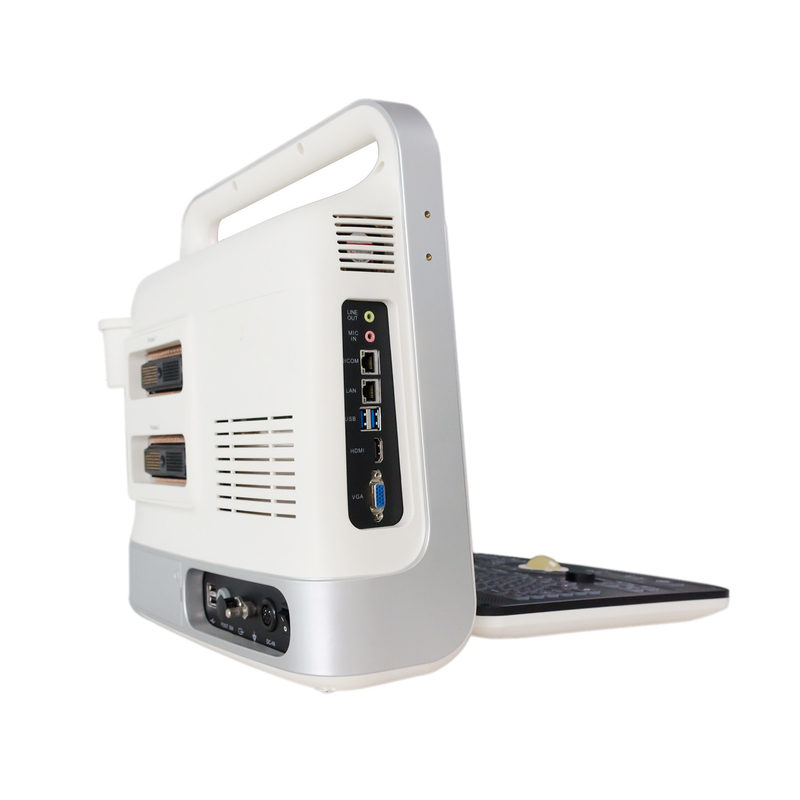

Human Portable Doppler Ultrasound Scanner
Specifications:
*B/2B/4B/M/CFM/PDI/PW
*THI(Tissue Harmonic Imaging)
*Free hand 3D imaging(Optional)
*4D Optional
*Automatic measurement and analysis vascular intima
*Extended imaging
*Compound Imaging
*Multimedia and peripheral devices:Compact Disc-Recordable,USB portable storage device.
*Digital Printer / Video Printer / Laser Printer / Ink-Jet Printer
*Memory Function:Image Storage,Video Storage,Cineloop(≥300 Fram),Solid disk storage space≥120G.
*Puncture guide line:All kinds of probes can register puncture guide line function.
*The puncture guide line Angle adjustable and can be pre-defined.
*Language:Chinese, English, Russian, Spanish, Portuguese, French.
Ultra Portable,Ultra flexible,Ultra affordable,Ultra durable,Ultra stable
General Specifications
Package Size and weight: 470mm(L)* 335mm(W)* 560mm(H)/ 11 KG
power source: 19V,10A DC IN, Support battery power
Optional battery:10Ah,14.4V.
Battery Operating Time:≥2 hours Standby time: ≥3.5 Hous
Displayer: 15 inch high brightness and high contrast LCD
Configuration probe
The configuration probe of the instrument showed as below:
| Type | Scan model | Frequency range | radius of curvature | Scan width | Scan angle | |
| TC60A | Convex | 2.0MHz~5.0MHz | R60mm | _ | 60° | |
| TL40A | Linear | 5.0MHz~12.0MHz | _ | L40mm | _ | |
| TC10A | Cavity | 5.0MHz~8.0MHz | R10mm | _ | 150° | |
| TC20A | Micro-convex | 2.0MHz~4.0MHz | _ | _ | 90° |
We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.
We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.
